Запчасти Case 750H (08-03) - HYDRAULICS EQUIPMENT (08) - HYDRAULICS

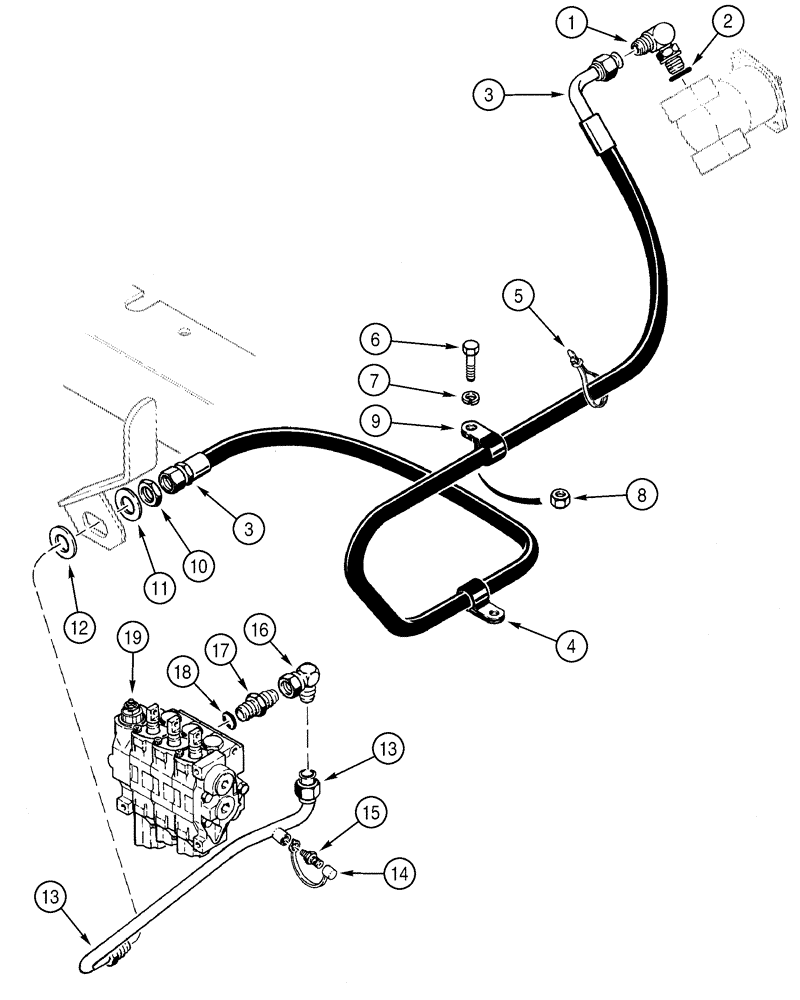

Схема запчастей Case 750H - (08-03) - HYDRAULICS EQUIPMENT (08) - HYDRAULICS
9
10
3
1
14
13
3
16
15
18
7
2
11
17
12
4
8
19
6
5
13

Артикул

Название

Примечание

Количество

Pump to Control Valve

1шт.

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

131935A1

HOSE

1920 mm (75-5/8 inch), Serial Range: Pump-Tube

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

D40471

CLAMP

1шт.

10

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

11

195-2116

WASHER,1.19" ID x 2" OD x 0.08" Thk

1-3/16 x 2 x 1/16

1шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

1шт.

13

R58083

TUBE ASSY.,0.75" OD

To Control Valve Inlet Port

1шт.

14

H434163

DUST CAP

1шт.

15

R55912

NIPPLE

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

Valve, Control, See Page(s) 8-53 - 8-59

1шт.

Выбрано товаров: 20
