Запчасти Case 750H (08-01) - RESERVOIR, HYDRAULIC COVERS (08) - HYDRAULICS

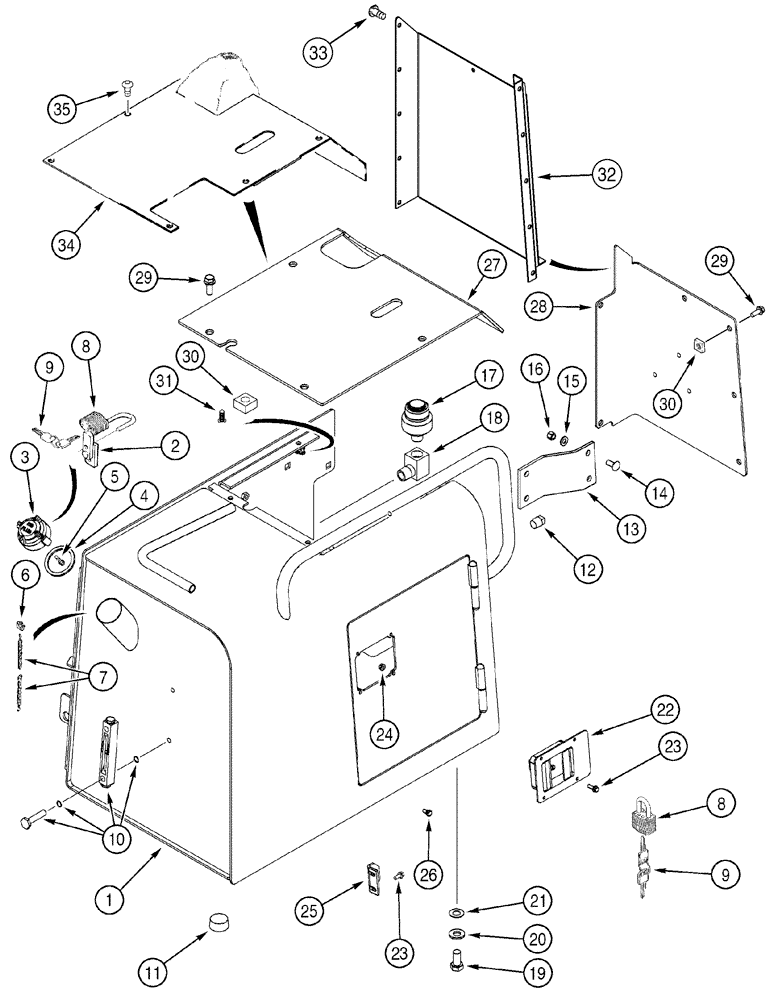

Схема запчастей Case 750H - (08-01) - RESERVOIR, HYDRAULIC COVERS (08) - HYDRAULICS
30
35
16
10
27
9
1
21
12
18
20
15
9
33
13
5
8
28
25
3
31
2
29
34
14
23
22
11
30
8
32
29
19
23
6
7
17
26
4

Артикул

Название

Примечание

Количество

1

324562A2

TANK

With Grab Handle, Models Without Cab, Includes 2

1шт.

1a

329067A2

TANK

Without Grab Handle, Models With Cab, Not Illustrated, Includes 2

1шт.

2

R46704

BRACKET

Fill Tube, Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

R46984

GASKET

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Includes 9

2шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Component Parts Not Serviced Separately

1шт.

11

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4, Use Loctite No. 592

1шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

12

217-452

1/2, Use Loctite No. 592

1шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

13

R58786

PLATE

1шт.

14

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1; 2

2шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

2шт.

17

R42714

BREATHER

Use Loctite No. 592

1шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

18

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

3/4 PT

1шт.

19

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

21

D44330

SHIM,.031" Thk

4шт.

22

R56221

LATCH

1шт.

23

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

25

R56397

LARGE PLATE

PLATE, LARGE

1шт.

26

A161780

BUMPER

2шт.

27

324590A1

COVER

Top

1шт.

28

R58147

COVER

Front

1шт.

29

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

10шт.

30

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

3/8

8шт.

31

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

5шт.

Models With Cab

1шт.

32

1999352C1

COVER

Front

1шт.

33

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

14шт.

34

1999551C1

COVER

Top, See Page(s) 8-47, Includes 32 - 38, See Page(s) 8-51, Includes 33 - 43

1шт.

35

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

6шт.

Выбрано товаров: 41
