Запчасти Case 750H (07-01) - PEDALS AND LINKAGE BRAKE (07) - BRAKES

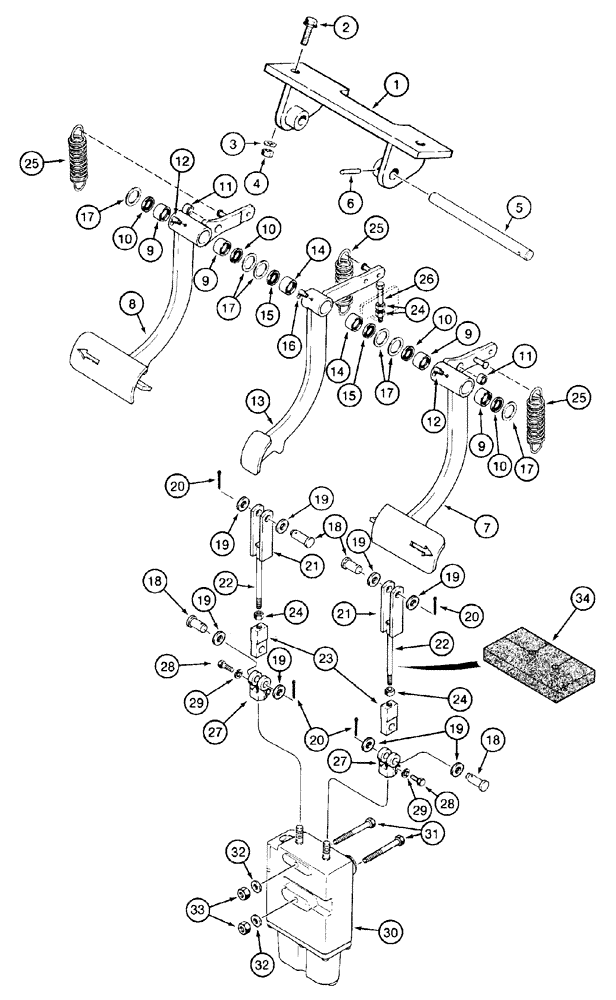

Схема запчастей Case 750H - (07-01) - PEDALS AND LINKAGE BRAKE (07) - BRAKES
12
19
27
9
10
32
17
17
19
2
8
26
22
11
25
25
16
28
21
14
20
20
19
18
18
15
34
32
19
24
9
14
1
12
10
5
28
4
13
20
25
19
31
24
18
10
30
22
27
29
29
9
15
10
33
17
24
7
3
21
6
9
19
19
17
11
23

Артикул

Название

Примечание

Количество

1

R58458

BRACKET

Mounting

1шт.

2

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

R58225

SHAFT

Brake Pedal

1шт.

6

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

1/4" x 1 3/8", Slotted

1шт.

7

R58357

PEDAL

Brake, Right Hand, Includes 9 - 12

1шт.

8

R58358

PEDAL

Brake, Left Hand, Includes 9 - 12

1шт.

9

L31166

NEEDLE BEARING

2шт.

10

257941A1

SEAL

2шт.

11

L13071

BUSHING

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

1шт.

13

R58360

PEDAL

Brake, Center, Includes 14 - 16

1шт.

14

L31166

NEEDLE BEARING

2шт.

15

257941A1

SEAL

2шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

1шт.

17

D35268

SHIM,1/32" Thk

1шт.

18

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

4шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

8шт.

20

432-816

COTTER PIN,1/8" x 1"

4шт.

21

R58362

FORK

2шт.

22

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

3/8 x 6; 2

2шт.

23

R58461

LINK

Adjustable

2шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

25

R36912

SPRING

3шт.

26

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

Pedal Adjustment

1шт.

27

384083R2

YOKE

2шт.

28

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

5/16 x 1-1/8

2шт.

29

492-11031

LOCK WASHER,5/16"

2шт.

30

1272218C1

VALVE

See Page(s) 7-13

1шт.

31

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3/8 x 3-3/4

2шт.

32

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

33

231-1446

NUT,3/8" - 16, Gr 5

2шт.

34

103583A1

LARGE PLATE

PLATE, LARGE , Brake Valve, Cab Models

1шт.

Выбрано товаров: 34
