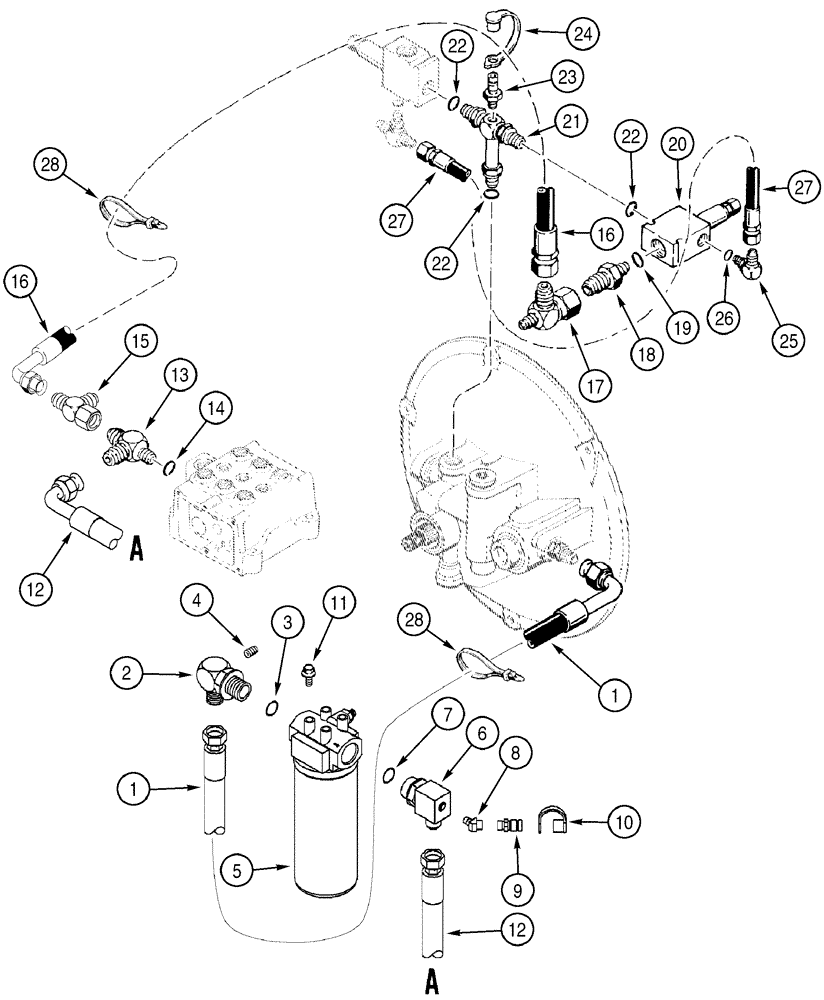

Запчасти Case 750H (06-16) - HYDRAULICS CRAWLER CIRCUIT - TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
Torque, Serial Range: Converter-Transmission
1шт.
1
R56466
HOSE ASSY.
1481 mm (58-5/16 inch)
1шт.
2
R49557
FITTING
Includes 3
1шт.
4
86539484
PIPE PLUG,Sq Hd, 1/8"-27, NTPF
1/8 PT
1шт.
5
R48993
FILTER
Transmission Oil, See Page(s) 6-75
1шт.
6
364562A1
ELBOW
Includes 7
1шт.
8
217-1084
45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male
1шт.
9
H434164
COUPLING
Diagnostic
1шт.
10
H434163
DUST CAP
1шт.
11
160-101
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd
3/8 x 3/4; 8
4шт.
12
364352A1
HOSE
1245 mm (49 inch), Filter to Transmission Control Valve
1шт.
13
218-5594
TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12
Includes 14
1шт.
14
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
15
218-5219
TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br
1шт.
16
364599A1
HOSE ASSY.
1270 mm (50 inch), Transmission Control Valve to Relief Valve
1шт.
17
218-5488
TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12
1шт.
18
218-5353
HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring
Includes 19
1шт.
19
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Torque, Serial Range: Converter-Transmission
1шт.
20
R57582
VALVE
Includes 21
1шт.
20a
S301087
SEAL KIT
External, Not Illustrated
1шт.
21
R57585
FITTING
Includes 22
1шт.
22
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
3шт.
23
H434164
COUPLING
Diagnostic
1шт.
24
H434163
DUST CAP
1шт.
25
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Includes 26
1шт.
27
L19294
HOSE,0.38" ID x 18.75", SAE 100R1
476 mm (18-3/4 inch)
1шт.
28
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
1шт.
26
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 31
