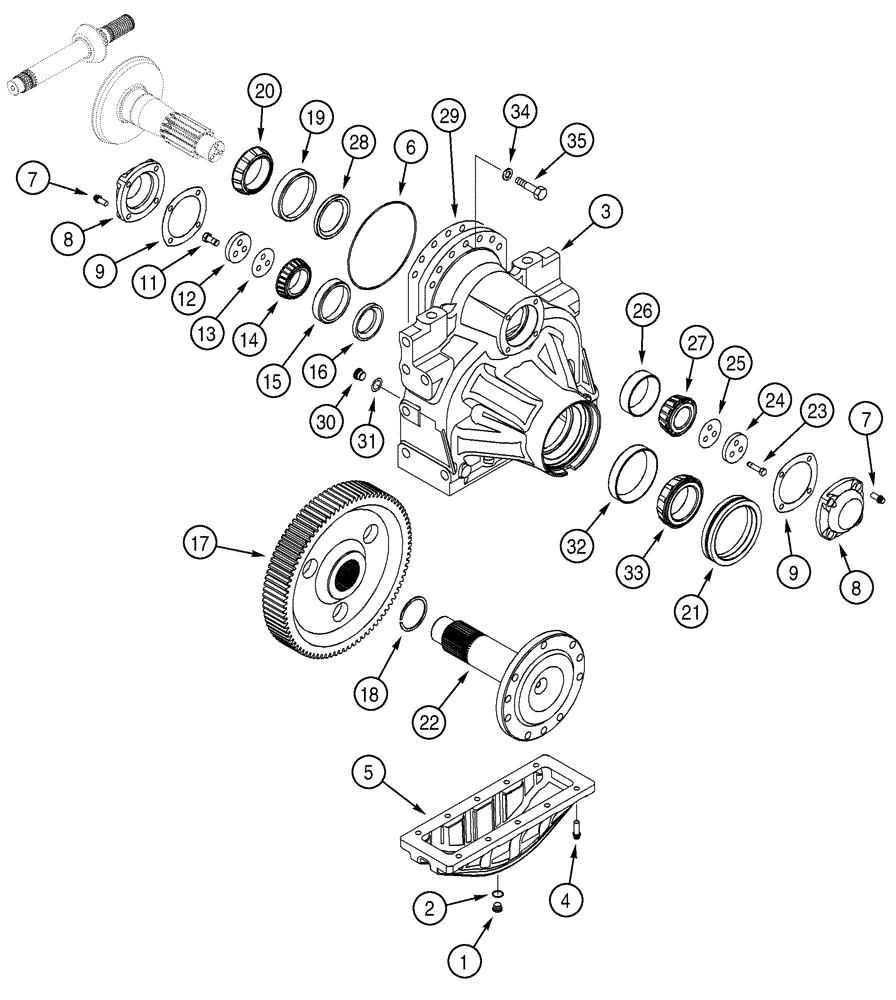

Запчасти Case 750H (06-09) - TRANSMISSION FINAL DRIVE - 1524MM ( 60" ) GUAGE LONG TRACK ( LT) MODELS (06) - POWER TRAIN

1524 mm (60 inch) Gauge Long Track (LT) Models

1шт.

329835A3

TRANSMISSION

Includes, For Complete Assembly, See Page(s) 6-9 - 6-59, 7-9, 7-11

1шт.

329848A2

Final Drive, Consists Of 1 - 33

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

329850A2

HOUSING

1шт.

4

566-203

12 PT SCREW,M10 x 35mm, Cl 12.9

M12 x 35; 12.9

10шт.

5

1348875C2

COVER

Lower, Use Sealant B17555

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

6

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

1-1/16 ID x 3/32

1шт.

7

566-202

12 PT SCREW,M10 x 25mm, Cl 12.9

M12 x 22; 12.9

8шт.

8

G105822

COVER ASSY

2шт.

9

G101598

GASKET

2шт.

11

608-14030

BOLT,Hex, M14 x 30mm, Cl 10.9

M14 x 30; 10.9

3шт.

12

1997099C1

PLATE

Bearing Retainer, Drive Shaft

1шт.

13

R21741

SHIM,.005" Thk

(0.127 mm)

1шт.

13

R21742

SHIM,.007" Thk

(0.178 mm)

1шт.

13

R21743

SHIM,.020" Thk

(0.508 mm)

1шт.

1524 mm (60 inch) Gauge Long Track (LT) Models

1шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

329848A2

Continued From Previous Page

2шт.

14

630203C91

TAPERED BEARING

Drive Shaft, Inner

1шт.

15

L35931

BEARING CUP

Drive Shaft, Inner

1шт.

16

G100325

SPACER

1шт.

17

329859A1

GEAR

86T, Final Drive

1шт.

18

101-11325

SNAP RING,#325, 3.070, Ext

No. 325

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Bevel Gear, Inner

1шт.

20

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

Bevel Gear, Inner

1шт.

21

329887A1

SEAL

1шт.

22

329883A1

SHAFT

Final Drive

1шт.

23

608-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

M12 x 30; 10.9

3шт.

24

1997100C1

PLATE

Bearing Retainer, Bevel Gear

1шт.

1524 mm (60 inch) Gauge Long Track (LT) Models

1шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

329848A2

Continued From Previous Page

2шт.

25

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

25

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

25

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

26

895366C1

BEARING CUP

Bevel Gear, Outer

1шт.

27

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

Bevel Gear, Outer

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

Housing, Bevel Gear

1шт.

29

360376A1

SHIM

0,076 mm (0,003 in)

1шт.

29

360375A1

SHIM

0,127 mm (0,005 in)

1шт.

29

360377A1

SHIM

0,508 mm (0,02 in)

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

Includes 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

Drive Shaft, Outer

1шт.

33

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

Drive Shaft, Outer

1шт.

34

608-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

M16 x 50; 10.9, Use Loctite No. 271

22шт.

B17500

LOCTITE

Loctite, No. 271, 6 ml

1шт.

35

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

22шт.
