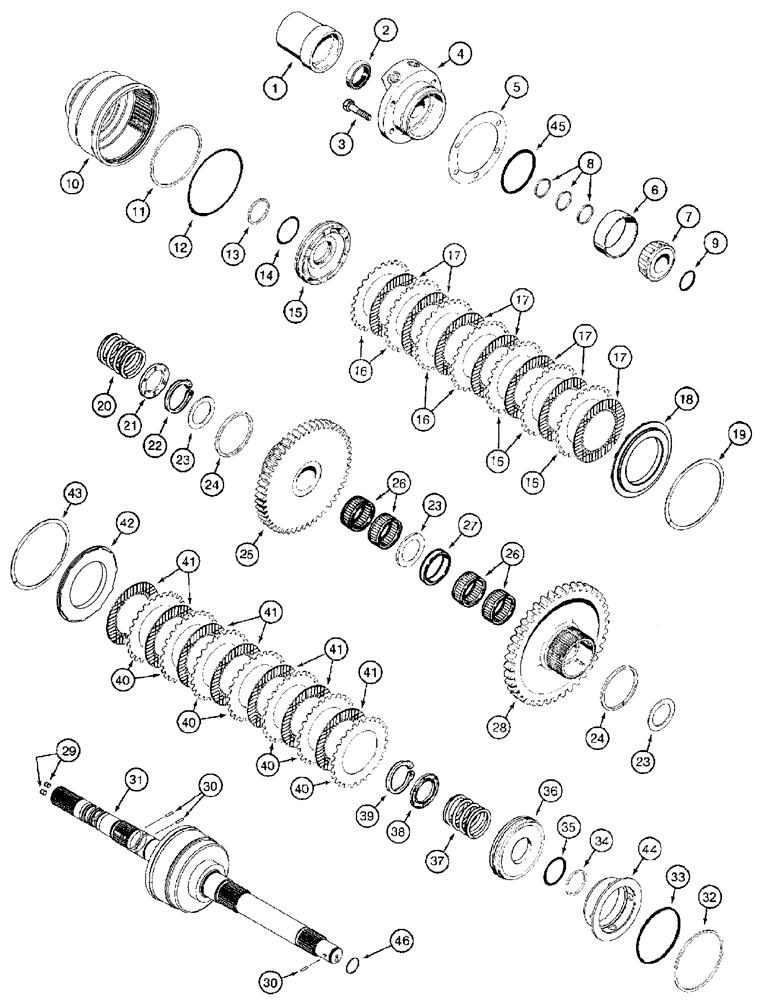

Запчасти Case 750H (06-07) - TRANSMISSION CLUTCHES, FORWARD/REVERSE AND MAINSHAFT (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes 1 - 44, For Complete Assembly, See Page(s) 6-9 - 6-59, 7-9, 7-11

1шт.

1

G101696

PROTECTIVE COVER

Main Shaft, Rear

1шт.

2

A54107

OIL SEAL,38.1mm ID x 8mm Thk

1шт.

3

608-10030

BOLT,Hex, M10 x 30mm, Cl 10.9

M10 x 30; 10.9

5шт.

4

1997065C1

SEAL RETAINER

1шт.

5

1997066C1

SHIM

0,076 mm (0,003 in)

1шт.

5

1997067C1

SHIM

0,178 mm (0,007 in)

1шт.

5

1997068C1

SHIM

0,254 mm (0,01 in)

1шт.

6

G109317

BEARING CUP

Rear

1шт.

7

1342259C1

ROLLER BEARING,38.113 mm ID x 30.467 mm

Rear

1шт.

8

1348976C1

SEAL

3шт.

9

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

1шт.

329880A1

Forward, Consists Of 10 - 19

1шт.

10

329864A1

HUB

Includes Hub

1шт.

11

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

1шт.

12

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

13

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

1шт.

14

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32

1шт.

15

329888A1

PISTON

1шт.

16

345335A1

PLATE

Separator

7шт.

17

345334A1

FACING

Friction

7шт.

18

329895A1

PLATE

1шт.

19

329907A1

RING

1шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

20

A188080

SPRING

1шт.

21

A188044

RETAINER

1шт.

22

100-16175

SNAP RING,#175, Ext

1шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

3шт.

24

1981351C1

SEALING RING

81 x 90 x 4,5 mm

2шт.

24

1995174C1

SEALING RING

SEALRING , 87 x 90 x 3 mm, Optional

2шт.

25

1997062C1

GEAR

51 T

1шт.

26

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

27

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

1шт.

28

1997061C1

GEAR

56 T, Reverse Clutch

1шт.

329867A3

Main, With Reverse Clutch, Consists Of 29 - 44

1шт.

29

1345887C1

PLUG

9 mm

2шт.

30

38-3605

PIN,3/32" x 5/16", Coiled

3шт.

31

329866A3

SHAFT

1шт.

32

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

1шт.

33

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

34

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

1шт.

35

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

36

329889A1

PISTON

1шт.

37

A188080

SPRING

1шт.

38

A188044

RETAINER

1шт.

39

100-16175

SNAP RING,#175, Ext

1шт.

40

345335A1

PLATE

Separator

7шт.

41

345334A1

FACING

Friction

7шт.

42

329895A1

PLATE

1шт.

43

329907A1

RING

1шт.

44

328750A1

SLEEVE

Lubrication

1шт.

45

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

46

1981335C1

SEAL

1шт.
