(04-23) - WINDSHIELD WASHER - WIPER, FRONT

Запчасти Case 750H (04-23) - WINDSHIELD WASHER - WIPER, FRONT (04) - ELECTRICAL SYSTEMS

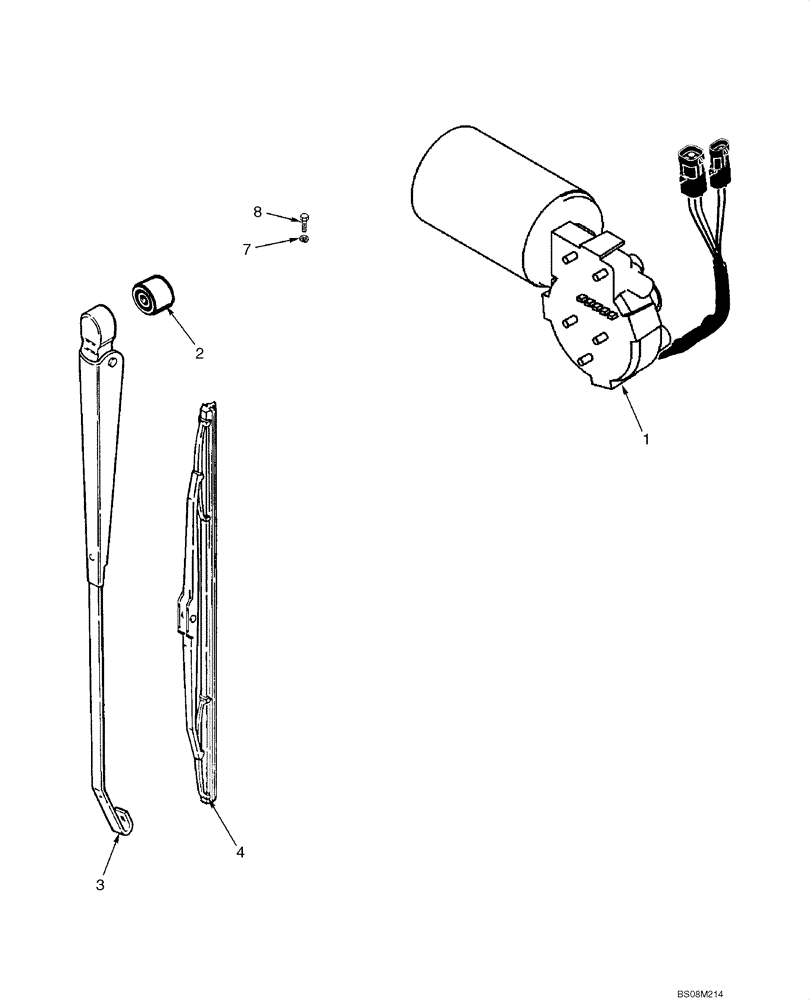

Схема запчастей Case 750H - (04-23) - WINDSHIELD WASHER - WIPER, FRONT (04) - ELECTRICAL SYSTEMS
3
8
2
7
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

386928A1

WINDSHIELD WIPER

12V, Windshield Wiper Front, Includes Hardware, Component Parts Not Available at Time of Printing

1шт.

2

386931A1

SPACER

1шт.

3

386929A1

WIPER BLADE

BLADE, WIPER Front Wiper

1шт.

4

386930A1

WIPER BLADE

BLADE, WIPER 450 mm; Replaces 123024A1, 500 mm; Used on Some Models

1шт.

7

492-11025

LOCK WASHER,1/4"

3шт.

8

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.
