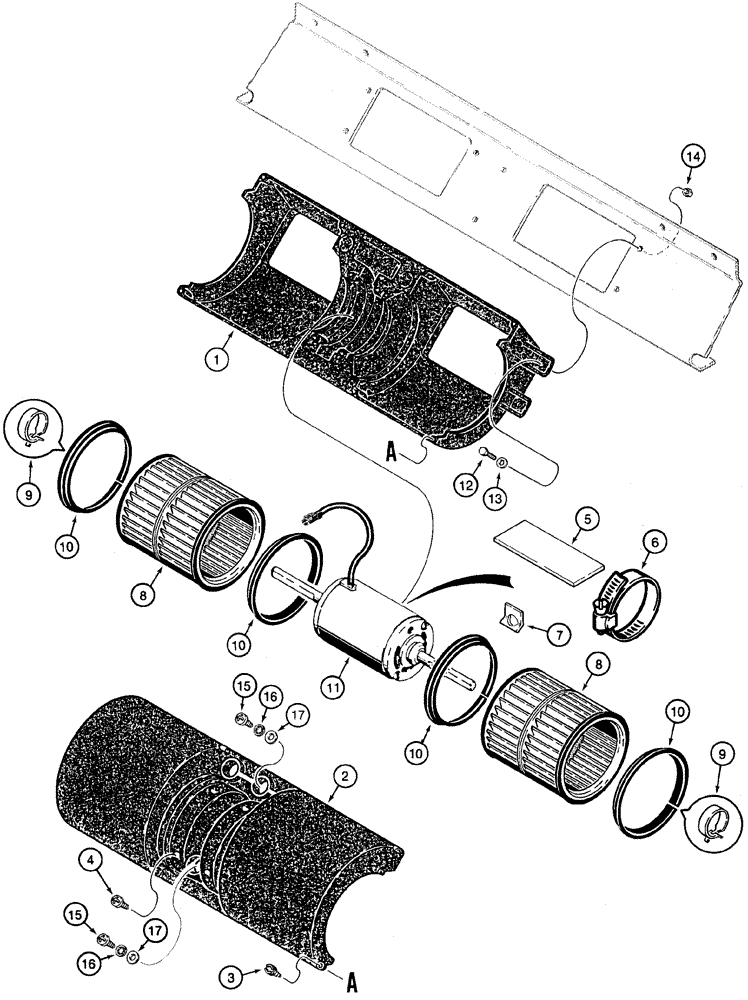

Запчасти Case 750H (04-21) - BLOWER CONDENSER, AIR CONDITIONING (04) - ELECTRICAL SYSTEMS

Above Cab Roof

1шт.

1990972C1

BLOWER,12V, Assembly, Air Conditioning

Consists Of 1 - 11, Not Available as An Assembly, Order Components

2шт.

1

F64740

HOUSING

Lower

1шт.

2

F64741

HOUSING

Upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

5

1999608C1

GASKET

2шт.

6

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.

7

R51563

CLIP,ELECTRICAL

1шт.

8

F64935

BLOWER,Fan

2шт.

9

F64936

CLAMP

2шт.

10

F64739

RING

4шт.

11

R54415

MOTOR, ELECTRIC

1шт.

12

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

10-24 X 3/4 HEX HD ZND

8шт.

13

495-31022

WASHER,#10

8шт.

14

230-42409

NUT,#10-24, GA

No. 10

8шт.

15

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

2шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

17

495-31022

WASHER,#10

If Used

2шт.

Note:See page 4-41, item 39, for cab air conditioning, Serial Range: harness-blowers.

1шт.

Nota: Voir page 4-41, article 39, pour le faisceau reliant le climatiseur de la cabine à la soufflante.

1шт.

Nota: Ver las páginas 4-41, artículo 39, para el mazo de cables del aire acondicionado de la cabina a los ventiladores.

1шт.
