Запчасти Case 750H (04-16) - HARNESS, CAB PANEL, CONTROL (04) - ELECTRICAL SYSTEMS

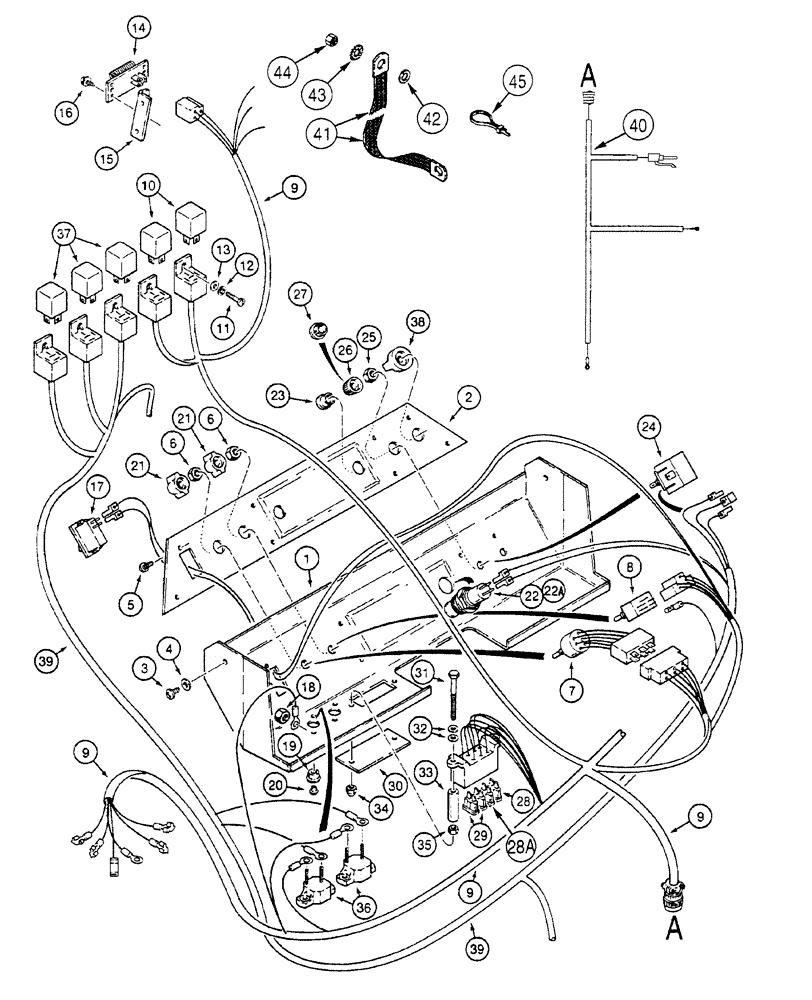

Схема запчастей Case 750H - (04-16) - HARNESS, CAB PANEL, CONTROL (04) - ELECTRICAL SYSTEMS
23
42
9
7
34
26
32
2
3
22
35
5
9
25
19
38
21
27
28
14
21
39
44
39
18
4
22a
15
31
40
37
20
28a
10
11
9
41
6
24
9
17
1
12
29
8
13
43
45
36
6
16
30
33

Артикул

Название

Примечание

Количество

1

1999459C1

BRACKET

1шт.

2

198996A1

BEZEL

1шт.

3

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

6шт.

4

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

6шт.

5

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

8шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

2шт.

7

92115C2

SWITCH

Windshield Wiper Front - Rear

1шт.

8

168822C2

SWITCH

Blower

1шт.

9

1546444C1

HARNESS

Lamps

1шт.

10

1983394C2

RELAY

30 amp

2шт.

11

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

12

492-11010

LOCK WASHER,#10

2шт.

13

495-31022

WASHER,#10

2шт.

14

F44900

RESISTOR

12V

1шт.

15

R47848

SUPPORT

Mounts To Blower Housing

1шт.

16

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10 x 1/2

4шт.

17

F45393

SWITCH

1шт.

18

232-1446

NUT,3/8"-16, GC

Harness To Ground Stud

1шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

5/8, If Used

2шт.

20

353-421

PLUG,Dome, .187" hole, Nylon

If Used

4шт.

21

111282C1

KNOB

Blower And Wiper

2шт.

22

121815C91

LAMP

Includes 22A

1шт.

22a

200557H1

BULB,C2V, #1815, 14V

No. 1815

1шт.

23

353-407

PLUG,Dome, .687" hole, Nylon

If used

1шт.

24

A187954

SWITCH

SWITCH, Air Conditioning

1шт.

25

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

26

1999846C1

KNOB

Air Conditioning

1шт.

27

1999574C1

PLUG

1/2, If Used

1шт.

28

A149803

FUSE,25 Amp

25 amp

1шт.

28a

A149801

FUSE,Lt Blue, 15 Amp

15 amp

1шт.

29

A149800

FUSE,10 Amp

10 amp

2шт.

30

1999420C1

COVER

1шт.

31

1999829C1

SCREW

No. 10 x 2-3/4

2шт.

32

495-31022

WASHER,#10

4шт.

33

1999515C1

SPACER

2шт.

34

129-642

CROWN NUT,Crown, #10-24

No. 10

2шт.

35

230-42409

NUT,#10-24, GA

No. 10

2шт.

36

1546447C1

BREAKER

20A, Air Conditioning Condenser Blowers

2шт.

37

1983394C2

RELAY

30 amp, Heat And Air Conditioning

3шт.

38

1994720C1

KNOB

Heater Control

1шт.

39

1546446C1

HARNESS

Air Conditioning

1шт.

39a

R58601

HARNESS

High Pressure Switch and Compressor To Main Cab Harness, Not Illustrated, See Page(s) 9-99

1шт.

39b

232948A1

SWITCH, A/C HIGH PRE

Not Illustrated, See Page(s) 9-99

1шт.

40

360084A1

HARNESS

Cab Power Transfer

1шт.

41

D73383

STRAP

1шт.

42

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

43

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

44

L127555

NUT,Hex, 3/8" - 16

3/8

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

Выбрано товаров: 49
