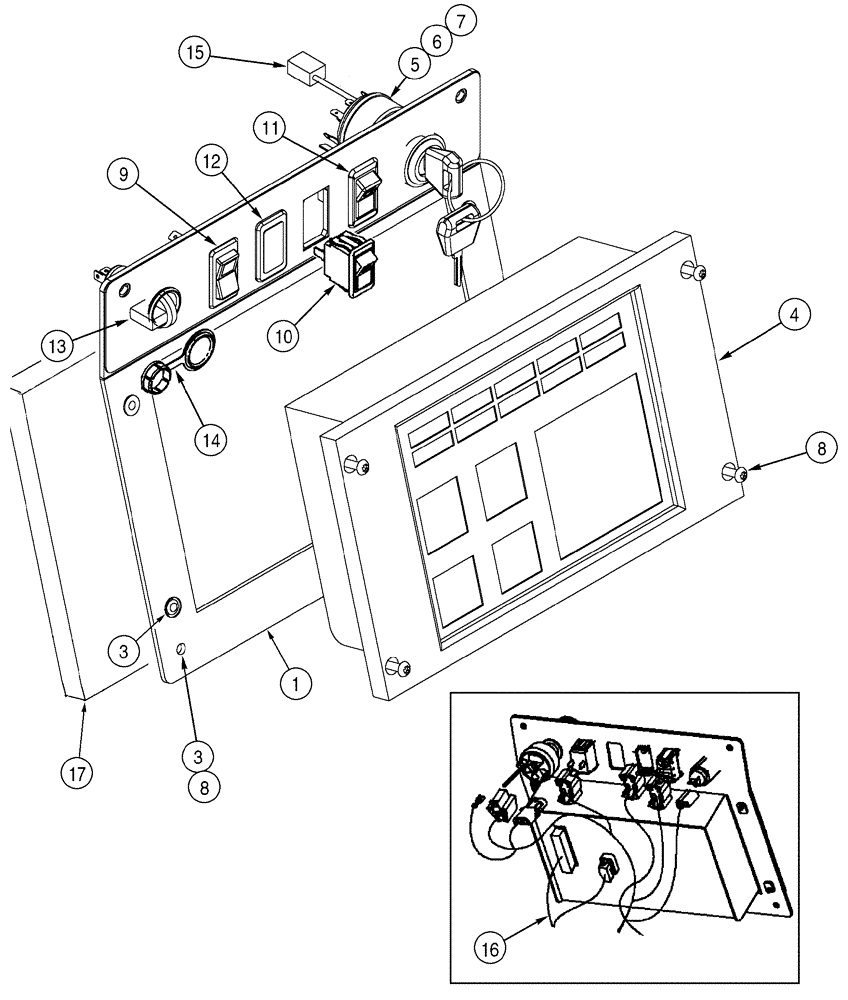

Запчасти Case 750H (04-06) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

331706A1

PANEL ASSY.

1шт.

2

331709A1

DECAL

Instrument Panel, Not Illustrated, See Page(s) 9-105

1шт.

3

D122634

ISOLATOR,12.7mm OD x 14.1mm L

8шт.

4

337514A2

CLUSTER

See Page(s) 4-21

1шт.

282775A1

IGNITION SWITCH

Consists Of 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Switch, Ignition

1шт.

6

A77314

NUT

1шт.

7

1964831C2

IGNITION KEY

Padded

1шт.

8

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

8шт.

9

133711A1

LIGHT SWITCH

Lamps, Drive

1шт.

10

223838A1

CONTROL

Cold Start, If Equipped

1шт.

11

331711A1

SWITCH

No Start

1шт.

12

86000535

PLUG,1.427" x .62", Plastic

Switch Opening, If equipped

2шт.

13

283779A1

POWER SOCKET,12V

1шт.

14

283781A1

CAP,Polyester Elastomer

Outlet, Power Plug

1шт.

15

D137820

HARNESS

Ignition Switch To Ground

1шт.

16

338943A1

HARNESS

Front

1шт.

17

383652A1

FOAM

1шт.
