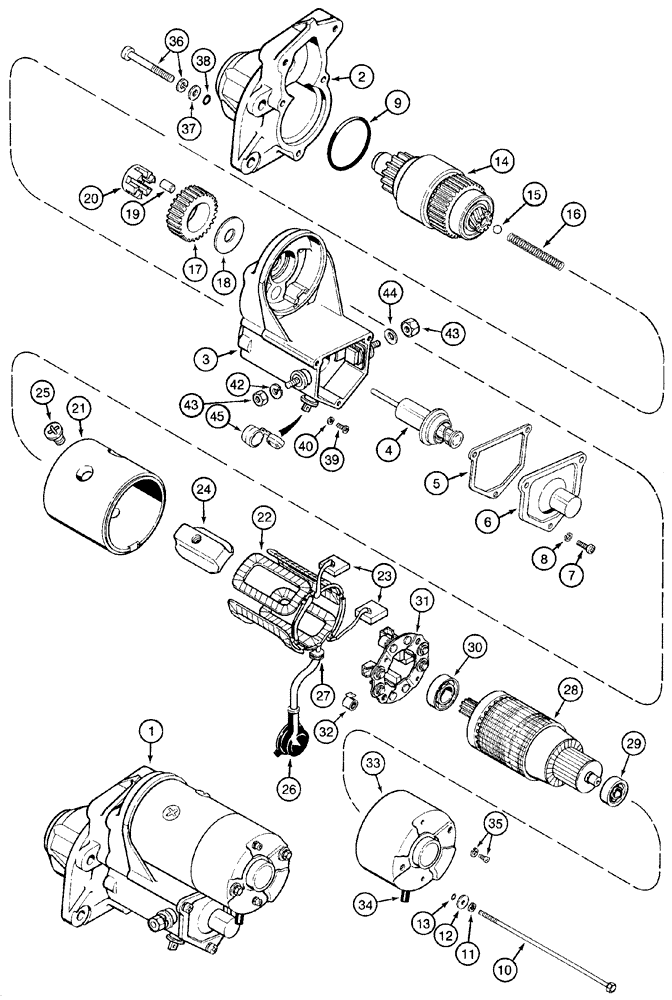

Запчасти Case 750H (04-01) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

Consists Of 2 - 45

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

1шт.

3

104588A1

SOLENOID

Consists Of 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Cover Sheet

1шт.

7

NSS

NOT SOLD SEPARAT

Screw

3шт.

8

NSS

NOT SOLD SEPARAT

Washer

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47243

BOLT

Consists Of 10 - 13

2шт.

10

A47128

BOLT

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

1шт.

14

104587A1

CLUTCH

1шт.

15

211-1311

BALL,11/32" Dia

200, CRS

1шт.

16

A47232

SPRING

2-13/16

1шт.

17

A47233

GEAR

1шт.

18

A47234

WASHER

1шт.

19

A47235

ROLLER BEARING

5шт.

20

A47236

RETAINER

1шт.

A47240

HOUSING

Consists Of 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

NSS

NOT SOLD SEPARAT

Coil Assy

1шт.

23

NSS

NOT SOLD SEPARAT

Brush

2шт.

24

NSS

NOT SOLD SEPARAT

Shoe

4шт.

25

NSS

NOT SOLD SEPARAT

Screw

4шт.

26

NSS

NOT SOLD SEPARAT

Boot

1шт.

27

A47241

PLATE

1шт.

1987559C1

STARTING MOTOR

Continued From Previous Page

1шт.

28

A47242

ARMATURE

Includes 29, 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator End

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

Drive End

1шт.

31

A47239

HOLDER

Includes 32

1шт.

32

A47249

SPRING

4шт.

33

A47237

FRAME

Commutator End

1шт.

34

A47238

COVER

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

With Washer

2шт.

A47230

BOLT

Consists Of 36 - 38

3шт.

36

A47129

CAPTIVE WASHER SCREW

With Washer

1шт.

37

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

38

A47130

O-RING

1шт.

39

A46950

SCREW,M5 x 0.8 x 0.8mm

M5 x 8

1шт.

40

892-11005

LOCK WASHER,M5

1шт.

42

892-11010

LOCK WASHER,M10

1шт.

43

825-1410

NUT,M10, Cl 8

1шт.

44

A10454

WAVE WASHER

1шт.

45

104589A1

BUSHING

1шт.
