Запчасти Case 750H (03-05) - FUEL TANK (03) - FUEL SYSTEM

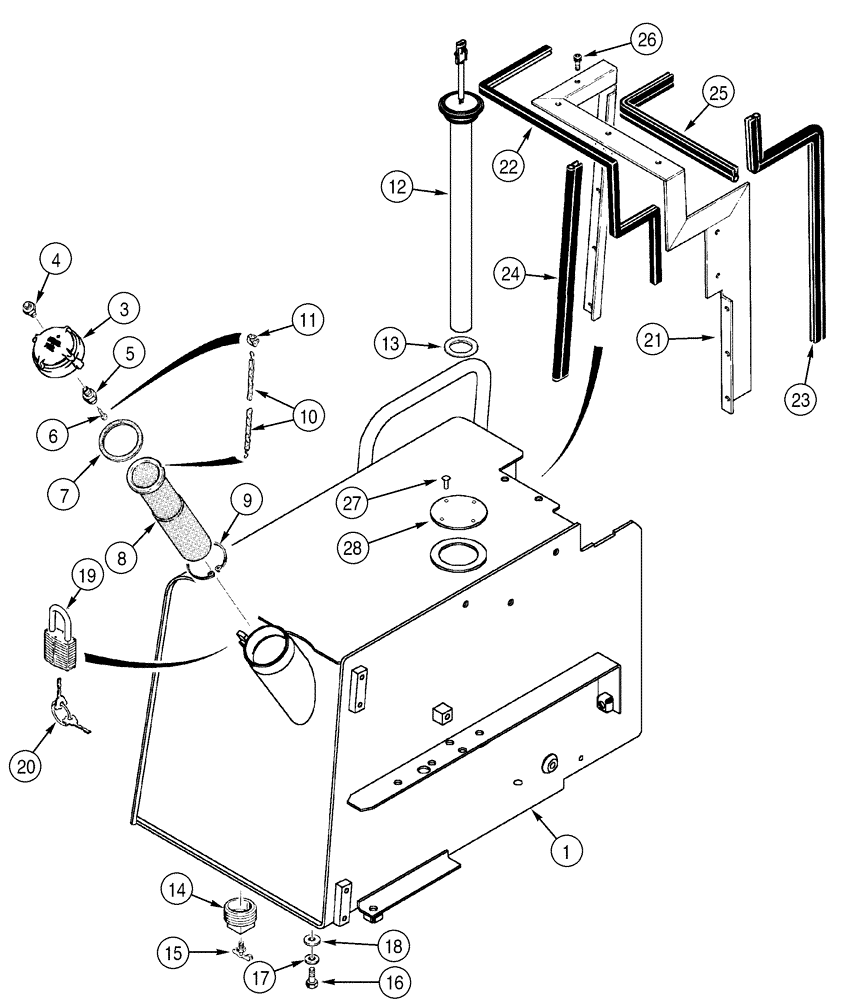

Схема запчастей Case 750H - (03-05) - FUEL TANK (03) - FUEL SYSTEM
22
27
14
21
17
5
10
20
26
11
28
12
1
3
7
8
6
19
25
24
23
9
13
4
16
18
15

Артикул

Название

Примечание

Количество

1

325376A2

TANK

With Grab Handle, Includes 3, Models Without Cab

1шт.

2

329066A2

TANK

Without Grab Handle, Includes 3, Models With Cab, Not Illustrated

1шт.

3

R57981

FILLER CAP

Fuel, Includes 4 - 6

1шт.

4

A50096

VALVE

Use Loctite No. 592

1шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

5

R57888

FILTER

Use Loctite No. 592

1шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

6

301-14712

SCREW,Drive, #12 x 3/4"

Use Loctite No. 242

1шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

7

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

1шт.

8

R51771

STRAINER ASSY.

1шт.

9

103-21300

SNAP RING,3.00", Int, #300

1шт.

10

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

11

R48634

FASTENER

1шт.

12

326277A1

SENSOR

Fuel Level

1шт.

13

255095A1

GROMMET

1шт.

14

R27578

PLUG

Use Loctite No. 592

1шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

15

217-81

VALVE

1/8 PT, Use Loctite No. 271

1шт.

B17500

LOCTITE

Loctite, No. 271, 6 ml

1шт.

16

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

18

D44330

SHIM,.031" Thk

6шт.

19

D93753

PADLOCK

Includes 19

1шт.

20

R29555

KEY

For Master Padlock Only

2шт.

20

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

21

1999346C1

FRAME ASSY

Seal, Includes 22 - 25, Models With Cab

1шт.

22

1999832C1

SEAL

410 mm (16-1/8 in), Molded Rubber, Upper

1шт.

23

1999833C1

SEAL

740 mm (29-1/8 in), Front, Vertical

1шт.

24

1999834C1

SEAL

552 mm (21-3/4 in), Rear, Vertical, Cut From 1999833C1, REF 23

1шт.

25

1999835C1

SEAL

410 mm (16-1/8 in), Front, Horizontal, Cut From 1999833C1, REF 23

1шт.

26

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

16шт.

27

359740A1

COVER

Access, Fuel Level Sender, Models With Cab

1шт.

28

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

4шт.

Выбрано товаров: 34
