Запчасти Case 750H (02-23) - GASKET KIT - 4T-390 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

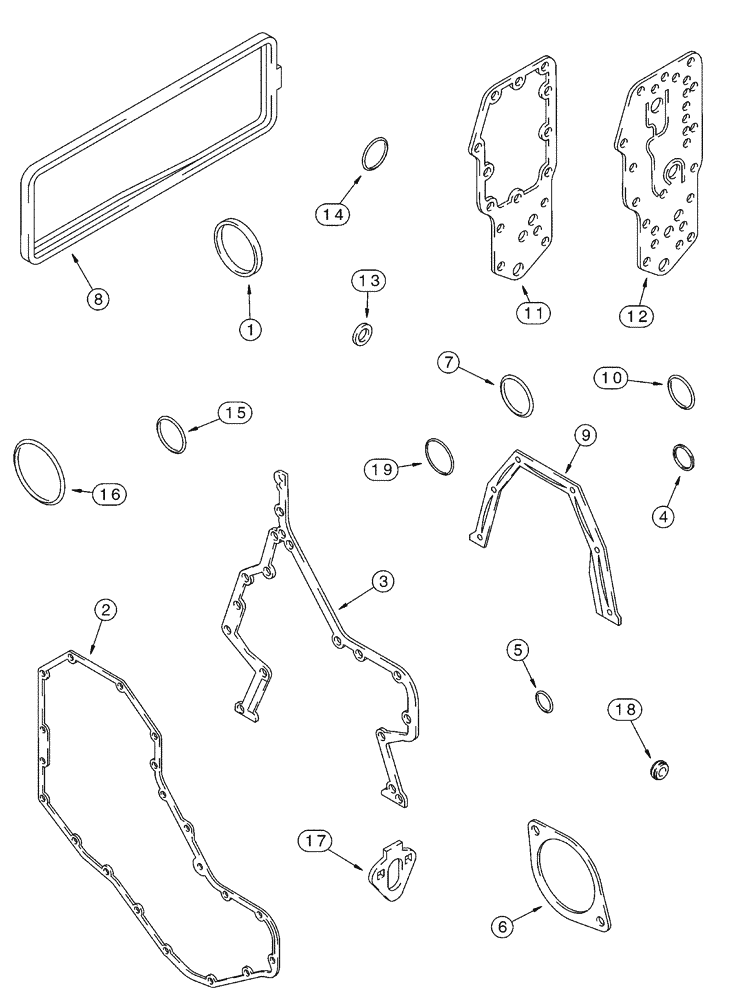

Схема запчастей Case 750H - (02-23) - GASKET KIT - 4T-390 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE
4
15
16
6
9
2
3
12
5
8
11
18
19
10
17
7
14
1
13

Артикул

Название

Примечание

Количество

4T-390 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

A77965

SEAL PACKAGE

Consists Of 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-23

1шт.

2

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING , See Page(s) 2-21

1шт.

3

J931351

GASKET

See Page(s) 2-21

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING , See Page(s) 2-21

1шт.

5

J913994

O-RING

See Page(s) 2-21

1шт.

6

J929751

GASKET

See Page(s) 2-21

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Page(s) 2-19

1шт.

8

J283767

GASKET,7.4mm Thk

See Page(s) 2-55

1шт.

9

J928493

GASKET

See Page(s) 2-61

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Page(s) 2-55

1шт.

4T-390 Emissions Certified Engine

1шт.

Continued From Previous Page

1шт.

Cylinder Block

1шт.

11

J942914

GASKET

See Page(s) 2-33

1шт.

12

J929792

GASKET,1.2mm Thk

See Page(s) 2-33

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-35

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, Not Used In This Application

1шт.

15

J929457

O-RING

23/32 ID x 7/64, See Page(s) 2-33

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , See Page(s) 2-67

1шт.

17

J931059

GASKET

See Page(s) 3-21

1шт.

18

J928759

SEALING WASHER

See Page(s) 2-55

4шт.

19

J935032

SEAL

See Page(s) 3-25

1шт.

Выбрано товаров: 25
