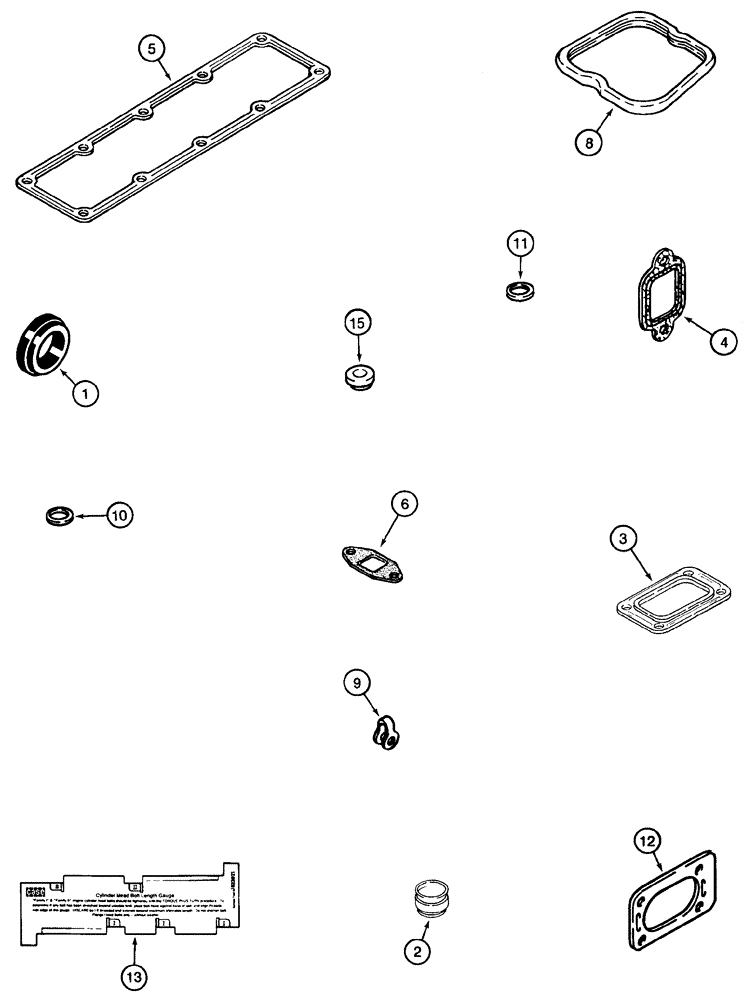

Запчасти Case 750H (02-22) - GASKET KIT (02) - ENGINE

4T-390 Emissions Certified Engine

1шт.

Valve Grind

1шт.

A77870

SEAL PACKAGE

Consists Of 1 - 15

1шт.

1

J923331

GASKET

See Page(s) 2-39

1шт.

2

J921640

SEAL

See Page(s) 2-41

8шт.

3

J919369

GASKET,0.5mm Thk

See Page(s) 2-27

1шт.

4

J927154

GASKET,0.38mm Thk

See Page(s) 2-25

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

See Page(s) 2-25

1шт.

6

J931350

GASKET

See Page(s) 2-27

1шт.

8

J930906

GASKET

See Page(s) 2-39

4шт.

9

J903380

SEAL

See Page(s) 3-19

4шт.

10

J906659

SEAL

1,5 mm, See Page(s) 3-19, 3-27

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Page(s) 3-27

4шт.

12

J914856

GASKET,1.02mm Thk

Not Used In This Application

1шт.

13

J823921

GAUGE

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Page(s) 2-39

4шт.
