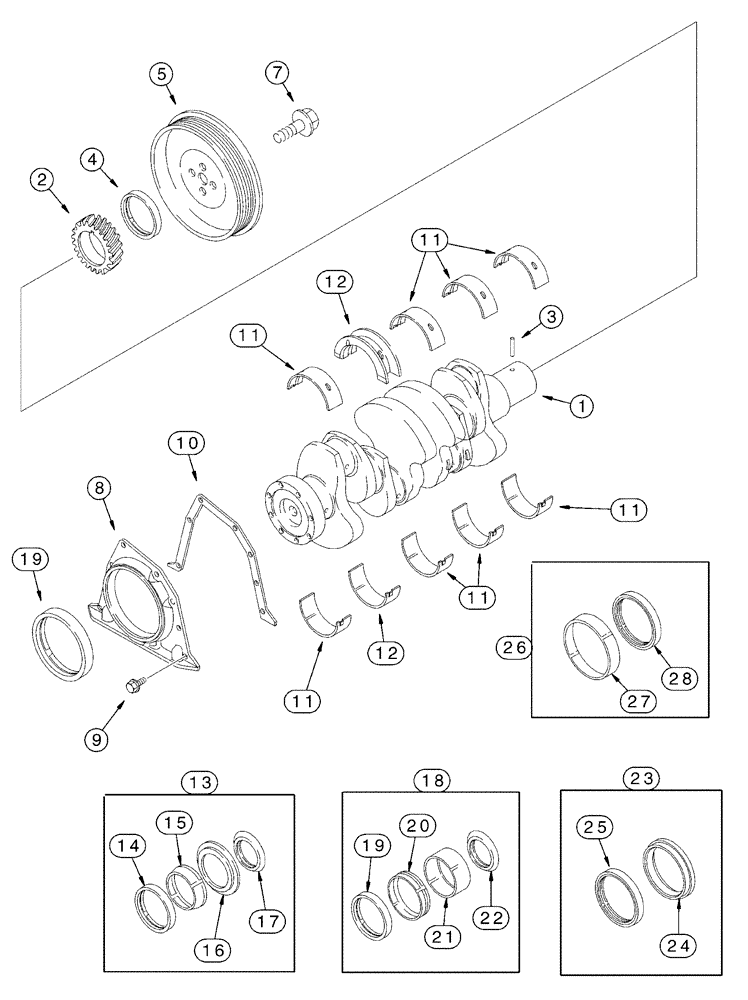

Запчасти Case 750H (02-19) - CRANKSHAFT (02) - ENGINE

4T-390 Emissions Certified Engine

1шт.

JR908031

CRANKCASE

Remanufactured, North America Only

1шт.

J929036R

REMAN-CRANKSHAFT

750H, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Consists Of 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

750H, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889, See Page(s) 2-65

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936260

REAR COVER

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

Undersize 0,25 mm

4шт.

11

A77474

BEARING SET

Undersize 0,50 mm

4шт.

11

A77476

BEARING SET

Undersize 0,75 mm

4шт.

4T-390 Emissions Certified Engine

1шт.

Continued From Previous Page

1шт.

11

A77478

BEARING SET

Undersize 1,00 mm

4шт.

12

A77896

BEARING SET

Standard

1шт.

12

A77473

THRUST BEARING

Undersize 0,25 mm

1шт.

12

A77475

THRUST BEARING

Undersize 0,50 mm

1шт.

12

A77477

THRUST BEARING

Undersize 0,75 mm

1шт.

12

A77479

THRUST BEARING

Undersize 1,00 mm

1шт.

12

A77841

THRUST BEARING

Undersize 0,50 mm, Oversize 0,50 mm

1шт.

4T-390 Emissions Certified Engine

1шт.

Continued From Previous Page

1шт.

12

A77840

THRUST BEARING

Undersize 1,00 mm, Oversize 1,00 mm

1шт.

13

A77889

SEAL PACKAGE

Crankshaft, Front, Consists Of 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Consists Of 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Crankshaft, Rear, Consists Of 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
