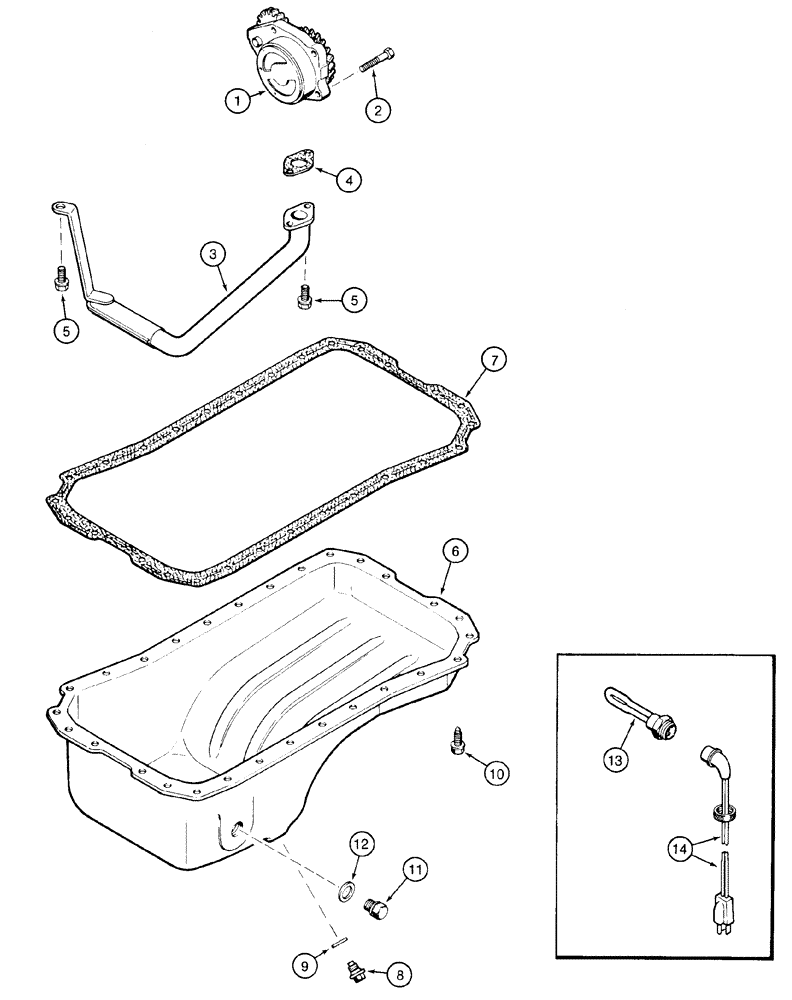

Запчасти Case 750H (02-14) - OIL PUMP, PAN HEATER (02) - ENGINE

4T-390 Emissions Certified Engine

1шт.

1

J930336

PUMP, ENGINE OIL

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J920795

TUBE,1 mm OD x 265.7 mm L

1шт.

4

J931349

GASKET

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Pan, Order A77673

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Consists Of 4, 7, 9

1шт.

4T-390 Emissions Certified Engine

1шт.

Continued From Previous Page

1шт.

Engine Oil Heater

1шт.

120 Volt

1шт.

A77490

KIT

120V, Heater, Consists Of 13, 14, Also Order J902425

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

240 Volt

1шт.

13

J904381

RESISTOR

240V

1шт.

14

J905114

ELECTRIC CABLE

1829 mm (72 in), Also Order J902425

1шт.
