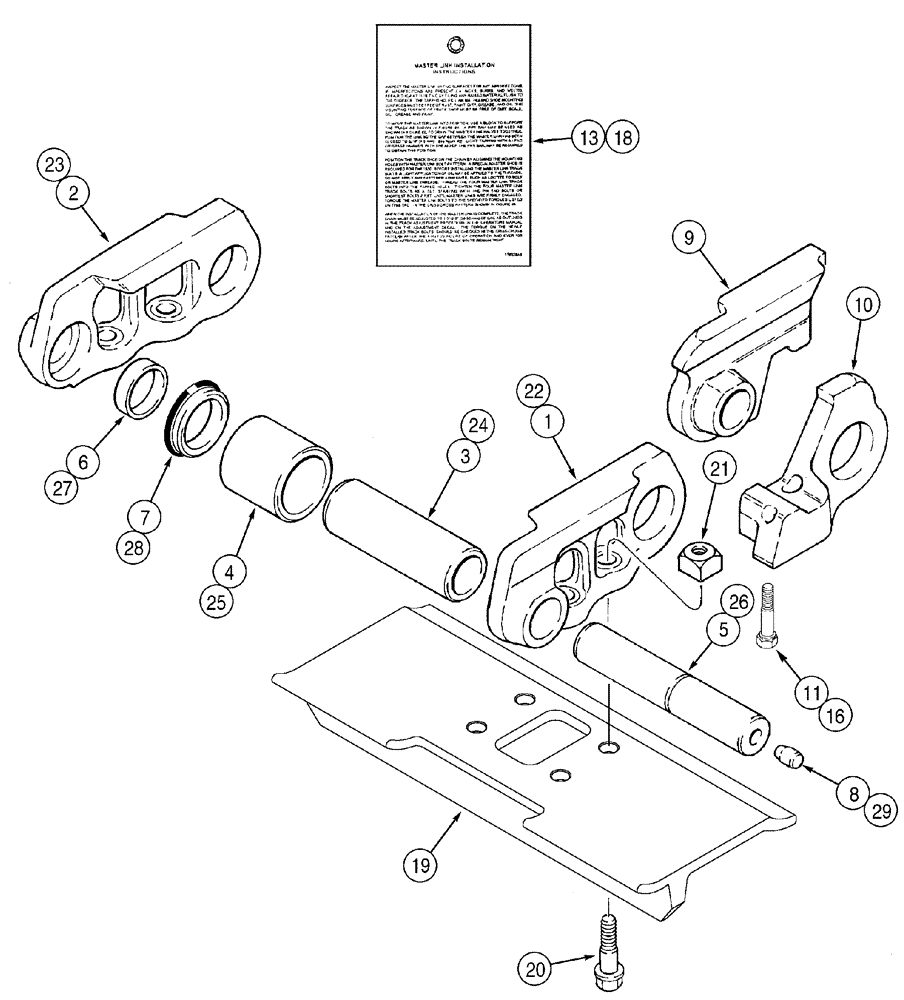

Запчасти Case 750H (05-12) - TRACK CHAIN, EXTENDED LIFE (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
Each Master Link Has Two Bolt Holes
1шт.
295201A1
CHAIN (CE)
Chain Assy Track, Extended Life, Consists Of 1 - 18
2шт.
1
295178A1
LINK
Link Right Hand
37шт.
2
295177A1
LINK
Link Left Hand
37шт.
3
114402A1
BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L
Bushing 54mm (2-1/8 in) OD
38шт.
4
323875A1
BUSHING,54.44mm ID x 76.2mm OD x 59mm L
Bushing
38шт.
5
R51131
PIN,33.48mm OD x 183.5mm L
Pin
38шт.
6
R51132
SPACER
Spacer
76шт.
7
R50830
OIL SEAL
Seal
76шт.
8
R50441
PLUG
Plug
38шт.
299237A1
KIT
Kit Master Link, Right Hand, Consists Of 9 - 13
1шт.
NSS
NOT SOLD SEPARAT
Link Assy, Master, Right Hand, Consists Of 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
Link, Fits Over Track Pin on Outside of Regular Track Link
1шт.
10
NSS
NOT SOLD SEPARAT
Link, Fits Over Bushing on Inside of Regular Track Link
1шт.
11
295325A1
BOLT,Hex, 5/8" - 18 x 3 1/4"
Bolt, Special 5/8 NF x 3-1/4
2шт.
13
178328A3
TAG
Tag Installation Instructions
1шт.
Each Master Link Has Two Bolt Holes
1шт.
299234A1
KIT
Kit Master Link, Left Hand, Consists Of 14 - 18
1шт.
NSS
NOT SOLD SEPARAT
Link Assy, Master, Left Hand, Consists Of 14, 15
1шт.
14
NSS
NOT SOLD SEPARAT
Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated
1шт.
15
NSS
NOT SOLD SEPARAT
Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated
1шт.
16
295325A1
BOLT,Hex, 5/8" - 18 x 3 1/4"
Bolt, Special 5/8 NF x 3-1/4
2шт.
18
178328A3
TAG
Tag Installation Instructions
1шт.
19
303471A1
TRACK SHOE
Shoe, Track 457 mm (18 in)
76шт.
19
328945A1
TRACK SHOE
Shoe, Track 610 mm (24 in)
76шт.
19
328946A1
TRACK SHOE
Shoe, Track 711 mm (28 in)
76шт.
20
295318A1
BOLT,Hex, 5/8" - 18 x 2 1/8"
Bolt, Special 5/8 NF x 2-1/8
296шт.
21
R25688
SQUARE NUT
Nut, Square 5/8 NF, Not Used on Master Link Bolts
296шт.
21a
345-140
SEALANT
Adhesive No. 847, 1 Pint, For Link Pin Bores, Not Illustrated
1шт.
Chain Unit Kit
1шт.
304484A1
KIT
Kit Includes Instructions, Consists Of 22 - 29 CHAIN UNIT
1шт.
22
295178A1
LINK
Link Right Hand CHAIN UNIT KIT
1шт.
23
295177A1
LINK
Link Left Hand CHAIN UNIT KIT
1шт.
24
114402A1
BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L
Bushing 54mm (2-1/8 in) OD CHAIN UNIT KIT
1шт.
25
323875A1
BUSHING,54.44mm ID x 76.2mm OD x 59mm L
Bushing CHAIN UNIT KIT
1шт.
26
R51131
PIN,33.48mm OD x 183.5mm L
Pin CHAIN UNIT KIT
2шт.
27
R51132
SPACER
Spacer CHAIN UNIT KIT
4шт.
28
R50830
OIL SEAL
Seal CHAIN UNIT KIT
4шт.
29
R50441
PLUG
Plug CHAIN UNIT KIT
2шт.
Выбрано товаров: 39
