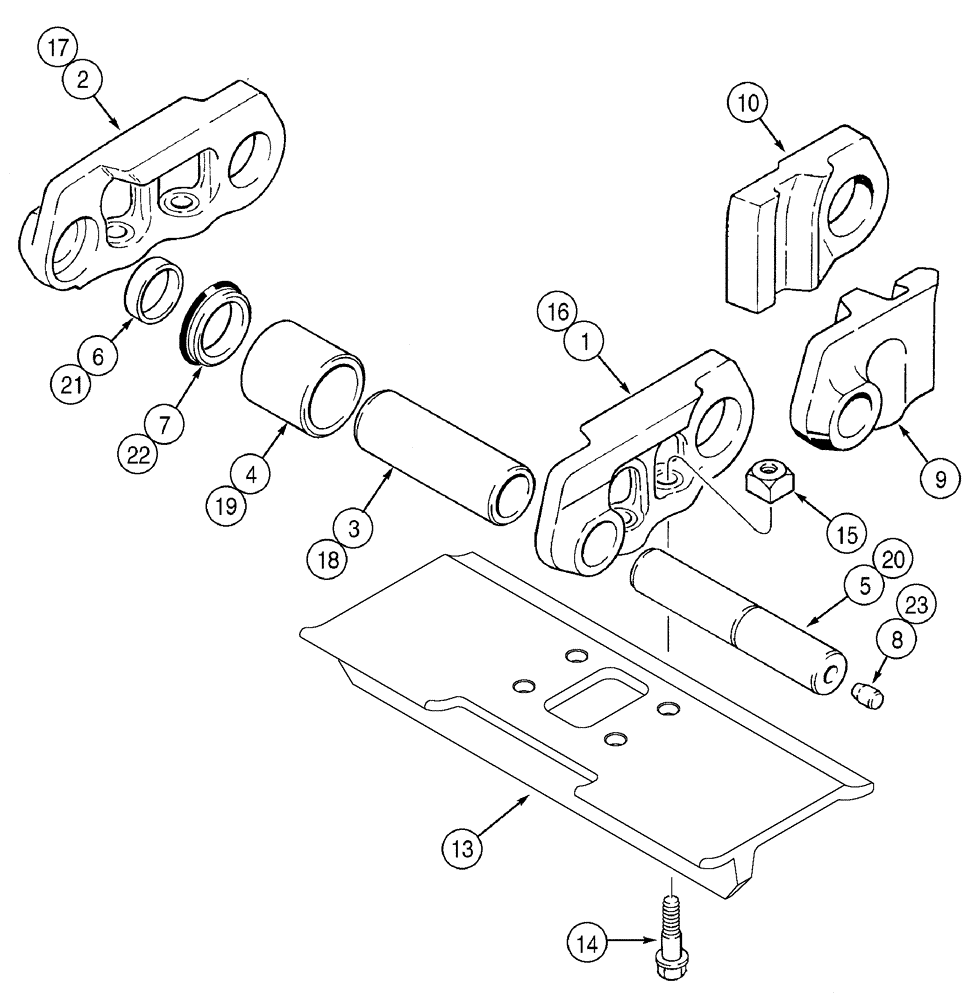

Запчасти Case 750H (05-11) - TRACK CHAIN, EXTENDED LIFE - EACH MASTER LINK HAS ONE BOLT HOLE (11) - TRACKS/STEERING

Each Master Link Has One Bolt Hole

1шт.

295194A1

CHAIN (CE)

Track, Extended Life, Consists Of 1 - 12

2шт.

1

295178A1

LINK

Right Hand

37шт.

2

295177A1

LINK

Left Hand

37шт.

3

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

54mm (2-1/8 in) OD

38шт.

4

323875A1

BUSHING,54.44mm ID x 76.2mm OD x 59mm L

38шт.

5

R51131

PIN,33.48mm OD x 183.5mm L

38шт.

6

R51132

SPACER

76шт.

7

R50830

OIL SEAL

76шт.

8

R50441

PLUG

38шт.

295174A1

Master, Right Hand, Consists Of 9, 10, For Service Order 299234A1, 299237A1, See Page(s) 5-41, 5-43

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

Each Master Link Has One Bolt Hole

1шт.

295173A1

Master, Left Hand, Consists Of 11, 12, For Service Order 299234A1, 299237A1, See Page(s) 5-41, 5-43

1шт.

11

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated

1шт.

12

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated

1шт.

13

303471A1

TRACK SHOE

457 mm (18 in)

76шт.

13

328945A1

TRACK SHOE

610 mm (24 in)

76шт.

13

328946A1

TRACK SHOE

711 mm (28 in)

76шт.

14

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8

304шт.

15

R25688

SQUARE NUT

5/8 NF, Not Used on Master Link Bolts

296шт.

15a

345-140

SEALANT

No. 847, 1 Pint, For Link Pin Bores, Not Illustrated

1шт.

Chain Unit Kit

1шт.

304484A1

KIT

Includes Instructions, Consists Of 16 - 23

1шт.

16

295178A1

LINK

Right Hand

1шт.

17

295177A1

LINK

Left Hand

1шт.

18

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

54mm (2-1/8 in) OD

1шт.

19

323875A1

BUSHING,54.44mm ID x 76.2mm OD x 59mm L

1шт.

20

R51131

PIN,33.48mm OD x 183.5mm L

2шт.

21

R51132

SPACER

4шт.

22

R50830

OIL SEAL

4шт.

23

R50441

PLUG

2шт.
