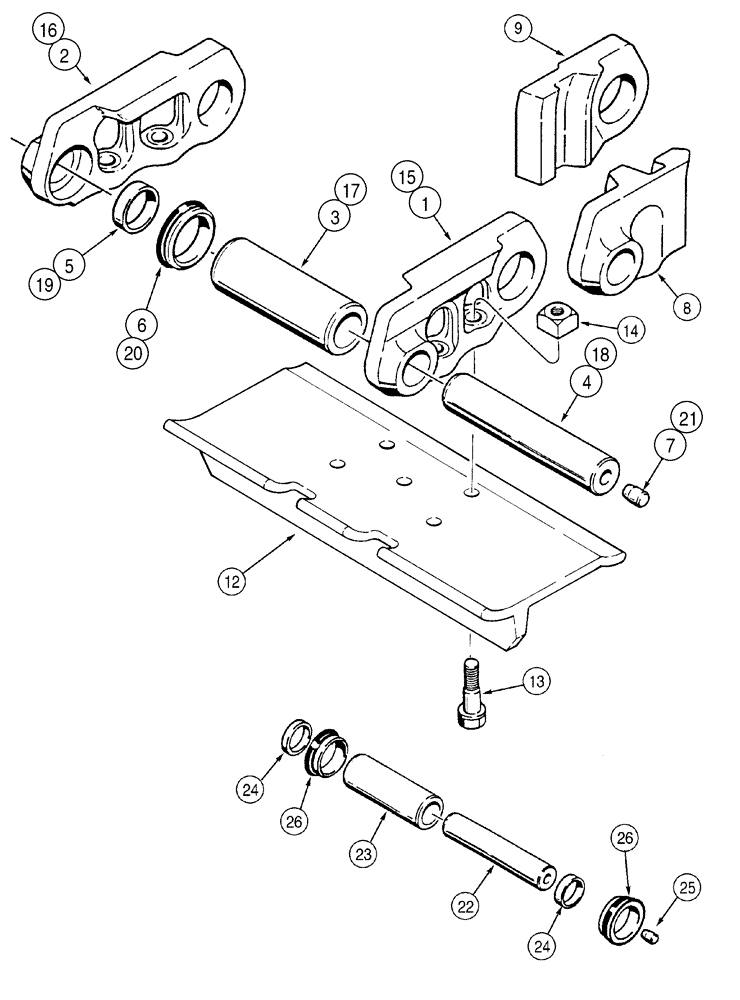

Запчасти Case 750H (05-09) - TRACK CHAIN, CASE LUBRICATED (11) - TRACKS/STEERING

Each Master Link Has One Bolt Hole

1шт.

295199A1

CHAIN (CE)

Chain Assy Track, Case Lubricated, Consists Of 1 - 11

2шт.

1

295178A1

LINK

Link Right Hand

37шт.

2

295177A1

LINK

Link Left Hand

37шт.

3

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

Bushing 57 mm (2-1/4 in) OD

38шт.

4

R51131

PIN,33.48mm OD x 183.5mm L

Pin

38шт.

5

R51132

SPACER

Spacer

76шт.

6

R50830

OIL SEAL

Seal

76шт.

7

R50441

PLUG

Plug

38шт.

295174A1

Link Assy Master, Right Hand, Consists Of 8, 9, For Service Order, 299234A1, 299237A1, See Page(s) 5-29, 5-31

1шт.

8

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

295173A1

Link Assy Master, Left Hand, Consists Of 10, 11, For Service Order, 299234A1, 299237A1, See Page(s) 5-29, 5-31

1шт.

295173A1

Continued From Previous Page

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated

1шт.

11

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated

1шт.

12

295181A1

TRACK SHOE

Shoe, Track 457 mm (18 in)

76шт.

12

295182A1

SHOE

Shoe, Track 610 mm (24 in)

76шт.

12

295183A1

SHOE

Shoe, Track 711 mm (28 in)

76шт.

13

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

Bolt, Special 5/8 NF x 2-1/8

304шт.

14

R25688

SQUARE NUT

Nut, Square 5/8 NF, Not Used on Master Link Bolts

296шт.

Chain Unit Kit

1шт.

300215A1

KIT

Kit Includes Instructions, Consists Of 15 - 21 CHAIN UNIT

1шт.

302847A1

LINK ASSY.

Link Assy Consists Of 15 - 17 CHAIN UNIT KIT

1шт.

15

295178A1

LINK

Link Right Hand CHAIN UNIT KIT

1шт.

16

295177A1

LINK

Link Left Hand CHAIN UNIT KIT

1шт.

17

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

Bushing 57 mm (2-1/4 in) OD CHAIN UNIT KIT

1шт.

18

R51131

PIN,33.48mm OD x 183.5mm L

Pin CHAIN UNIT KIT

2шт.

19

R51132

SPACER

Spacer CHAIN UNIT KIT

4шт.

20

R50830

OIL SEAL

Seal CHAIN UNIT KIT

4шт.

21

R50441

PLUG

Plug CHAIN UNIT KIT

2шт.

Pin and Bushing Kit

1шт.

Services Complete Track Chain for Both Sides of Tractor PIN AND BUSHING KIT

1шт.

R56024

SET

Kit Pin and Bushing, Includes Instructions, Consists Of 22 - 27

1шт.

22

R51131

PIN,33.48mm OD x 183.5mm L

Pin AND BUSHING KIT

76шт.

23

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

Bushing 57 mm (2-1/4 in) OD PIN AND KIT

76шт.

24

R51132

SPACER

Spacer PIN AND BUSHING KIT

152шт.

25

R50441

PLUG

Plug PIN AND BUSHING KIT

76шт.

26

R50830

OIL SEAL

Seal PIN AND BUSHING KIT

152шт.

27

345-140

SEALANT

Adhesive No. 847, 1 Pint, For Link Pin Bores, Not Illustrated PIN AND BUSHING KIT

1шт.
