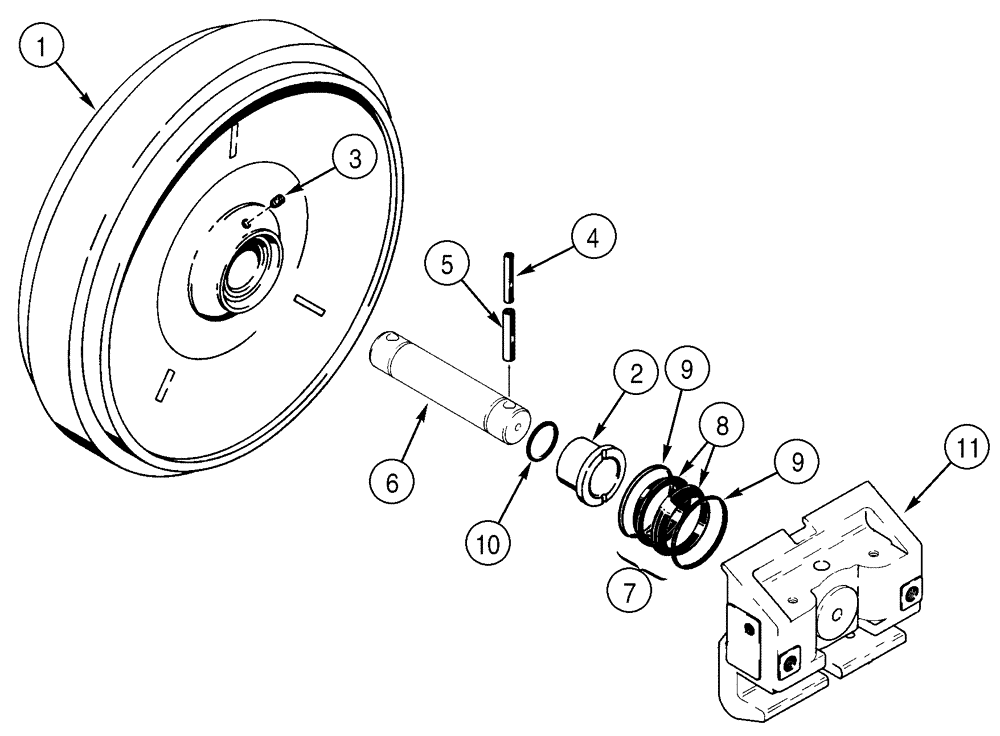

Запчасти Case 750H (05-05) - TRACK IDLER (11) - TRACKS/STEERING

103384A1

FRONT IDLER

Consists Of 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

Hub, Order 103384A1, Includes 2

1шт.

2

103391A1

BUSHING,60.26mm ID x 68mm OD x 46mm L

2шт.

3

R33557

PLUG

1шт.

4

838-51090

PIN,M10 x 90, Coiled

10 x 90

2шт.

5

838-51690

LOCK PIN,M16 x 90, Slotted

16 x 90

2шт.

6

103390A1

SHAFT

1шт.

7

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

Consists Of 8, 9

2шт.

8

NSS

NOT SOLD SEPARAT

Seal, Order S116825

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Face Seal

2шт.

10

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

11

R58799

SUPPORT

2шт.
