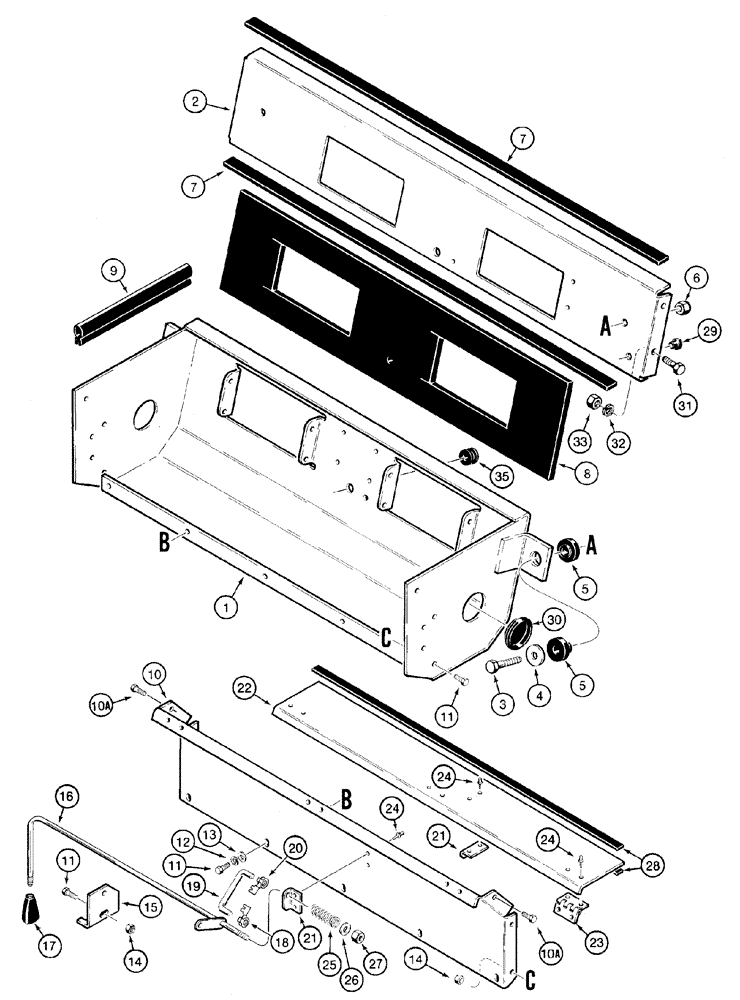

Запчасти Case 750H (09-32) - CAB CONTROL, AIR FLOW AND BLOWER HOUSING (09) - CHASSIS

1

R44079

HOUSING

Blower

1шт.

2

R47838

PANEL

Front

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

4

195-137

WASHER,13/32" x 1 1/8" x .180"

13/32 x 1-1/8 x 3/16

2шт.

5

R44084

BUSHING

4шт.

6

232-1446

NUT,3/8"-16, GC

2шт.

7

R44282

SEAL

800 mm (31-1/2 in), Front Panel

2шт.

8

R44083

INSTRUCTION

Blower Housing

1шт.

9

R44801

210 mm (8-1/4 in), Cut From F43117X

2шт.

10

R44792

PANEL

Rear

1шт.

10a

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

12

492-11025

LOCK WASHER,1/4"

5шт.

13

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

5шт.

14

231-1444

NUT,1/4"-20, GB

7шт.

15

R44799

BRACKET

1шт.

16

R44795

LEVER

Air Flow Control

1шт.

17

F64341

KNOB

Adjustment Lever

1шт.

18

F43349

CLIP

1шт.

19

R44798

THREADED ROD

1шт.

20

F43350

CLIP

1шт.

21

R44794

SUPPORT

2шт.

22

R44793

PANEL

Air Flow Control

1шт.

23

F64065

HINGE

Panel

3шт.

24

151-546

RIVET,Pop, 1/8" x 5/16"

1/8 x 5/16

16шт.

25

F62245

SPRING

1шт.

26

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

27

231-1444

NUT,1/4"-20, GB

1шт.

28

R44800

600 mm (23-5/8 in), Cut From A42905X

2шт.

29

353-700

BUSHING

3/8 ID

1шт.

30

353-588

PLUG,1 3/4"

1-3/4

2шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

32

492-11031

LOCK WASHER,5/16"

4шт.

33

425-105

NUT,5/16"-18, G5

4шт.

34

R46825

DECAL

Not Illustrated, See Page(s) 9-107

1шт.

35

96901C1

GROMMET

1шт.
