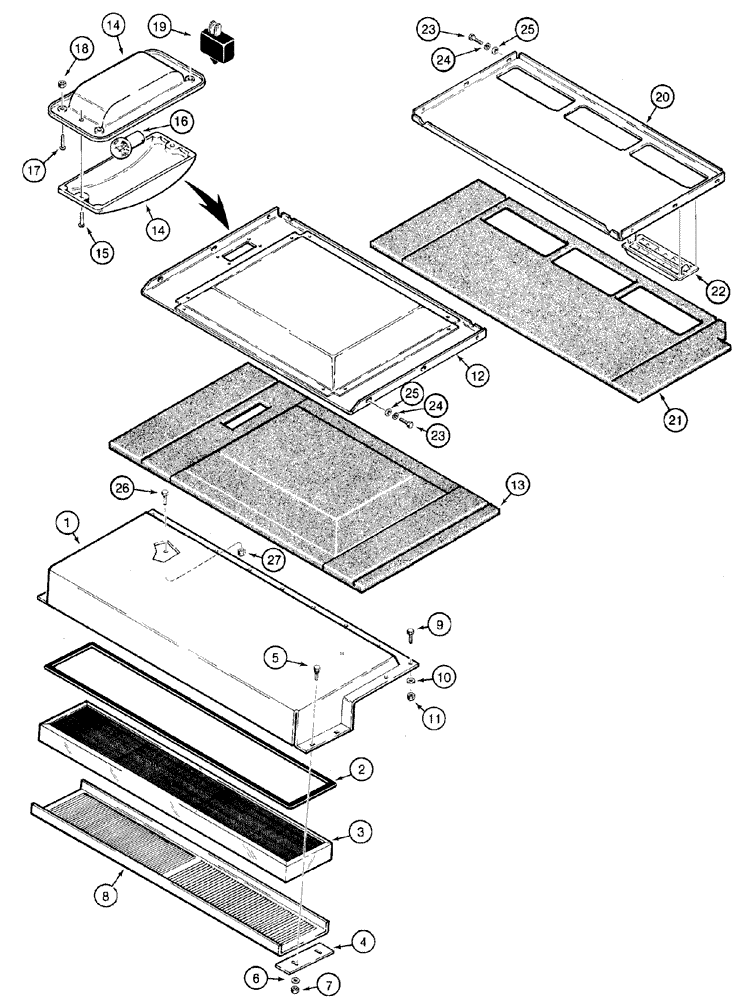

Запчасти Case 750H (09-31) - CAB FILTER, AIR AND HEADLINERS (09) - CHASSIS

1

189640A1

HOUSING

Air Filter

1шт.

2

F63669

SEAL

1шт.

3

F64318

AIR FILTER

1шт.

4

195544A1

PLATE

2шт.

5

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

1/4 x 1; 2

4шт.

6

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

7

231-1444

NUT,1/4"-20, GB

4шт.

8

189641A1

PANEL

Filter

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

11шт.

10

F42778

WASHER

11шт.

11

231-1445

NUT,5/16"-18, GB

11шт.

12

338883A1

COVER

Rear

1шт.

13

187464A1

PAD

1шт.

14

F89772

LAMP

Service With, R54198, Includes 15, 16

1шт.

15

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

No. 8 x 1/4

2шт.

16

B50217

BULB

12V , No. 93

1шт.

17

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

No. 8 x 5/8

4шт.

18

225-14108

NUT,#8-32

4шт.

19

F45393

SWITCH

See Page(s) 4-39

1шт.

20

326622A1

COVER

Front

1шт.

21

326922A1

PAD

1шт.

22

F98149

GUARD

Air Vent

3шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

24

492-11025

LOCK WASHER,1/4"

10шт.

25

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

10шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

231-1445

NUT,5/16"-18, GB

2шт.

345-44

ADHESIVE

Used To Attach Foam Pads

1шт.
