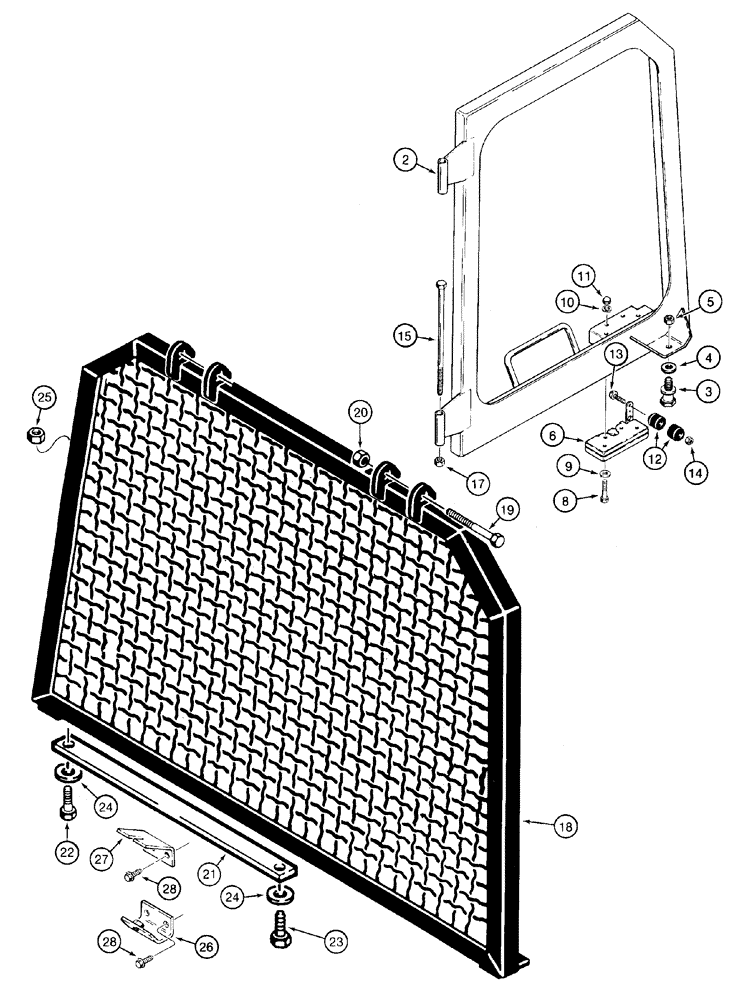

Запчасти Case 750H (09-27) - CAB WINDOW, DOOR AND SCREEN (09) - CHASSIS

1

189644A1

FRAME

Left Hand, Not Illustrated

1шт.

2

189645A1

CHASSIS

Right Hand

1шт.

3

R51754

STRIKER

Outer

2шт.

4

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

2шт.

5

131-595

NUT,7/16"-14

7/16

2шт.

6

R55002

LATCH

Right Hand

1шт.

7

R55003

LATCH ASSY.

Left Hand, Not Illustrated

1шт.

9

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

10

492-11025

LOCK WASHER,1/4"

8шт.

11

129-884

CROWN NUT,Crown, 1/4"-20

1/4

8шт.

12

L35871

FENDER

4шт.

13

490-11016

SCREW,Cross Pan Hd, #10-32 x 1"

No. 10 NF x 1

2шт.

14

225-14110

NUT,#10-24

2шт.

15

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

17

231-1446

NUT,3/8" - 16, Gr 5

4шт.

18

183915A1

SCREEN

Rear

1шт.

19

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3/8 x 3-3/4

2шт.

20

232-1446

NUT,3/8"-16, GC

2шт.

21

183914A1

BAR

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

24

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

4шт.

25

231-1446

NUT,3/8" - 16, Gr 5

2шт.

26

187999A1

BRACKET

Hold Open

1шт.

27

188007A1

BRACKET

Support

2шт.

28

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.
