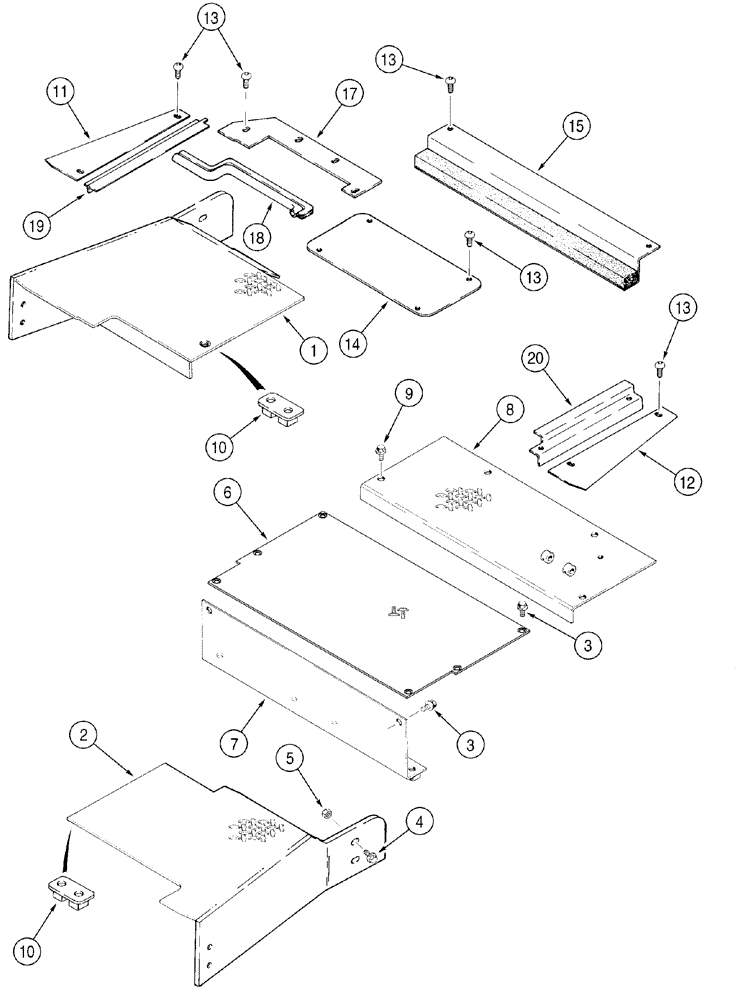

Запчасти Case 750H (09-16) - PLATES, FLOOR PLATES, STEP (09) - CHASSIS

1

226089A1

PLATE

Step, Left Hand

1шт.

2

226088A1

PLATE

Step, Right Hand

1шт.

3

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

10шт.

4

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

8шт.

6

349101A1

PLATE

1шт.

7

R57970

PLATE

Heel

1шт.

8

R57958

LARGE PLATE

PLATE, LARGE , Throttle

1шт.

9

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

10

224313A1

PLATE ASSY.

Cab Models

2шт.

11

1999343C1

PLATE

Filler Strip, Left Hand

1шт.

12

1999345C1

PLATE

Filler Strip, Right Hand

1шт.

13

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

16шт.

14

1999358C1

PLATE

Cover

1шт.

15

1999583C1

SUPPORT ASSY.

Includes 16

1шт.

16

1999823C1

SEAL

675 mm (26-5/8 in)

1шт.

17

1999349C1

PLATE ASSY.

Fuel Tank Seal, Includes 18

1шт.

18

1999824C1

SEAL

460 mm (18-1/8 in), Cut From 1999833C1

1шт.

19

1999368C1

BRACKET

Floormat Trim, Left Hand

1шт.

20

1999367C1

BRACKET

Floormat Trim, Right Hand

1шт.
