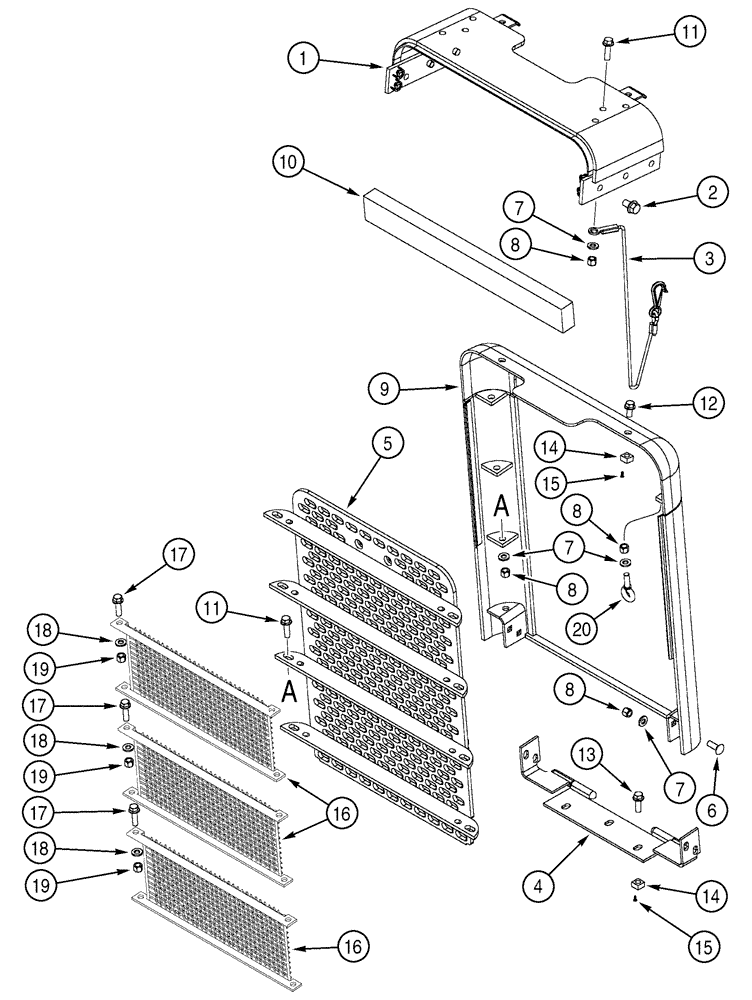

Запчасти Case 750H (09-15) - GUARD, RADIATOR GRILLE AND SCREEN (09) - CHASSIS

1

345742A1

COVER

Radiator, Top

1шт.

2

360-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 8

5/8 x 1; 8

6шт.

3

378924A1

CABLE

1шт.

4

360000A1

SLIDE

Grille

1шт.

5

337666A1

GRILLE

1шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

18шт.

8

231-1448

NUT,1/2"-13, GB

18шт.

9

358021A1

FRAME

1шт.

10

370335A1

SEAL

690 mm (27-3/16 in)

1шт.

11

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4; 8

13шт.

12

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

13

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

3шт.

14

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

5шт.

15

336371A1

PIN,4.88mm OD x 14.23mm L

5шт.

16

376362A1

SCREEN

Radiator Brush, If Equipped

3шт.

17

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1/2 x 1-1/4; 8

8шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

.406 X.812 X.065 YZD

8шт.

19

231-1446

NUT,3/8" - 16, Gr 5

8шт.

20

380231A1

EYEBOLT

BOLT, EYE , 1/2

1шт.
