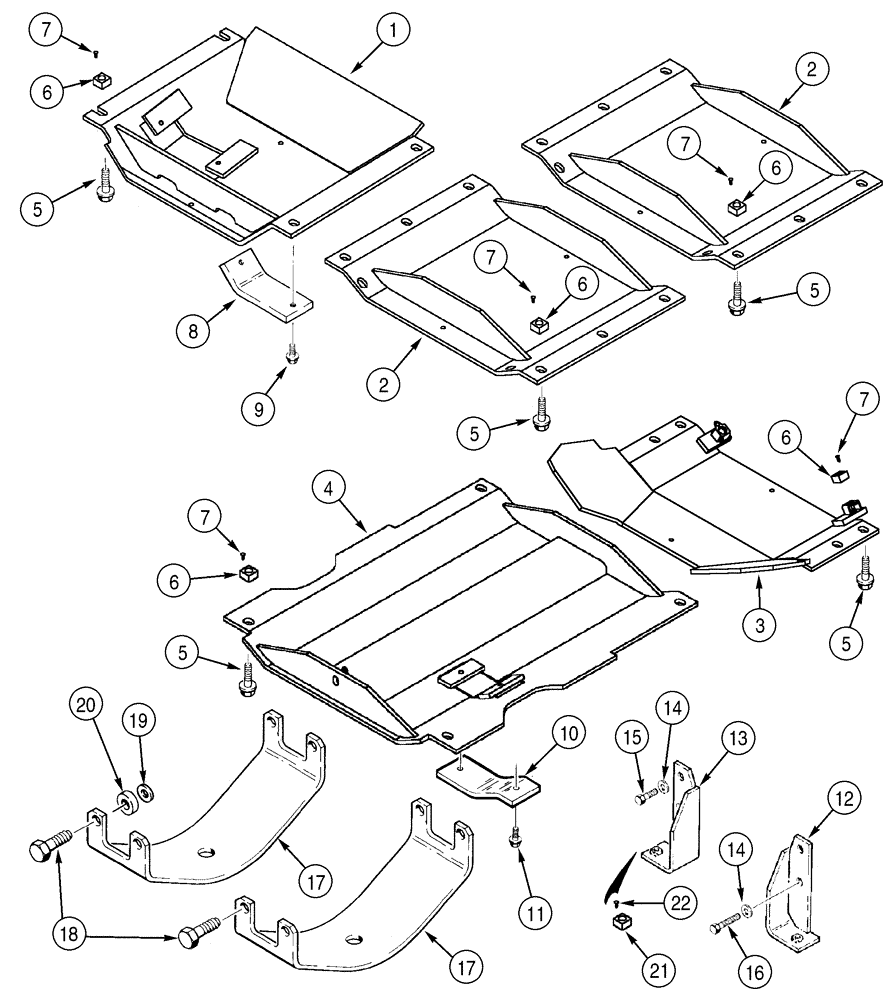

Запчасти Case 750H (09-10) - SHIELDS, UNDERCARRIAGE (09) - CHASSIS

1

357495A1

GUARD ASSY.

Engine Oil Pan

1шт.

2

128709A1

GUARD ASSY.

Power Train

2шт.

3

353355A1

GUARD

Standard, Transmission, If Equipped

1шт.

4

336637A1

GUARD ASSY.

Heavy Duty, Transmission, If Equipped

1шт.

5

360-1028

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4; 8

16шт.

6

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

5/8

16шт.

7

336371A1

PIN,4.88mm OD x 14.23mm L

16шт.

8

R48345

COVER

Engine Oil Drain

1шт.

9

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

2шт.

10

360450A1

COVER

Transmission Oil Drain

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

338706A1

BRACKET

Mounting, Transmission Protective Shield, Right Hand

1шт.

13

338709A1

BRACKET

Mounting, Transmission Protective Shield, Left Hand

1шт.

14

604-20035

BOLT,Hex, M20 x 35mm, Cl 8.8

M20 x 35

2шт.

15

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

16

608-20070

BOLT,Hex, M20 x 70mm, Cl 10.9

M20 x 70; 10.9

2шт.

17

R57673

GUARD

Final Drive

2шт.

18

326-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

8шт.

19

D30196

WASHER

8шт.

20

R57674

SPACER

4шт.

21

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

5/8

2шт.

22

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.
