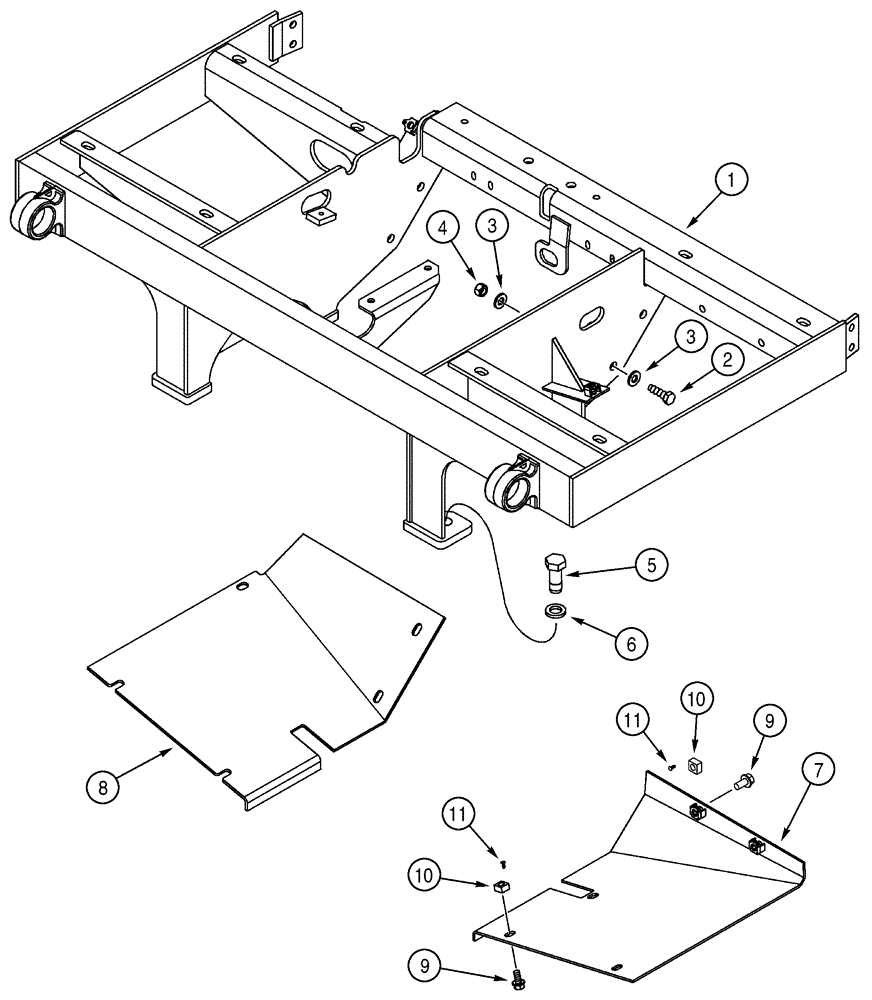

Запчасти Case 750H (09-09) - MOUNTING FRAME, SEAT AND RESERVOIR (09) - CHASSIS

1

322975A1

FRAME ASSY

Seat and Reservoir

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

3

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

21/32 x 1-5/16 x 5/32

12шт.

4

425-1010

NUT,5/8"-11, G5

6шт.

5

107-91640

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

4шт.

6

D30196

WASHER

4шт.

7

353668A1

GUARD ASSY.

Hydraulic Lines, Right Hand

1шт.

8

353671A1

GUARD

Hydraulic Lines, Left Hand

1шт.

9

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

10шт.

10

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

10шт.

11

336371A1

PIN,4.88mm OD x 14.23mm L

10шт.
