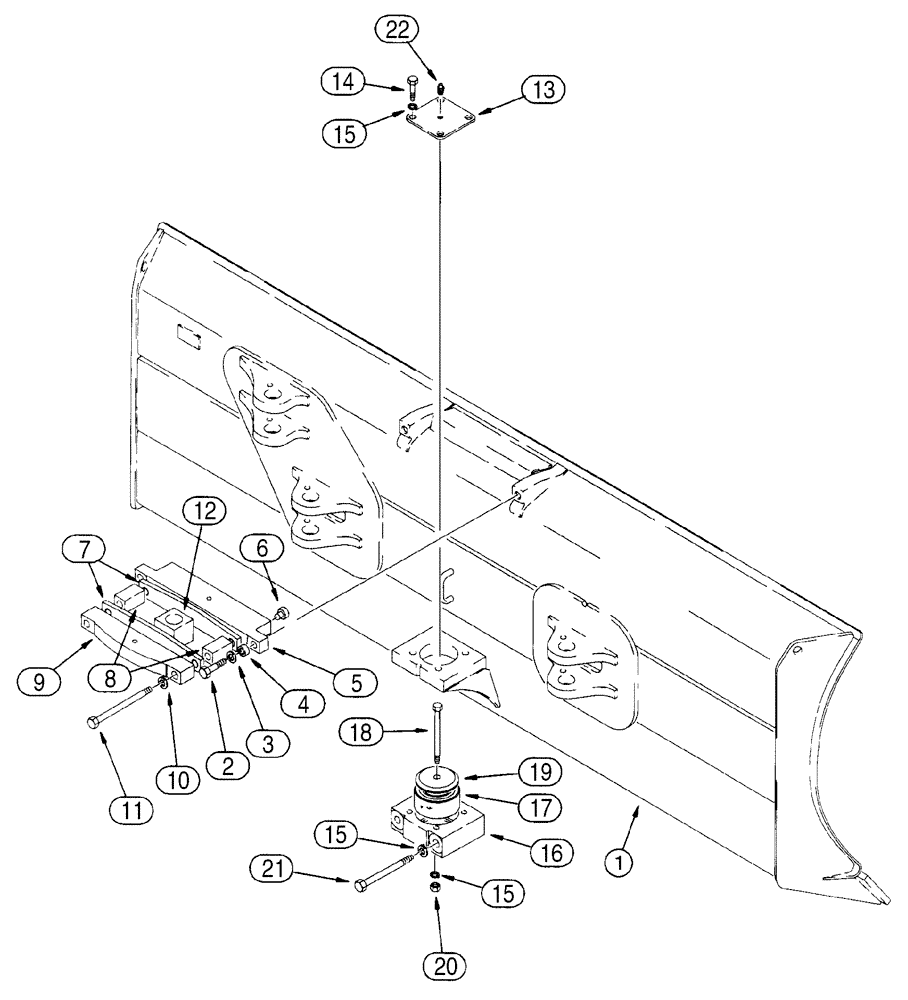

Запчасти Case 750H (09-02) - DOZER BLADE MOUNTING (09) - CHASSIS

1

REF

INSTRUCTION

Blade, Dozer, See Page(s) 9-9

1шт.

2

326-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

Use Loctite No. 242

2шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

4

R30398

SPACER

2шт.

5

116247A1

BLOCK ASSY.

Pitch

1шт.

6

316455A1

PLUG

2шт.

7

117836A1

BLOCK

2шт.

8

117837A1

BLOCK

Spacer

2шт.

9

120821A1

PLATE

Retainer

1шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

11

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

Use Loctite No. 242

2шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

12

346626A1

BLOCK

1шт.

13

188412A1

LARGE PLATE

PLATE, LARGE

1шт.

14

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Use Loctite No. 242

4шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

188904A1

BLOCK

Trunnion

1шт.

17

118487A1

BALL JOINT

1шт.

18

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

1шт.

19

119105A1

WASHER

1шт.

20

329-1012

NUT,3/4"-10, G8

1шт.

21

326-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

Use Loctite No. 242

2шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
