Запчасти Case 750H (08-23) - SECTION ASSEMBLY TILT, ANGLE, AND AUXILIARY (08) - HYDRAULICS

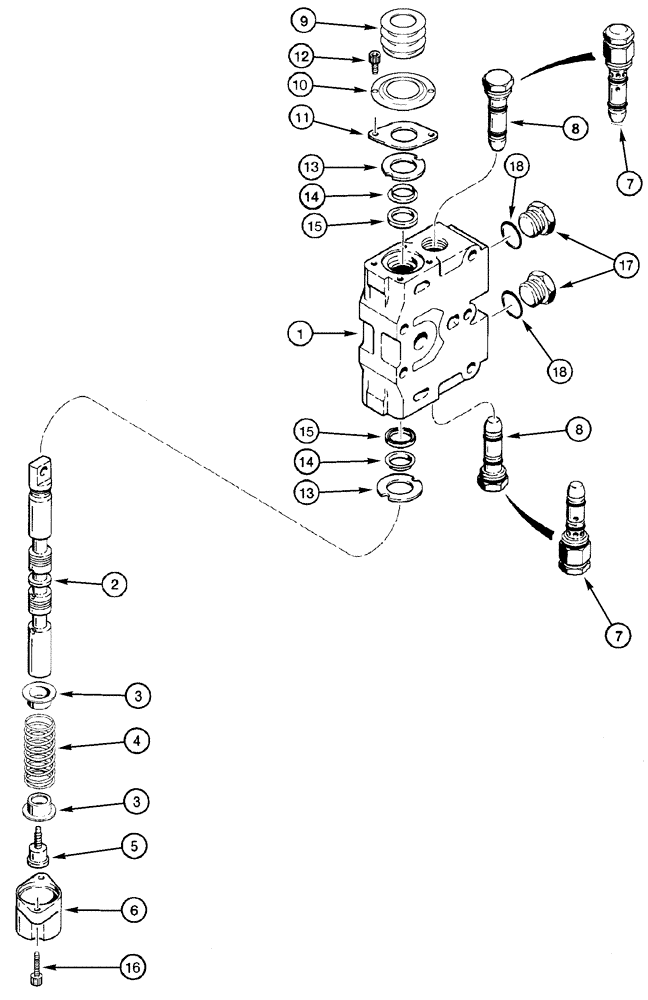

Схема запчастей Case 750H - (08-23) - SECTION ASSEMBLY TILT, ANGLE, AND AUXILIARY (08) - HYDRAULICS
8
10
9
11
8
3
13
6
14
14
13
15
2
16
4
18
3
7
7
1
18
17
12
15
5

Артикул

Название

Примечание

Количество

357166A1

HYD VALVE SECTION

Ripper, Consists Of 1 - 16

1шт.

357165A1

HYD VALVE SECTION

Tilt Control, Angle Control, Consists Of 1 - 16

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

H267591

SPRING SEAT

2шт.

4

100854A1

SPRING

1шт.

5

N14593

STEP BOLT

1шт.

6

S301092

FLANGE COVER CAP

1шт.

7

N8950

VALVE

Ripper Section, See Page(s) 8-69

2шт.

8

D87307

VALVE

Tilt and Angle Sections, See Page(s) 8-67

2шт.

352796A1

PACKAGE

Consists Of 9 - 16

1шт.

9

357164A1

BOOT

1шт.

10

357163A1

RETAINER

1шт.

11

N8194

LARGE PLATE

PLATE, LARGE

1шт.

12

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

13

D88730

WASHER,0.77" ID x 1.43" OD

2шт.

14

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

15

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

16

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

2шт.

17

86512512

PLUG,7/8" - 14 ORB

4 Spool to 3 Spool, If Used, Incl. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Note:When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

Note:Lors du remplacement des joints (REF 9 - 16) pour la première réparation, utiliser le colis de réparation 352796A1, les articles de réparation nétant pas identiques selon la production..

1шт.

Nota:Al reemplazar juntas (ref 9 - 16) durante la primera reparación, debe usarse el juego de reparación 352796A1 ya que los artículos de reparación no son los mismo que los suministrados de fábrica.

1шт.
