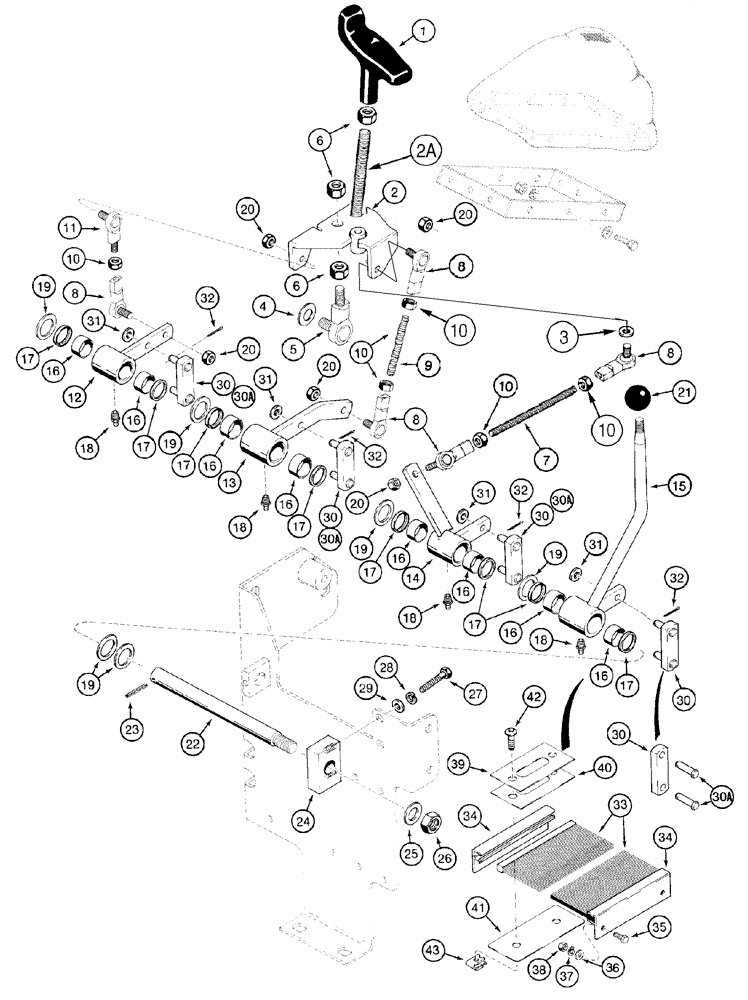

Запчасти Case 750H (08-18) - CONTROLS LEVER AND LINKAGE - MODELS WITH FOUR SPOOL CONTROL VALVE (08) - HYDRAULICS

Models With Four Spool Control Valve

1шт.

1

R58490

HANDLE

1шт.

2

377400A1

BRACKET

1шт.

2a

363251A1

ROD

1/2 NF x 89 mm

1шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

5

A55558

BALL JOINT

Male

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

Use Loctite No. 242

3шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

7

377403A1

ROD

5/16 NF x 131 mm

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16 NF, Female

5шт.

9

377402A1

ROD

5/16 NF x 61 mm

1шт.

10

425-115

NUT,5/16"-24, G5

Use Loctite No. 242

5шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

11

R47939

ROD

5/16 NF, Male, Use Loctite No. 242

1шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

12

377393A1

ROCKER ARM

Lift, Includes 16 - 18

1шт.

13

377395A1

ROCKER ARM

Tilt, Includes 16 - 18

1шт.

14

R58246

ROCKER

Angle, Includes 16 - 18

1шт.

15

R58249

LEVER

Auxiliary Control, Includes 16 - 18

1шт.

16

L31166

NEEDLE BEARING

2шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

Models With Four Spool Control Valve

1шт.

19

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

Used as a Spacer

10шт.

20

232-4605

LOCK NUT,5/16"-24, GC

Use Loctite No. 242

5шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

21

70213

KNOB

1шт.

22

R58256

SHAFT

1шт.

23

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

3/16" x 1 1/2", Slotted

1шт.

24

R58257

BLOCK

1шт.

25

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

26

231-24410

LOCK NUT,5/8"-18, GB

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

30

139345A1

POWER ARM

Includes 30A

4шт.

30a

139219A1

CLEVIS

2шт.

31

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

32

432-612

COTTER PIN,3/32" x 3/4"

8шт.

Cab Models

1шт.

33

1999590C1

SEAL

Brush

2шт.

34

1999591C1

RETAINER

2шт.

35

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

36

495-31022

WASHER,#10

4шт.

37

492-11010

LOCK WASHER,#10

4шт.

38

225-14110

NUT,#10-24

4шт.

39

1999837C1

COVER ASSY

Includes 40

1шт.

40

1999838C1

SEAL

Slotted, Upper

1шт.

41

1999588C1

RETAINER

Lower

1шт.

42

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

2шт.

43

131-369

LOCK NUT,7/8"-14, GA

7/8 NF

2шт.
