Запчасти Case 750H (08-14) - CYLINDER ASSY ANGLE (08) - HYDRAULICS

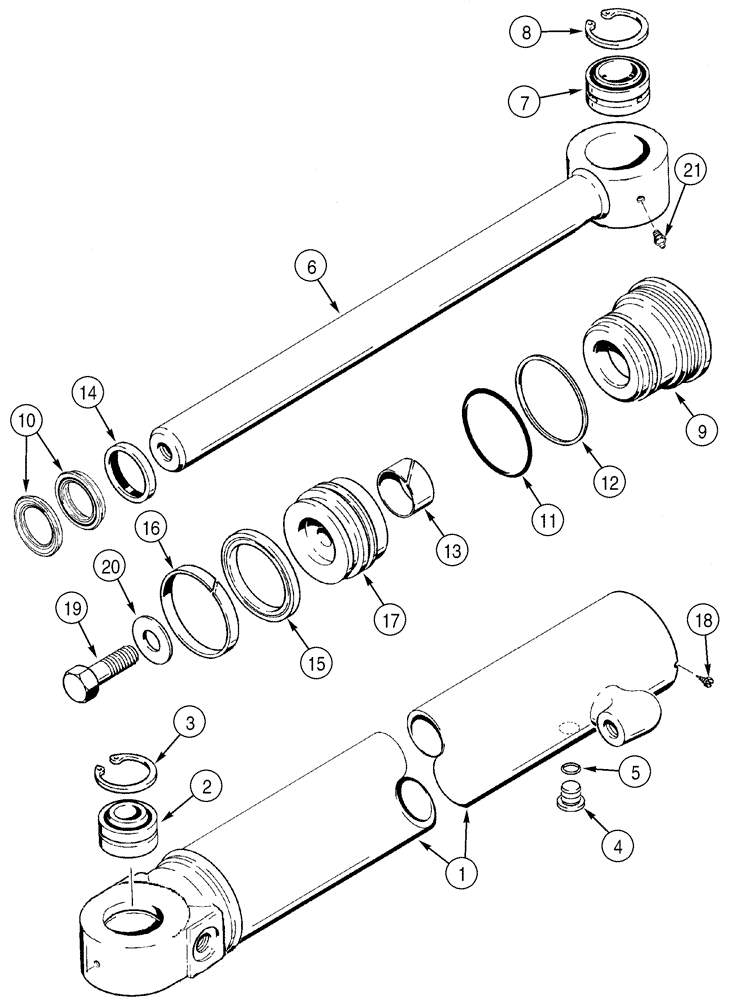

Схема запчастей Case 750H - (08-14) - CYLINDER ASSY ANGLE (08) - HYDRAULICS
19
13
9
21
20
16
8
4
18
15
10
3
14
6
1
11
5
17
2
7
12

Артикул

Название

Примечание

Количество

190595A2

CYLINDER

89 ID x 396 mm strk, Angle, Consists Of 1 - 20

2шт.

84135900R

REMAN-HYD CYLINDER

Reman for new P/N 190595A2

2шт.

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

1

355751A1

BARREL,88.77 mm ID, 628.6 mm Length

Includes 2 - 5

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

4

86625138

PLUG,7/18" - 14

Includes Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

116965A2

PISTON ROD

45 mm (1-3/4 inch) dia, Includes 7, 8

1шт.

7

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

1шт.

8

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

9

355529A1

GLAND

1шт.

250741A1

SEAL KIT

Consists Of 10 -16

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 250741A1

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

13

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

15

190332A1

SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

17

1986982C1

PISTON

1шт.

18

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 25
