Запчасти Case 750H (08-08) - HYDRAULICS TILT CIRCUIT (08) - HYDRAULICS

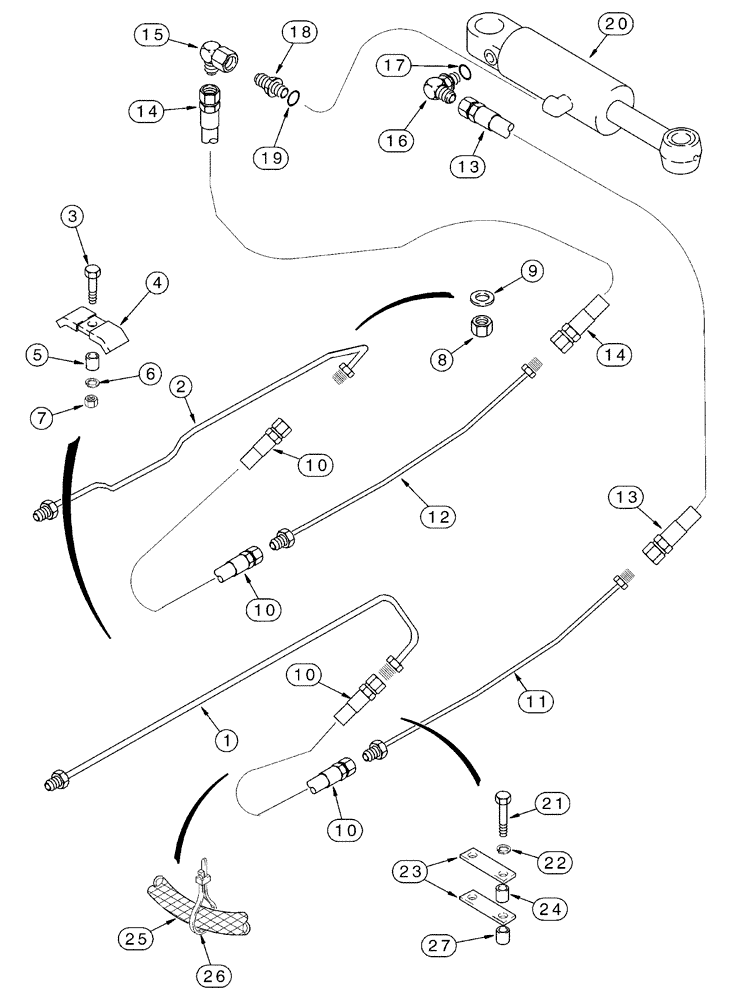

Схема запчастей Case 750H - (08-08) - HYDRAULICS TILT CIRCUIT (08) - HYDRAULICS
17
10
13
24
4
19
6
3
14
10
21
12
9
10
22
27
18
16
25
15
7
11
23
26
2
1
14
10
20
13
5
8

Артикул

Название

Примечание

Количество

Descending, Serial Range: Tubes-Cylinders

1шт.

1

364715A1

HYD TUBE

To Closed End of Cylinder

1шт.

2

364718A1

HYD TUBE

To Rod End of Cylinder

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

D138055

CLAMP

1шт.

5

D76208

SPACER

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

9

D35268

SHIM,1/32" Thk

2шт.

10

36443

HOSE

635 mm (25 inch)

2шт.

11

133674A1

TUBE

To Closed End of Cylinder

1шт.

12

133673A1

TUBE

To Rod End of Cylinder

1шт.

13

31-3032

HOSE ASSY.,12.7mm ID x 1257.3mm L

1257 mm (49-1/2 inch), To Closed End of Cylinder

1шт.

14

31-1253

HOSE ASSY.,12.7mm ID x 1193.8mm L, SAE 100R2

1194 mm (47 inch), To Rod End of Cylinder

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

D48030

CONNECTOR, ELEC

CONNECTOR , 3/4 fl x 7/8 Or, Includes 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Descending, Serial Range: Tubes-Cylinders

1шт.

20

117511A2

CYLINDER

89 ID x 148 mm strk, Tilt, See Page(s) 8-37

1шт.

20

412357A1R

REMAN-HYD CYLINDER

750H, Reman for New PN 117511A2

1шт.

20

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

21

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

123171A1

LARGE PLATE

PLATE, LARGE

2шт.

24

D36040

BUSHING

2шт.

25

142306A1

SLEEVE

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

27

123172A1

SPACER

2шт.

Выбрано товаров: 31
