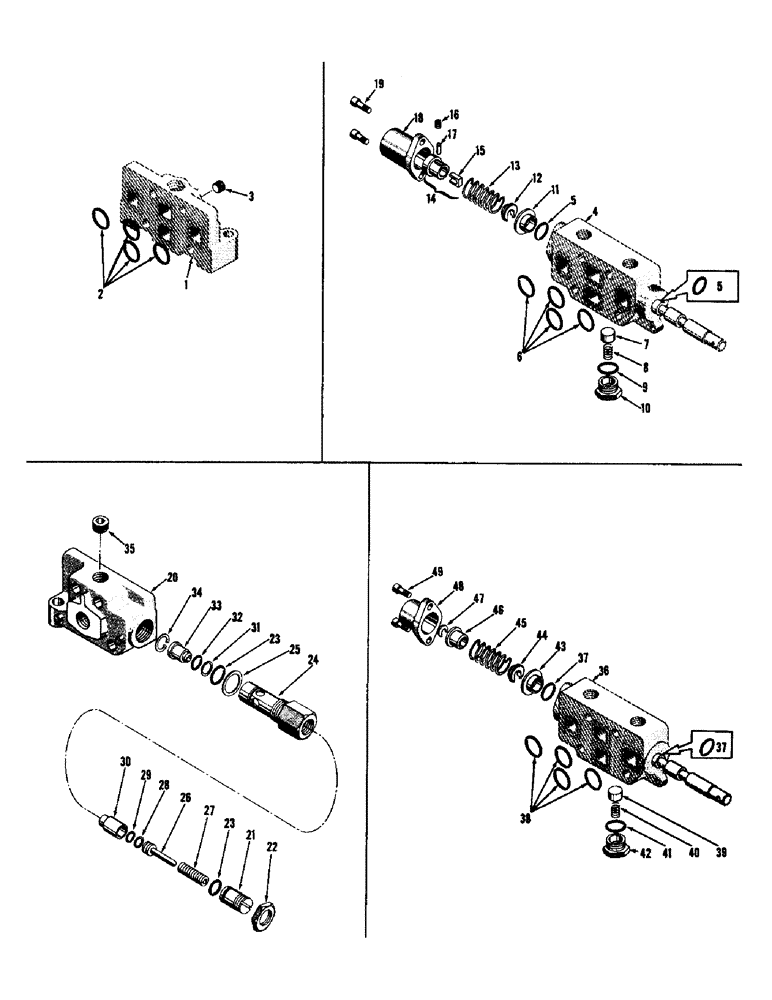

Запчасти Case 750 (132) - HYDRALIC VALVE SECTIONS (07) - HYDRAULIC SYSTEM

R14273

SECTION ASS'Y - end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY VALVE END SECTION

1шт.

2

R15403

SEAL - "O" ring

4шт.

3

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe

1шт.

R14275

SECTION ASS'Y - center

1шт.

4

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve

1шт.

5

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

6

R15403

SEAL - "O" ring

4шт.

7

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

8

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

9

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

10

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

11

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

12

16205

WASHER - spring retainer

1шт.

13

23127

SPRING

- valve

1шт.

14

R18158

GUIDE ASS'Y - spring

1шт.

15

23163

DECAL

CLIP - restriction

1шт.

16

23154

HYDRAULIC HOSE

SPRING

1шт.

17

38564

X

PIN - spiro

1шт.

18

73570

CAP & SLEEVE ASS'Y - valve

1шт.

19

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16 - 18 NC x 3/4 (73570 mtg.)

2шт.

R14276

SECTION ASS'Y - end

1шт.

20

R15423

BODY - valve end section

1шт.

R14175

CARTRIDGE ASS'Y - relief valve

1шт.

21

R12506

SCREW - spring adjusting

1шт.

22

R12507

LOCK NUT

- locking

1шт.

23

O8377AB

X

SEAL - "O" ring

2шт.

24

R12505

SHELL - cartridge

1шт.

25

23146

WASHER

- fibre

1шт.

26

R12508

PLUNGER - displacement

1шт.

27

23136

SPRING

- compression

1шт.

28

R12509

RING

- back-up

1шт.

29

O9787AB

X

SEAL - "O" ring

1шт.

30

R12510

SEAT

- floating

1шт.

31

R12512

OIL SEAL

RING - back-up

1шт.

32

O8416AB

X

SEAL - "O" ring

1шт.

33

R12511

POPPET

1шт.

34

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

35

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe 1 NPT

1шт.

R14274

SECTION ASS'Y - center

1шт.

36

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve

1шт.

37

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

38

R15403

SEAL - "O" ring

4шт.

39

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

40

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

41

23117

HYDRAULIC HOSE

SEAL - "O" ring

1шт.

42

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

43

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

44

16205

WASHER - spring retainer

1шт.

45

23127

SPRING

- valve

1шт.

46

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

47

16413

HOSE

- spring guide

1шт.

48

23115

HYDRAULIC HOSE

CAP - valve

1шт.

49

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16 - 18 NC x 3/4

2шт.
