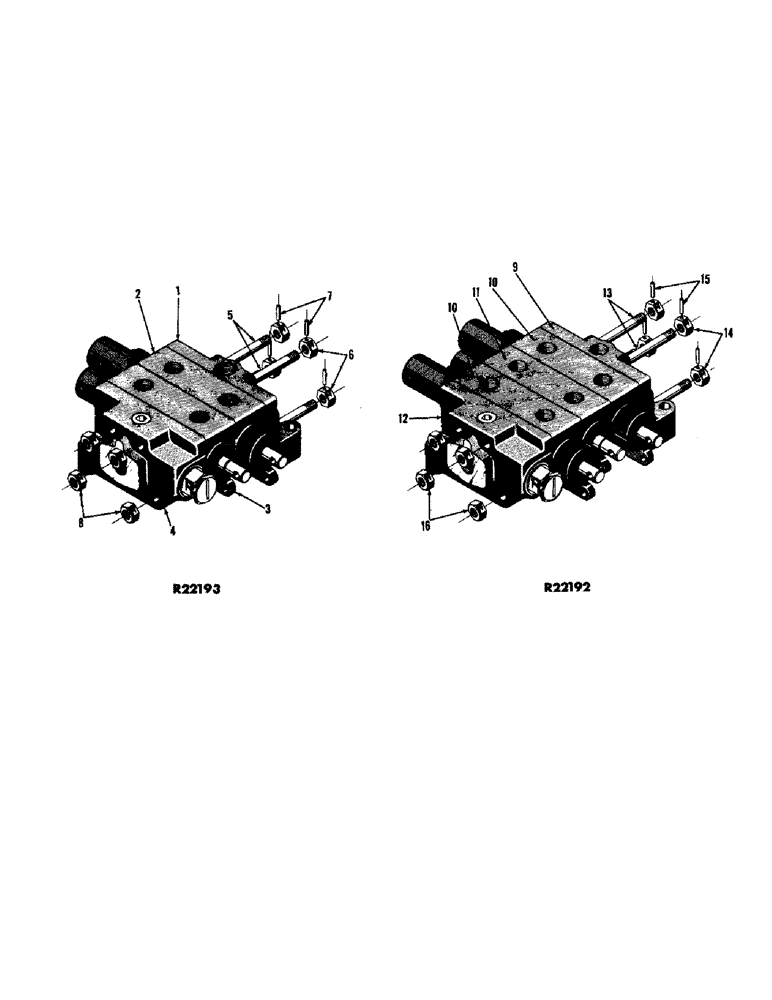

Запчасти Case 750 (130) - HYDRAULIC VALVE ASSEMBLIES (07) - HYDRAULIC SYSTEM

R22193

VALVE ASS'Y - hydraulic

1шт.

1

R14273

SECTION ASS'Y - end (See figure 132 for breakdown)

1шт.

2

R14275

SECTION ASS'Y - center (See figure 132 for breakdown)

1шт.

3

R14274

SECTION ASS'Y - center (See figure 132 for breakdown)

1шт.

4

R14276

SECTION ASS'Y - end (See figure 132 for breakdown)

1шт.

38574

PLUG

STUD ASS'Y - valve

4шт.

5

NSS

NOT SOLD SEPARAT

STUD (1/2 x 8-3/4)

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - hex drilled

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

8

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2 - 20 NF)

1шт.

R22192

VALVE ASS'Y - hydraulic

1шт.

9

R14273

SECTION ASS'Y - end (See figure 132 for breakdown)

1шт.

10

R14275

SECTION ASS'Y - center (See figure 132 for breakdown)

2шт.

11

R14274

SECTION ASS'Y - center (See figure 132 for breakdown)

1шт.

12

R14276

SECTION ASS'Y - end (See figure 132 for breakdown)

1шт.

38575

STUD ASS'Y - valve

4шт.

13

NSS

NOT SOLD SEPARAT

STUD (1/2 x 10-3/4)

1шт.

14

NSS

NOT SOLD SEPARAT

NUT - hex drilled

1шт.

15

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

16

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2 - 20 NF)

1шт.
