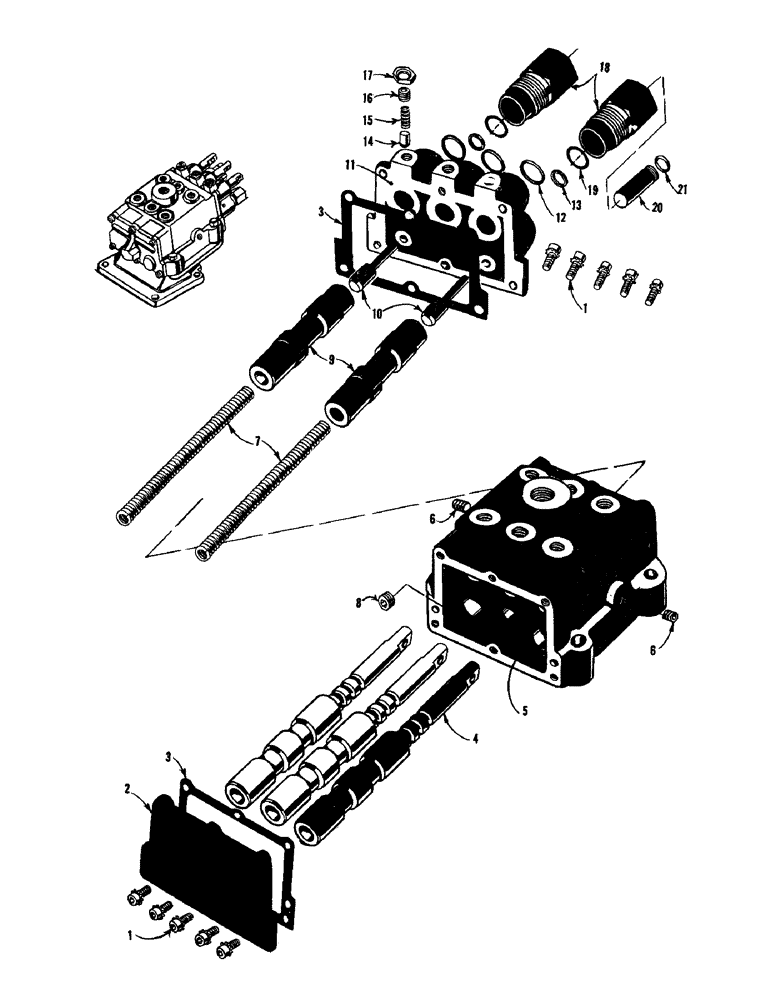

Запчасти Case 750 (128) - TRANSMISSION CONTROL VALVE (07) - HYDRAULIC SYSTEM

R20724

VALVE

ASS'Y - transmission control

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW & LOCK WASHER ASS'Y

11шт.

2

R21384

COVER

- valve rear

1шт.

3

35665

GASKET

- cover

1шт.

4

G107659

ROD

ASS'Y - push valve shift

3шт.

5

R21383

BODY - valve

1шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

- pipe 1/8 - 27 NPTF

2шт.

7

71125

SPRING

- brake valve

2шт.

8

221-42

X,Sltd, 1/4" NPT

PLUG - pipe 1/4 - 18 NPTF

1шт.

9

74916

SPOOL

VALVE ASS'Y - brake

2шт.

10

71141

ROD

- brake valve push

2шт.

11

R13941

COVER ASSY

COVER ASS'Y - valve front

1шт.

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

12

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

3шт.

13

51200266

SEAL

- shaft

2шт.

14

71120

VALVE

DETENT

3шт.

15

71119

SPRING

- detent

3шт.

16

178-653

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SHCS 3/8 - 16 NC x 3/8

3шт.

17

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

18

72989

X

HOUSING ASS'Y - brake valve piston

2шт.

NSS

NOT SOLD SEPARAT

HOUSING - brake valve piston

1шт.

19

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

1шт.

20

71129

X

PISTON - brake valve

2шт.

21

71131

RING

- quad

2шт.
