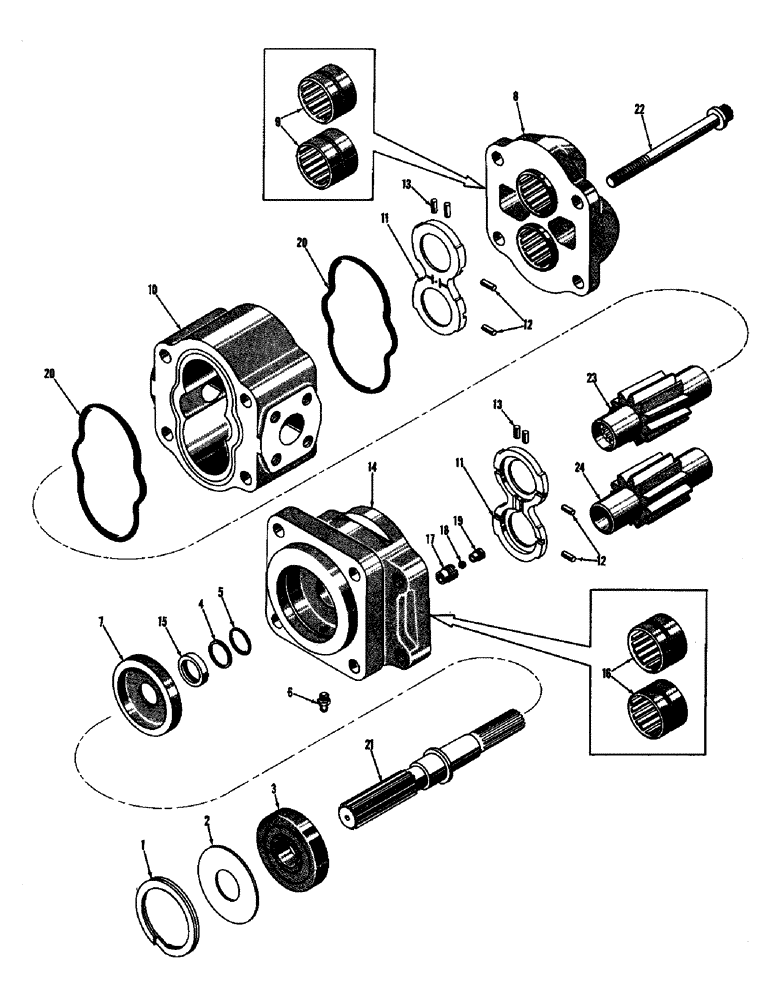

Запчасти Case 750 (126) - HYDRAULIC PUMP BODY, COVERS, GEARS, SHAFT & SEALS (07) - HYDRAULIC SYSTEM

R17615

PUMP ASS'Y - hydraulic

1шт.

R17615 - never set up in GPN. Per Mike Lisco dlr must order primes 7-12-99

1шт.

1

R22306

RING

- retaining

1шт.

2

R22305

SHIELD

- ball bearing

1шт.

3

R22304

BEARING - ball

1шт.

4

D26071

RING

- back-up

2шт.

5

D26072

X

SEAL - "O" ring

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

1шт.

7

R22308

SPACER - bearing

1шт.

8

R22312

COVER ASS'Y - port end

1шт.

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

9

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

10

R22309

HOUSING - gear

1шт.

11

D26077

LARGE PLATE

PLATE - thrust

2шт.

12

D26078

X

SEAL - pocket

8шт.

13

D26079

X

SEAL - pocket

2шт.

14

R22311

COVER ASS'Y - shaft end

1шт.

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

15

R22307

X

SEAL - oil

1шт.

16

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

17

71430

TOOL

SEAT - check valve

2шт.

18

VT4852

X

BALL - check

2шт.

19

71432

TOOL

RETAINER - check valve

2шт.

20

D26080

O-RING

SEAL - "O" ring

2шт.

21

R22310

SHAFT - pump drive

1шт.

22

166-97

12 PT SCREW,Flg, 1/2" - 13 x 4 1/2", Gr 8

CAP SCREW - ferry

4шт.

D26038

KIT - gear (Matched set)

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.
