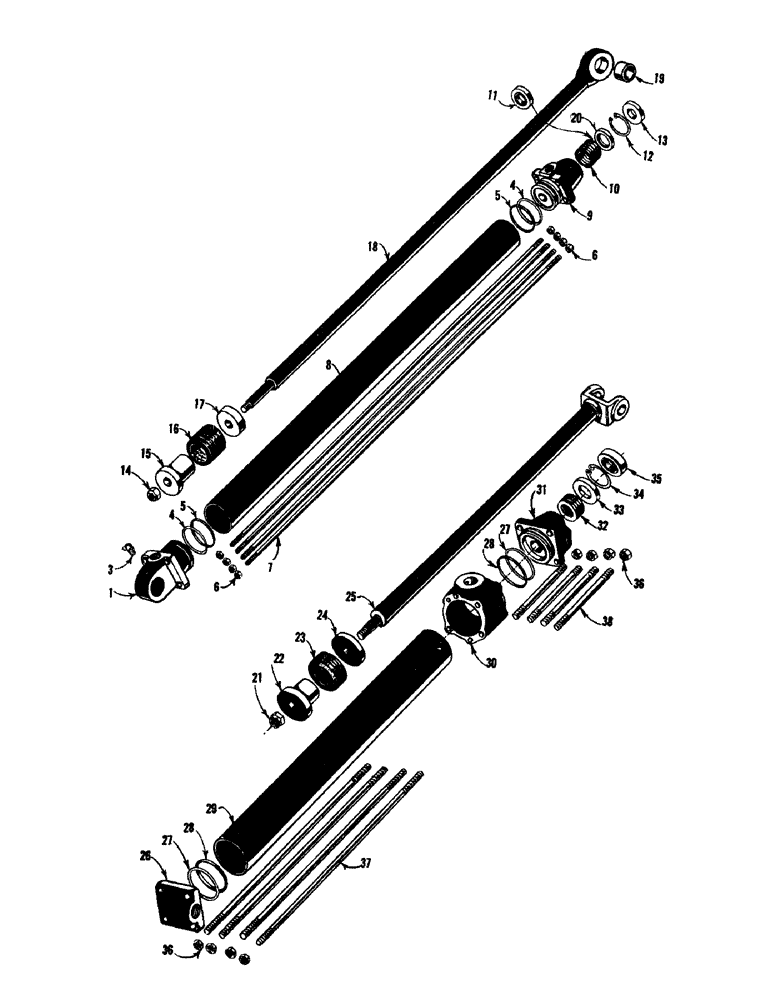

Запчасти Case 750 (124) - HYDRAULIC CYLINDER ASSY (07) - HYDRAULIC SYSTEM

R16404

CYLINDER ASS'Y - hydraulic (Dozer angling)

2шт.

1

R16363

CAP - cylinder end

1шт.

2

RESERVED

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

1шт.

4

D24985

RING

- back-up

2шт.

5

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

6

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

8шт.

7

R11449

ROD - tie

4шт.

8

R11448

TUBE - cylinder

1шт.

9

R16432

CAP - cylinder end

1шт.

10

17597

PACKING

- rod

1шт.

11

D23933

GLAND

SEAL - wiper

1шт.

12

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

13

R11450

RING - scraper

1шт.

14

131-152

HARDWARE

NUT - lock (3/4 - 16 NF)

1шт.

15

R14105

BLOCK - piston

1шт.

16

17598

PACKING

- piston

1шт.

17

R19907

WASHER - retainer

1шт.

R20744

END YOKE & PISTON ASS'Y

1шт.

18

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

19

R13096

BUSHING

1шт.

20

D23962

SEAL

1шт.

R19898

CYLINDER ASS'Y - hydraulic (Dozer lift)

2шт.

21

R12337

NUT

- lock

1шт.

22

R14106

BLOCK ASSY.

BLOCK - piston

1шт.

23

31662

PACKING

- piston

1шт.

24

R19908

WASHER

- retainer

1шт.

25

R19901

CLEVIS & PISTON ROD ASS'Y

1шт.

26

R11657

CAP - cylinder end

1шт.

27

D24986

RING

- back-up

2шт.

28

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

29

R19900

TUBE - hydraulic cylinder

1шт.

30

R11394

TRUNNION - cylinder

1шт.

31

R16434

CAP

- cylinder end

1шт.

32

17577

PACKING

- rod

1шт.

33

D25042

WASHER

- packing

1шт.

34

70742

WASHER

2.50", Int, #250

1шт.

35

17583

WIPER SEAL

- wiper

1шт.

36

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

8шт.

37

R19903

ROD - tie

4шт.

38

R19904

ROD - tie

4шт.
