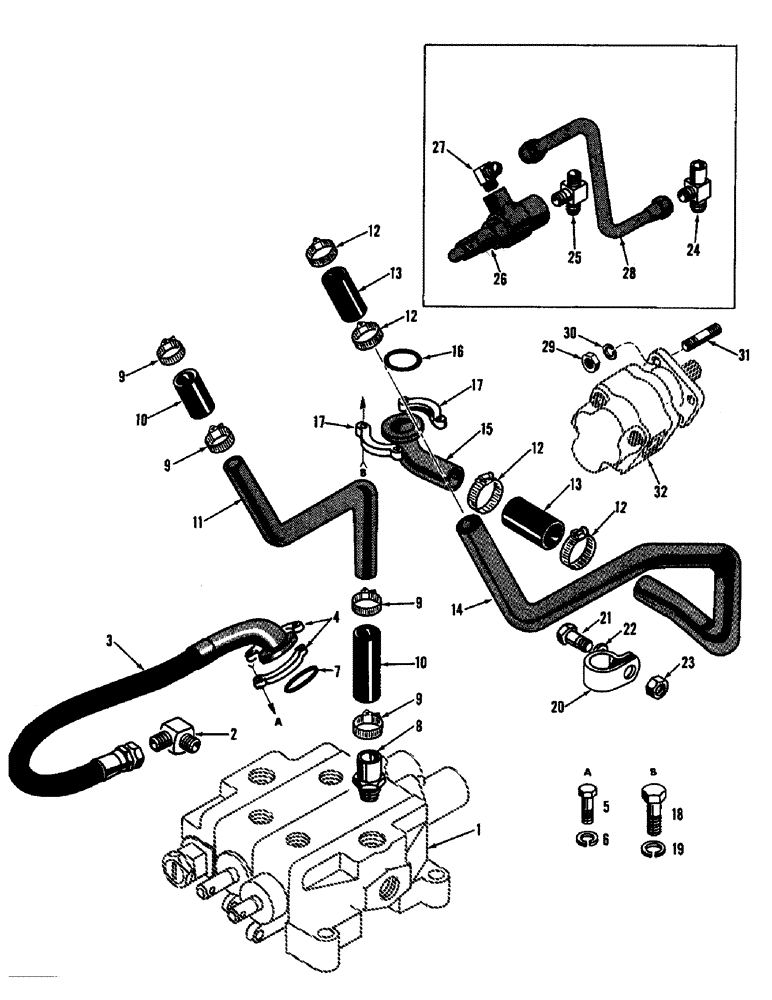

Запчасти Case 750 (116) - PRIMARY HYDRAULIC SYSTEM - DOZER, LOADER, & RIPPER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY - hydraulic (See figure 130 for breakdown)

1шт.

2

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

Special

1шт.

3

R22214

HOSE

ASSY

1шт.

4

R21078

X

FLANGE HALF - clamp split

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R21078 mtg.)

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

A7560P

SEAL - "O" ring

1шт.

8

R22203

CONNECTOR - straight

1шт.

9

49766

AUGER

CLAMP - hose

4шт.

10

R14171

HOSE

Low pressure

2шт.

11

R22223

TUBE - return (Dozer only)

1шт.

R22224

TUBE - return (Loader only)

1шт.

12

49763

X

CLAMP - hose

4шт.

13

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

Low pressure

2шт.

14

R22212

TUBE - suction

1шт.

15

R22213

FITTING - "O" ring flange

1шт.

16

A12139

O-RING

SEAL

1шт.

17

R19609

X

FLANGE HALF - clamp split

2шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

(R19609 mtg.)

4шт.

19

92-7

LOCK WASHER,7/16"

4шт.

20

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

Tube (R22212 mtg.)

1шт.

21

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(R14098 mtg.)

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

25-115

NUT,5/16"-24, G5

Reg. SF

1шт.

24

R22215

FITTING - special (Loader only)

1шт.

25

R22216

FITTING - special (Loader only)

1шт.

26

R17539

VALVE ASSY - relief (See figure. 130 for breakdown) (Loader only)

1шт.

27

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

(Loader only)

1шт.

28

R22221

TUBE ASSY (Loader only)

1шт.

29

25-118

NUT,1/2"-20, G5

Reg. SF hex

4шт.

30

92-8

LOCK WASHER,1/2"

4шт.

31

46522

SLEEVE

STUD - 1/2 - 13/20 x 2-1/8 (Pump mtg.)

4шт.

32

R17615

PUMP ASSY - hydraulic (See figure 126 for breakdown)

1шт.
