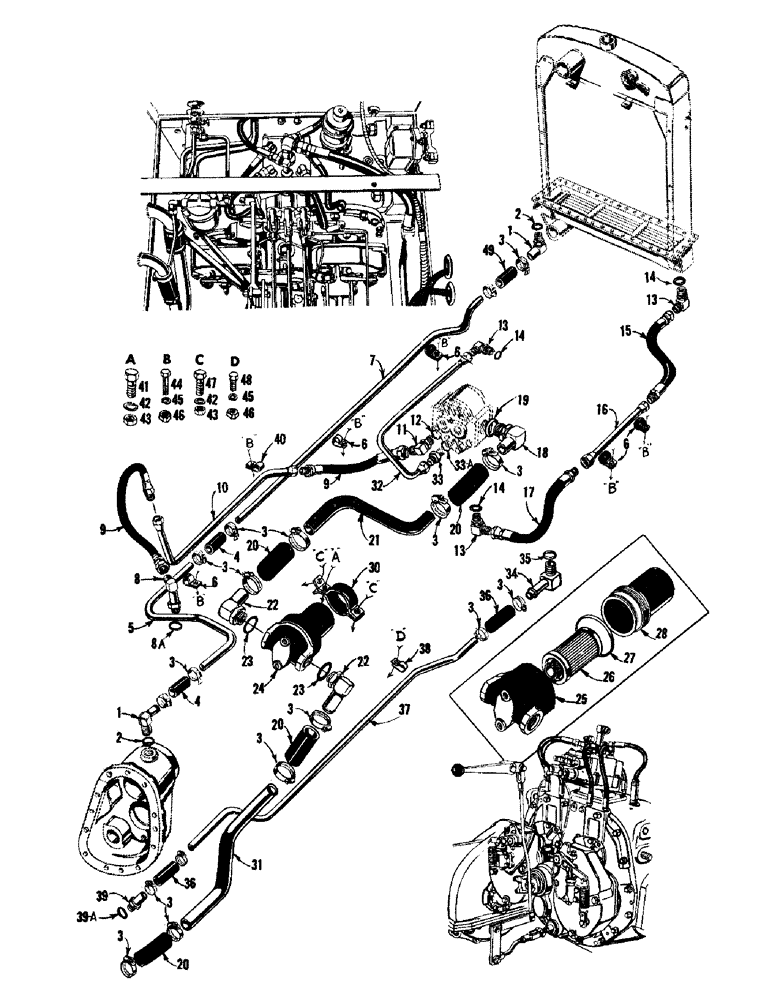

Запчасти Case 750 (070) - HYDRAULICS - FILTER, TUBING, HOSES & FITTINGS (07) - HYDRAULIC SYSTEM

1

R20916

FITTING

ELBOW - 90 degrees special

2шт.

39a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

3

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

18шт.

4

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Low Pressure 19.00 mm ID x 76.20 mm, SAE 100R3

2шт.

5

R20716

TUBE -, Serial Range: trans.-radiator

1шт.

6

49855

CLAMP

- tube

5шт.

7

R20715

TUBE -, Serial Range: trans.-radiator

1шт.

8

R20894

FITTING

ELBOW - 90 degrees adjustable, long

1шт.

8a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not shown

1шт.

9

R20840

HOSE ASS'Y

2шт.

10

R20801

TUBE ASS'Y -, Serial Range: conv.-trans.

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees adjustable

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

3шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

15

R19858

HOSE

ASS'Y - torque, Serial Range: converter-radiator

1шт.

16

R20713

TUBE ASS'Y - torque, Serial Range: converter-radiator

1шт.

17

R21133

HOSE ASS'Y - torque, Serial Range: converter-radiator

1шт.

18

R19872

ELBOW - 90 degrees special

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

R14171

HOSE

- low pressure

4шт.

21

R21555

TUBE - filter to torque converter

1шт.

22

R20712

ELBOW - 90 degrees special

2шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

R19878

FILTER ASS'Y - hydraulic

1шт.

25

R20643

HEAD - filter

1шт.

26

R4213

FILTER, ELEMENT

KIT - filter element

1шт.

27

O10021AB

X

SEAL - "O" ring

1шт.

28

R20645

HOUSING

- filter

1шт.

29

RESERVED

1шт.

30

R20186

BRACKET - filter mounting

2шт.

31

R20717

TUBE -, Serial Range: filter-trans.

1шт.

32

R20243

TUBE ASS'Y - pump to torque converter

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

33a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

34

R19864

SUN VISOR

ELBOW - 90 degrees special

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

36

R20848

LARGE HOSE

HOSE - low pressure

2шт.

37

R20718

TUBE - trans. to torque converter

1шт.

38

NLS

NO LONGER SERVICED

- tube

1шт.

39

R20711

CONNECTOR, ELEC

CONNECTOR - straight

1шт.

40

R13773

COLLAR CLAMP

CLAMP - tube

1шт.

41

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R20186 mtg.)

1шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

4шт.

44

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(49855 mtg.) Hex, 5/16"-24 x 1 1/4", G5

5шт.

45

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

46

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

6шт.

47

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (R20186 mtg.)

3шт.

48

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(49854 mtg.) Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

49

R21518

LARGE HOSE

HOSE - low pressure

1шт.
