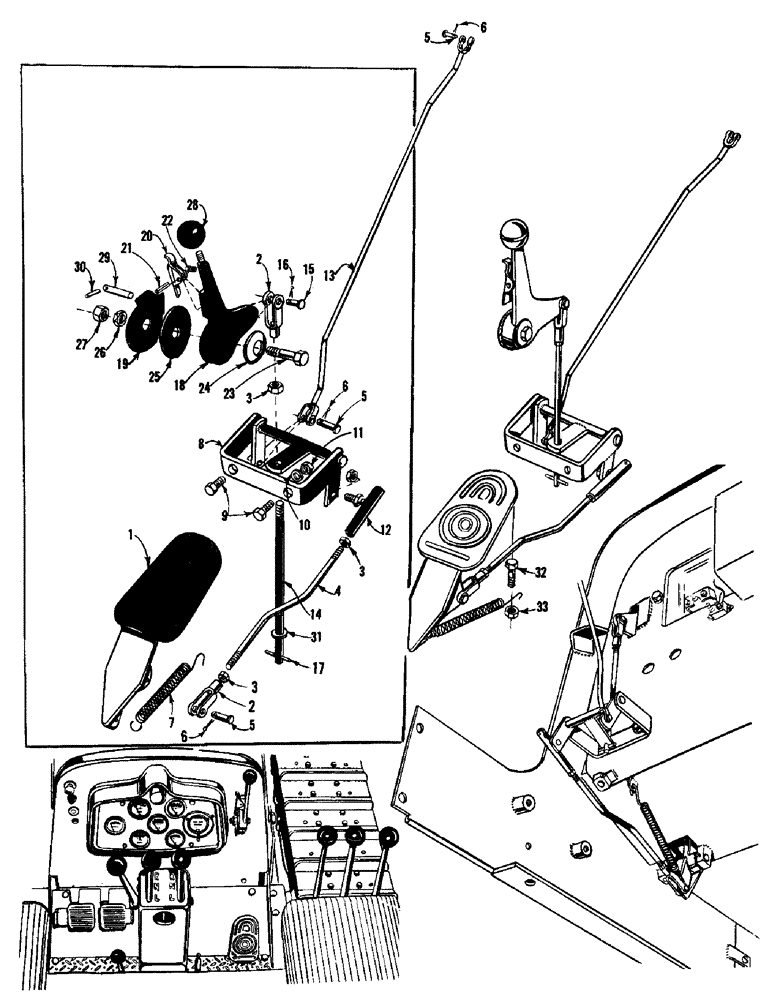

Запчасти Case 750 (046) - ACCELERATOR, HAND THROTTLE, & LINKAGE (07) - HYDRAULIC SYSTEM

1

34828

PEDAL - accelerator

1шт.

2

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

2шт.

3

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

3шт.

4

R19547

ROD - foot pedal

1шт.

5

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

3шт.

6

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

7

11469

SPRING

- pedal return

1шт.

8

R18242

BRACKET accelerator linkage

1шт.

9

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS 3/8 - 24 NF x 7/8 (R18242 mtg.)

2шт.

10

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- ref. SF hex (3/8 - 24 NF)

2шт.

12

R19552

JOINT - ball

1шт.

13

R19557

ROD - injection pump

1шт.

14

R19548

ROD - hand throttle

1шт.

15

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

16

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

R18721

LEVER ASS'Y - throttle

1шт.

19

R18706

LEVER - throttle

1шт.

20

A8011

LOCK - throttle shut-off

1шт.

21

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, 3/16" x 11/16", Slotted

1шт.

22

A8012

SPRING

- throttle block

1шт.

23

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2 - 20 NF x 2 (R18721 mtg.)

1шт.

24

R14771

WASHER

- belleville

1шт.

25

R15071

DISC

- friction

1шт.

26

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam (1/2 - 20 NF)

1шт.

27

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

1шт.

28

70213

KNOB

BALL - grip

1шт.

29

71044

LOCK

SHAFT - throttle pivot

1шт.

30

49871

X

PIN - lock

1шт.

31

95-6

WASHER,3/8"

1шт.

32

14-402

HHCS 1/2 - 20 NF x 2 (Accelerator stop)

1шт.

33

25-158

JAM NUT,Jam, 1/2"-20, G5

- lock (1/2 - 20 NF)

1шт.
