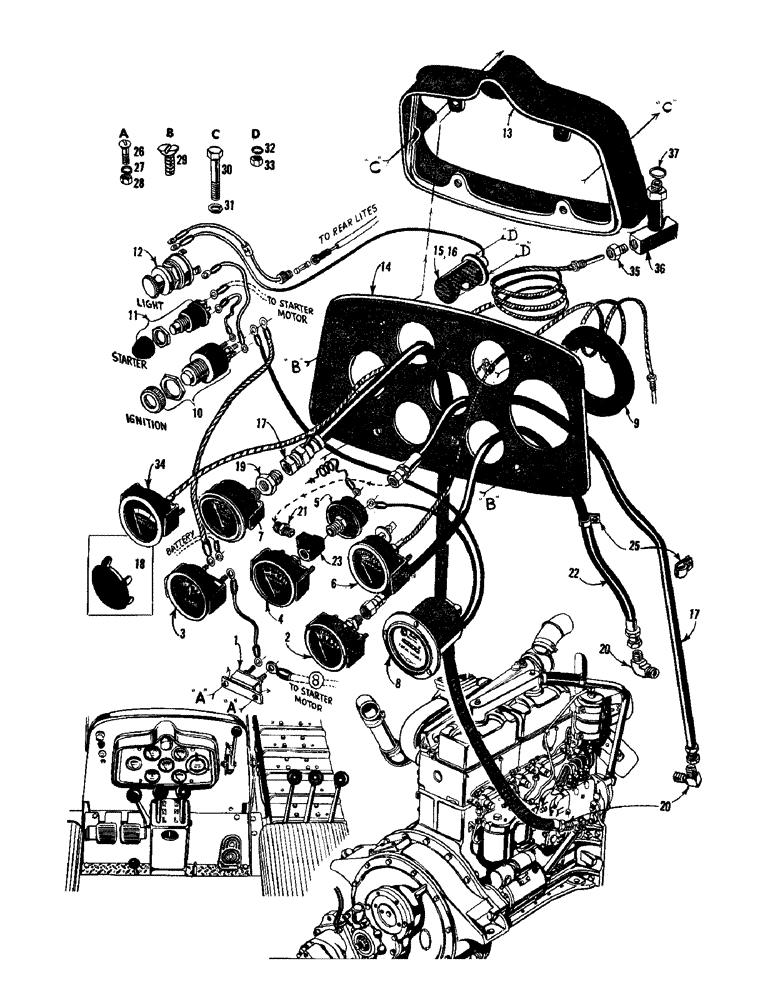

Запчасти Case 750 (044) - DASH, GAUGES, SWITCHES, & INSTRUMENTS (07) - HYDRAULIC SYSTEM

1

R19141

BREAKER

- circuit

1шт.

2

R15953

GAUGE

- torque converter oil pressure

1шт.

3

R18748

AMMETER

GAUGE - ammeter

1шт.

4

R15952

GAUGE - engine oil pressure

1шт.

5

10953

SWITCH - pressure

1шт.

6

R18807

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

7

R15955

X

GAUGE - transmission oil pressure

1шт.

8

R18745

METER - engine hours

1шт.

9

R18744

DAMPER

DAMPENER - vibration

1шт.

10

10868

SWITCH - ignition

1шт.

11

NLS

NO LONGER SERVICED

SWITCH - push button starter

1шт.

12

10855

X

SWITCH - light

1шт.

13

R13048

MOUNT - instrument panel

1шт.

14

R18981

PANEL - instrument

1шт.

15

R19896

LAMP

LIGHT - dash

1шт.

16

R19897

BULB

- dash light

1шт.

17

R20634

HOSE ASSY.

HOSE ASS'Y - oil pressure gauges

2шт.

18

30842

SPARE PART

PLUG - button

1шт.

19

222-741

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT Fem

ADAPTER - special, 1/8 NP to 7/16 - 20 NF

1шт.

20

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Special 90º, 7/16"-20, 45º Fl x 1/8" NPT

3шт.

21

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

ADAPTER - special, 1/8 NP to 7/16 - 20 NF

1шт.

22

R20636

FLEXIBLE HOSE

HOSE ASS'Y - oil pressure gauge

1шт.

23

217-10

TEE,1/8" - 27 NPTF Fem

- female, 1/8 NP

1шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- hose

2шт.

25

49838

CLAMP

- hose

2шт.

26

174-77

RHMS #8-36 x 1/2 (R19141 mtg.)

2шт.

27

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

28

225-14208

NUT,#8-36

- hex (#8 - 36)

2шт.

29

R20124

SCREW

THMS 1/4 - 28 NF x 1/2 (R18981 mtg.)

4шт.

30

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd (R13048 mtg.)

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

33

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex jam (5/8 - 18 NF)

1шт.

R4289

TORQUE CONVERTOR TEMPERATURE GAUGE INSTALLATION (Optional)

1шт.

34

R15126

X

GAUGE - torque convertor temperature

1шт.

35

R21496

ADAPTER

- special

1шт.

36

R21495

TEE ASS'Y - special

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
