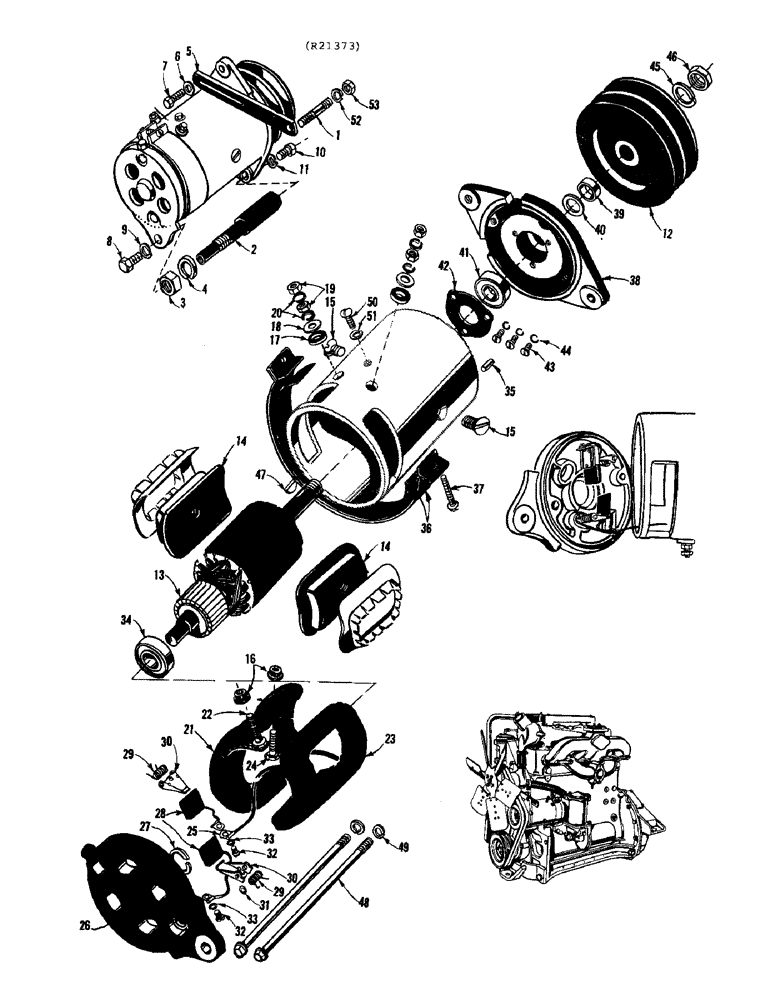

Запчасти Case 750 (042) - (R21373) GENERATOR ASSY. (07) - HYDRAULIC SYSTEM

1

A7391

STUD

3/8 - 16/24 x 2-1/4 (A21108 mtg.)

1шт.

2

A26683

CARRIER - generator

1шт.

3

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4 - 16 NF)

1шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

A21108

STRAP

- generator adjusting

1шт.

6

195-25

WASHER,3/8"

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(R21373 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (R21373 mtg.)

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 23/8 - 24 NF x 1-1/4 (R21373 mtg)

1шт.

11

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

R21114

PULLEY

- generator

1шт.

R21373

GENERATOR ASS'Y

1шт.

13

R21591

ARMATURE

1шт.

14

R15075

POLE SHOE

2шт.

15

R15076

SCREW - pole shoes

2шт.

16

R15077

X

INSULATOR - terminal

2шт.

17

R15078

WASHER - ins. terminal stud

2шт.

18

R15079

WASHER

- plain, terminal stud

2шт.

19

129-18

NUT,#12-24

- terminal stud

4шт.

20

R15080

TOOTH

WASHER - lock, terminal stud

4шт.

21

R15081

FIELD COIL - LH

1шт.

22

R15084

X

STUD - terminal

1шт.

23

R15083

COIL

FIELD COIL - RH

1шт.

24

R15084

X

STUD - terminal

1шт.

25

R15085

CLIP -, Serial Range: terminal-brush

1шт.

26

R15086

FUNNEL

FRAME - c.e. and brush holder ass'y

1шт.

27

R15087

RING - bearing retainer

1шт.

R4286

BRUSH, COMMUTATOR

KIT - brush

1шт.

28

R15088

BRUSH, COMMUTATOR

BRUSH

2шт.

29

R15089

SPRING - brush

2шт.

30

R15090

ARM

- brush

2шт.

31

R15091

WASHER - space, brush arm

2шт.

32

R15232

SCREW - brush lead attaching

2шт.

33

R15093

X

WASHER - lock, brush lead attaching

2шт.

34

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, c.e.

1шт.

35

R15095

PIN - dowel, c.e. and d.e.

2шт.

36

R15096

BAND - cover

1шт.

37

R15097

SCREW - cover band

1шт.

38

R21592

FRAME - d.e.

1шт.

39

R21916

COLLAR - space, d.e.

1шт.

40

R21594

WASHER - space, d.e.

1шт.

41

R21595

BEARING

- ball, d.e.

1шт.

42

R21596

PLATE - ball bearing retainer, d.e.

1шт.

43

R15102

SCREW - ball bearing retainer plate attaching

3шт.

44

R15040

X

WASHER - lock, attaching screw

3шт.

45

R21597

WASHER

- lock, shaft nut

1шт.

46

R21915

NUT - shaft

1шт.

47

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

48

R15106

BOLT

- thru

2шт.

49

R15070

WASHER - lock, thru bolt

2шт.

50

R15107

SCREW - frame

1шт.

51

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Frame 1/4"

1шт.

52

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

53

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam (3/8 - 24 NF)

1шт.
