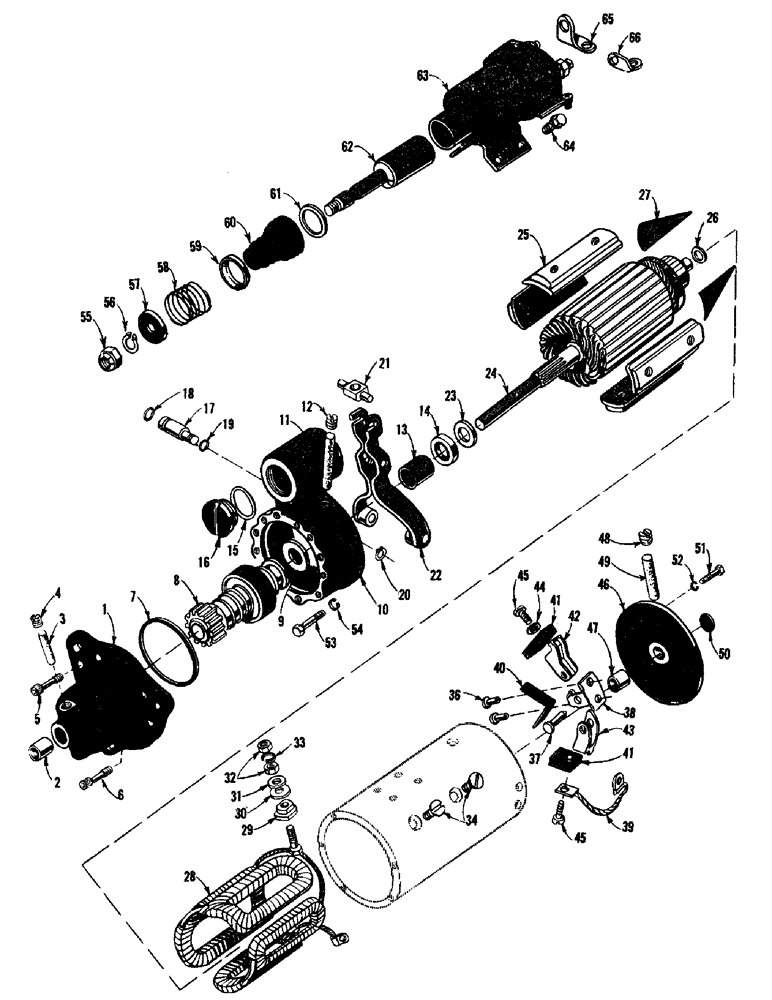

Запчасти Case 750 (038) - STARTER ASSY. (07) - HYDRAULIC SYSTEM

R20745

STARTER ASS'Y

1шт.

1

R21560

HOUSING - drive

1шт.

2

R21561

X

BUSHING

1шт.

3

R15023

WICK

- oil

1шт.

4

R15022

PLUG - pipe

1шт.

5

R21565

X

SHCS 5/16 - 18 NC x 1-1/2 (R21560 mtg.)

5шт.

6

R21566

SHCS 5/16 - 18 NC x 7/8 (R21560 mtg.)

1шт.

7

R21562

GASKET

- drive hsg.

1шт.

8

R21589

DRIVE

ASS'Y - motor

1шт.

9

R15145

DISC

WASHER - brake

1шт.

10

R21579

HOUSING

- lever

1шт.

11

R21581

X

WICK - oil

1шт.

12

R15022

PLUG - pipe

1шт.

13

R21580

BUSHING

1шт.

14

R21582

OIL SEAL

- oil

1шт.

15

R21588

GASKET

1шт.

16

R21587

PLUG

1шт.

17

R21464

GASKET

SHAFT

1шт.

18

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

SEAL - "O" ring

1шт.

19

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

SEAL - "O" ring

1шт.

20

R21575

X

RING - snap

1шт.

21

R21577

X

GUIDE

1шт.

22

R21563

X

LEVER

1шт.

23

R21583

WASHER

- spacer

1шт.

24

R21556

X

ARMATURE

1шт.

25

R15115

SHOE

- pole

4шт.

26

R15036

WASHER - spacer

1шт.

27

R15018

X

INSULATOR

2шт.

28

R21557

COIL ASSY.

COIL ASS'Y - field

1шт.

29

R15010

BUSHING

- ins. terminal stud

1шт.

30

R15011

WASHER

- ins. terminal stud

1шт.

31

R15013

WASHER

- plain

1шт.

32

R15014

NUT

- terminal stud

2шт.

33

R15012

WASHER - lock

1шт.

34

R15009

SCREW - pole shoe

8шт.

R15029

BRUSH

KIT - brush support

2шт.

36

NSS

NOT SOLD SEPARAT

RIVET

2шт.

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: (Optional-rivet)

2шт.

NSS

NOT SOLD SEPARAT

WASHER - lock (Optional to rivet)

2шт.

NSS

NOT SOLD SEPARAT

NUT, Serial Range: (Optional-rivet)

2шт.

37

NSS

NOT SOLD SEPARAT

PIN - brush

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

39

NSS

NOT SOLD SEPARAT

LEAD - ground

1шт.

40

R15025

SPRING

- brush

2шт.

R4285

BRUSH, COMMUTATOR

KIT - brush

1шт.

41

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

42

R21590

HOLDER

- brush (Insulated)

2шт.

43

R15026

X

HOLDER - brush (Ground)

2шт.

44

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

45

R18195

SCREW - brush attaching

4шт.

46

R21559

FRAME

- commutator end

1шт.

47

R15020

BUSHING

1шт.

48

R15022

PLUG - pipe

1шт.

49

R15023

WICK

1шт.

50

R15021

PLUG

- expansion

1шт.

51

R21578

SCREW

HHCS (R21559 mtg.)

4шт.

52

R15033

X

WASHER - lock

4шт.

53

R21584

HHCS 1/4 - 28 NF x 1 (R21579 mtg.)

5шт.

54

R21585

X

WASHER - lock

5шт.

55

R21586

X

NUT - jam

1шт.

56

R21575

X

RING - snap

1шт.

57

R21571

RETAINER

- spring

1шт.

58

R21569

X

SPRING

1шт.

59

R21572

RETAINER

- spring

1шт.

60

R21576

BOOT

1шт.

61

R21570

WASHER

- retainer

1шт.

62

R21568

PLUNGER

1шт.

63

R21567

SWITCH

SOLENOID

1шт.

64

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

& LOCKWASHER ASS'Y

4шт.

65

R21558

CONNECTOR -, Serial Range: terminal-switch

1шт.

66

R15161

CONNECTOR, ELEC

CONNECTOR

1шт.
