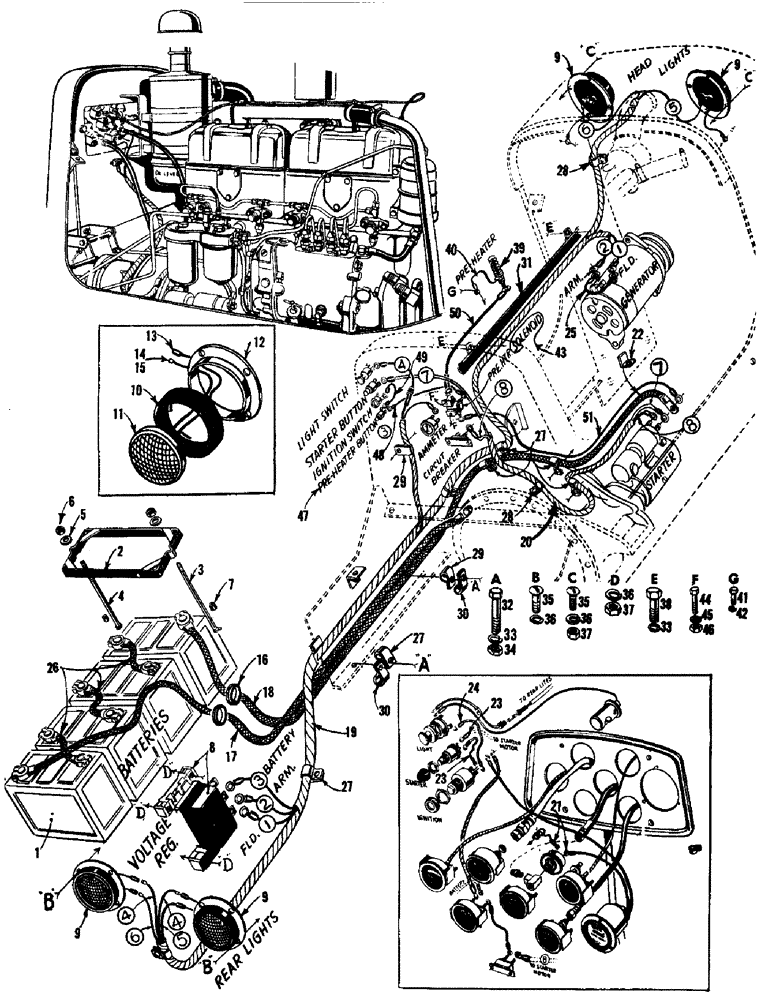

Запчасти Case 750 (036) - STARTER, GENERATOR, WIRING, BATTERIES, & LIGHTS (07) - HYDRAULIC SYSTEM

1

R19455

SPARE PART BATTERY - dry type (6V)

4шт.

2

R19283

SPARE PART Battery

4шт.

3

R20618

STUD - special, 5/16 - 18 NC x 9-1/4

4шт.

4

15-5148

BOLT

RHMS 5/16 - 18 NC x 9-1/4

4шт.

5

195-21

WASHER,5/16"

8шт.

6

131-4

LOCK NUT,5/16"-18, GB

8шт.

7

G46096

RETAINER

BUSHING - rubber, battery frame bolt

8шт.

8

R12764

X

REGULATOR - voltage

1шт.

9

R17309

LAMP

ASSY - tail

2шт.

R17308

LAMP

ASSY - head

2шт.

10

R16888

X

RETAINER

1шт.

11

R16790

X

LAMP

1шт.

12

NSS

NOT SOLD SEPARAT

FRAME

1шт.

13

R17305

WIRE

1шт.

14

R17303

WIRE (Head light only)

1шт.

15

R17304

WIRE (Head light only)

1шт.

16

REF

INSTRUCTION

GROMMET - battery box (See figure 88, ref. #23)

2шт.

17

R13793

CABLE

Battery, ground

1шт.

18

R14556

CABLE

Battery, hot

1шт.

19

R20616

ELECTRICAL WIRE

WIRE HARNESS

1шт.

20

R20617

HARNESS - wiring

1шт.

21

NLS

NO LONGER SERVICED

TERMINAL

2шт.

22

74939

SCREW

CLIP - terminal

1шт.

23

71214

INSERT

WIRE Jumper

2шт.

24

71280

WIRE - jumper

1шт.

25

74937

WIRE - jumper

1шт.

26

72176

CABLE

Jumper

3шт.

27

49836

CLAMP

Wiring

6шт.

28

49838

CLAMP

Wiring

2шт.

29

49852

PTO SHAFT

Wiring

2шт.

30

51200320

CLAMP

Wiring

2шт.

31

A7532

SPARE PART Wiring

1шт.

32

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49836, 49852, & 49891 mtg.)

2шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

25-115

NUT,5/16"-24, G5

Reg. SF hex

2шт.

35

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

(R17309 and R17308 mtg.)

16шт.

36

193-28

LOCK WASHER,Int Tooth, 1/4"

20шт.

37

25-104

NUT,1/4"-20, G5

12шт.

38

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(A7532 mtg.)

2шт.

R3994

SPARE PART PRE-HEATER INSTALLATION (Optional)

1шт.

39

R14552

SPARE PART HEATER - manifold, 24 volt

1шт.

40

R19417

CABLE

Ground

1шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(R19417 mtg.)

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

R14553

SOLENOID - heater, 24 volt

1шт.

44

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

(R14553 mtg.)

2шт.

45

92-4

LOCK WASHER,1/4"

2шт.

46

25-114

NUT,1/4"-28, G5

Reg. SF hex

2шт.

47

71195

BUTTON - starter

1шт.

48

R16067

WIRE - jumper

1шт.

49

R16073

WIRE - jumper

1шт.

50

R19419

SPARE PART CABLE - pre-heater

1шт.

51

R19418

CABLE - solenoid

1шт.

49836

CLAMP

Wire (Not shown)

1шт.
