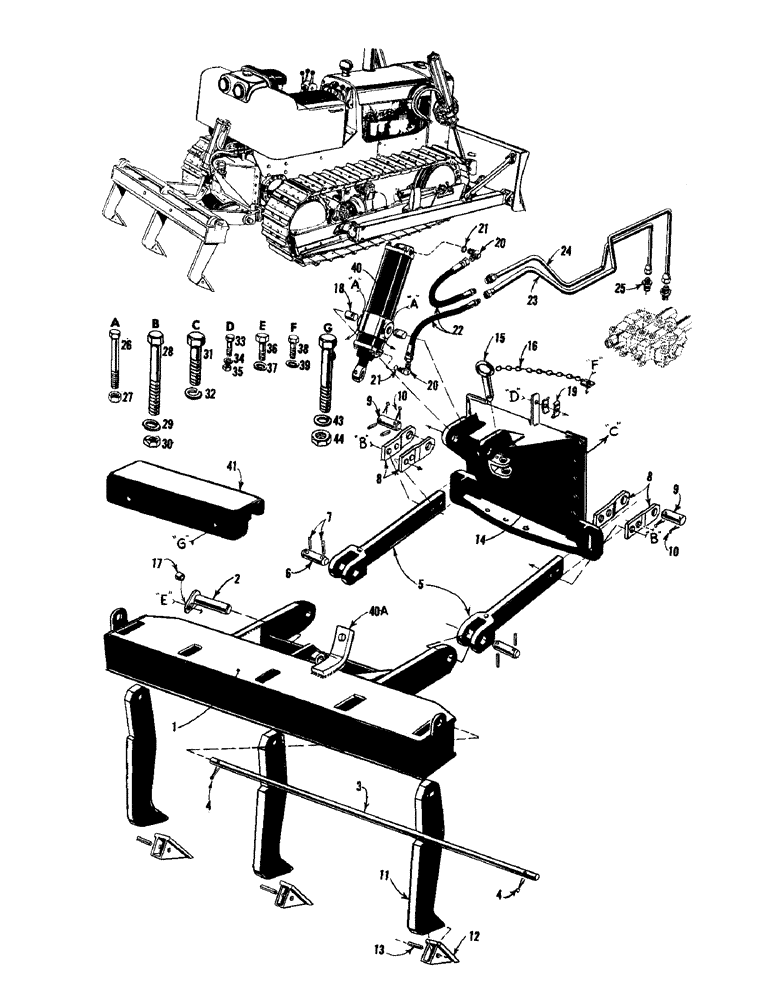

Запчасти Case 750 (114) - RIPPER FRAME, CYLINDERS, WEIGHTS, & HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

R19498

FRAME ASS'Y - ripper

1шт.

2

R16245

PIN ASS'Y

1шт.

3

R17652

ROD - teeth holding

1шт.

4

132-152

PIN

- cotter

2шт.

5

R17654

ARM ASS'Y - ripper

2шт.

6

73592

AXLE PIN

PIN

2шт.

7

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

8

R16194

END - ripper

4шт.

9

R16243

PIN - pivot clamp

2шт.

10

132-156

PIN

- cotter

4шт.

R17659

TOOTH ASS'Y - ripper

3шт.

11

R17501

SHANK - tooth

1шт.

12

74172

TOOTH

- ripper

1шт.

13

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

PIN, 1/2" x 2 1/4", Slotted

1шт.

14

R19494

PLATE ASS'Y - backing

1шт.

15

72101

PIN ASS'Y

1шт.

16

35393

AXLE-SHAFT, ARTICULA

CHAIN

1шт.

17

D23740

BUSHING

1шт.

18

70333

PIN

2шт.

19

R16916

CLAMP

2шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Special 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

36547

HOSE

ASS'Y

2шт.

23

R22210

TUBE ASS'Y

1шт.

24

R17299

TUBE ASS'Y

1шт.

25

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 3/4 NP

2шт.

26

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS 3/8 - 24 NF x 4-1/2 (R16739 mtg.)

2шт.

27

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock

2шт.

28

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS 3/4 - 16 NF x 3 (R16194 mtg.)

4шт.

29

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

30

25-1112

NUT,3/4"-16, G5

- reg. SF hex

4шт.

31

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(R19494 mtg.) Hex, 5/8"-18 x 1 1/2", G5

10шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

33

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R16916 mtg.) Hex, 5/16"-24 x 1 1/4", G5

1шт.

34

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

35

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

36

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (R16245 mtg.)

1шт.

37

195-33

WASHER,1/2"

- plain

1шт.

38

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(35393 mtg.) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

39

95-5

WASHER,3/8" x 7/8" x .083"

- plain

1шт.

40

R16739

X

CYLINDER ASS'Y - hydraulic (See figure 120 for breakdown)

1шт.

40a

R19989

BRACKET - latch

1шт.

R3582

RIPPER COUNTERWEIGHT INSTALLATION

1шт.

41

R17728

WEIGHT

1шт.

42

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS 1 - 14 NF x 5-1/2 (R17728 mtg.)

2шт.

43

195-53

WASHER,1" x 2" x .134"

- plain

2шт.

44

131-370

LOCK NUT

NUT - lock

2шт.
