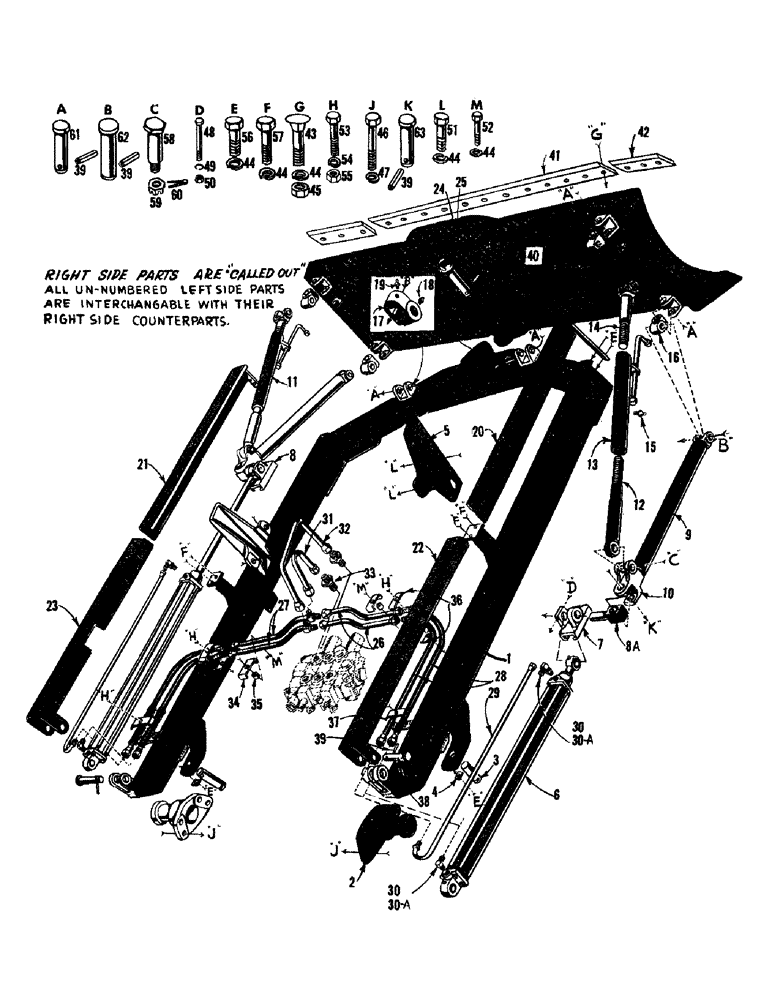

Запчасти Case 750 (108) - ANGLEDOZER FRAME, MOLDBOARD, CYLINDERS, & HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

R20212

"C" FRAME ASS'Y

1шт.

2

R17602

BRACKET - dozer attaching

2шт.

3

R11461

PIN - trunnion

2шт.

4

R16747

RETAINER - trunnion pin

2шт.

5

R18648

BRACKET - rub

2шт.

6

R16404

CYLINDER ASS'Y - hydraulic (See figure 124 for breakdown)

2шт.

7

R11510

BRACKET - slide, RH

1шт.

8

R11509

BRACKET - slide, LH

1шт.

8a

R11460

PIN - strut

2шт.

9

R11454

STRUT ASS'Y - lower

2шт.

10

R11455

BRACKET - strut

2шт.

11

R11476

STRUT ASS'Y - upper

2шт.

12

R11445

SCREW ASS'Y - strut

1шт.

13

R20304

TURNBUCKLE ASS'Y - strut

1шт.

14

R11447

SCREW ASS'Y - strut grease, 1/8 NP

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

1шт.

16

38023

UNIVERSAL - dozer

4шт.

17

R12319

UNIVERSAL - dozer

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.

20

R19634

GUARD ASS'Y - piston rod, RH

1шт.

21

R19633

GUARD ASS'Y - piston rod, LH

1шт.

22

R19472

GUARD ASS'Y - cylinder, RH

1шт.

23

R19471

GUARD ASS'Y - cylinder, LH

1шт.

24

R21151

PIN ASS'Y

1шт.

25

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

26

R20678

TUBE ASS'Y - valve to angling cylinder

2шт.

27

R20680

TUBE ASS'Y - valve to angling cylinder

2шт.

28

R20683

HOSE ASS'Y - valve to angling cylinder

4шт.

29

R17263

TUBE ASS'Y - valve to angling cylinder

2шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Assy, Special 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

4шт.

30a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

R17259

TUBE ASS'Y - valve to angling cylinder

1шт.

32

R22206

TUBE ASS'Y - valve to angling cylinder

1шт.

33

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 3/4 NP

2шт.

34

R17393

CLAMP - hose

2шт.

35

R17394

SPACER - tube clamp

2шт.

36

R16917

CLAMP - hose

4шт.

37

R16916

CLAMP - hose

4шт.

38

R20868

PIN ASS'Y

2шт.

39

R15710

LINCH PIN

PIN - lock

16шт.

40

R19486

MOLDBOARD ASS'Y

1шт.

41

70725

BLADE - center cutting

1шт.

42

R18821

BLADE - end cutting

2шт.

43

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2 - 13 NC x 1-3/4 (Cutting blade mtg.)

28шт.

44

92-8

LOCK WASHER,1/2"

40шт.

45

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2 - 13 NC)

28шт.

46

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4 - 16 NF x 2-3/4 (R17602 mtg.)

8шт.

47

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

48

14-652

SCREW,Hex, 3/8" - 24 x 3 1/4", Gr 5

HHCS 3/8 - 24 NF x 3-1/4 (R11460 mtg.)

2шт.

49

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

50

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

2шт.

51

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4 - NF x 2-1/4 (R18648 mtg.)

4шт.

52

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS 1/2 - 20 NF x 2-1/4 (R17393 mtg.)

2шт.

53

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16 - 24 NF x 2 (R16916 mtg.)

4шт.

54

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

55

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

56

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (R19634 & R19633 mtg.)

6шт.

57

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (Hydraulic guard mtg.)

4шт.

58

38025

SPARE PART

BOLT - strut

2шт.

59

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex castle (3/4 - 16 NF)

2шт.

60

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

61

38068

PIN

6шт.

62

38067

PIN

6шт.

63

R18872

PIN

ASS'Y

2шт.
