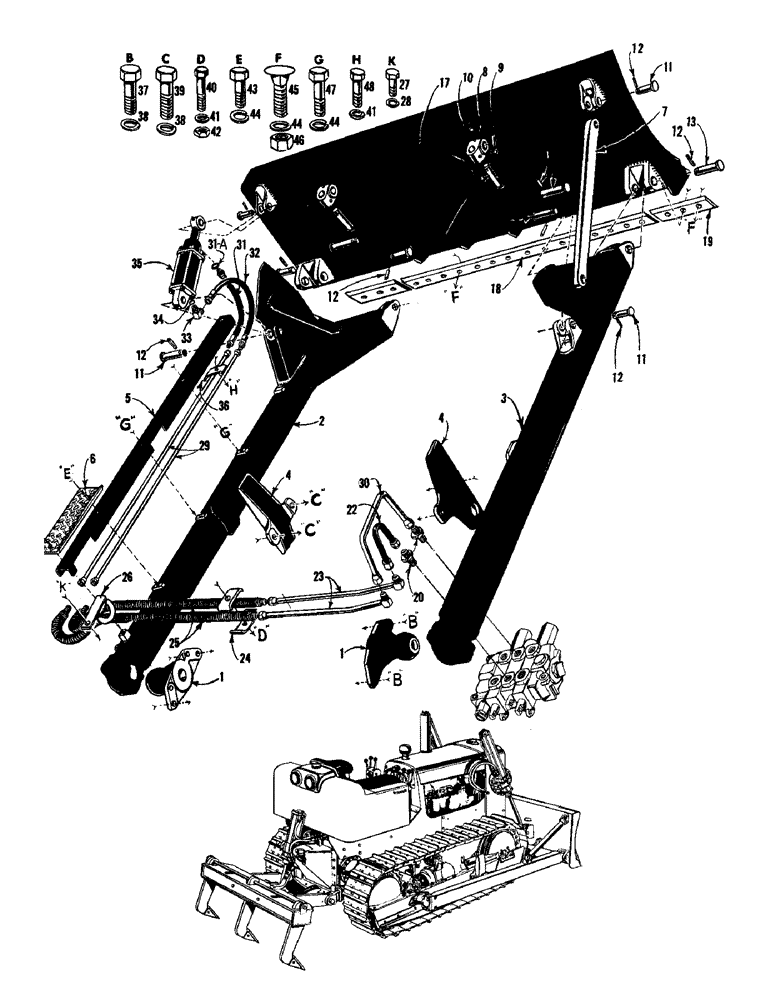

Запчасти Case 750 (106) - BULLDOZER FRAME, MOLDBOARD, CYLINDERS, & HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

R18645

TRUNNION

- push

2шт.

2

R20493

BEAM ASS'Y - push, LH

1шт.

3

R20494

BEAM ASS'Y - push, RH

1шт.

4

70377

BRACKET - rub

2шт.

5

R19828

GUARD ASS'Y - tube

1шт.

6

74751

PLATE - step

1шт.

7

R22050

STRUT ASS'Y - tilt

1шт.

8

R12319

UNIVERSAL - dozer

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

11

R18870

PIN

4шт.

12

R15710

LINCH PIN

PIN - lock

12шт.

13

R18868

X

PIN

2шт.

14

38068

PIN

2шт.

15

R18872

PIN

2шт.

16

38067

PIN

2шт.

17

R19818

MOLDBOARD ASS'Y - dozer

1шт.

18

17808

X

BLADE - center cutting

1шт.

19

16042

EDGE

BLADE - end cutting

2шт.

20

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 3/4 NP

2шт.

21

RESERVED

1шт.

22

R17259

TUBE ASS'Y - valve to crown cylinder

1шт.

23

R20696

TUBE ASS' Y - valve to crown cylinder

2шт.

24

R16917

CLAMP - tube

2шт.

25

R20595

HOSE ASS'Y - valve to crown cylinder

2шт.

26

R19648

GUIDE - hose

1шт.

27

14-814

HHCS 1/2 - 20 NF x 3/4 (R19648 mtg.)

1шт.

28

92-8

LOCK WASHER,1/2"

1шт.

29

R20245

TUBE ASS'Y - valve to crown cylinder

2шт.

30

R22206

TUBE ASS'Y - valve to crown cylinder

1шт.

31

R20598

HOSE ASS'Y - valve to crown cylinder

1шт.

31a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

36695

HOSE ASS'Y - valve to crown cylinder

1шт.

33

R20839

FITTING

ELBOW - restrictor

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

R20528

CYLINDER ASS'Y - hydraulic (See figure 120 for breakdown)

1шт.

36

R16916

CLAMP - tube

1шт.

37

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4 - 16 NF x 2-3/4 (R18645 mtg.)

8шт.

38

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

39

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4 - 16 NF x 2-1/4 (70377 mtg.)

4шт.

40

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16 - 24 NF x 2 (R16917 mtg.)

1шт.

41

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

43

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2 - 20 NF x 1-3/4 (74751 mtg.)

2шт.

44

92-8

LOCK WASHER,1/2"

27шт.

45

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2 - 13 NC x 1-3/4 (Cutting edge mtg.)

22шт.

46

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2 - 13 NC)

22шт.

47

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R19828 mtg.)

3шт.

48

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R16916 mtg.) Hex, 5/16"-24 x 1 1/4", G5

1шт.
