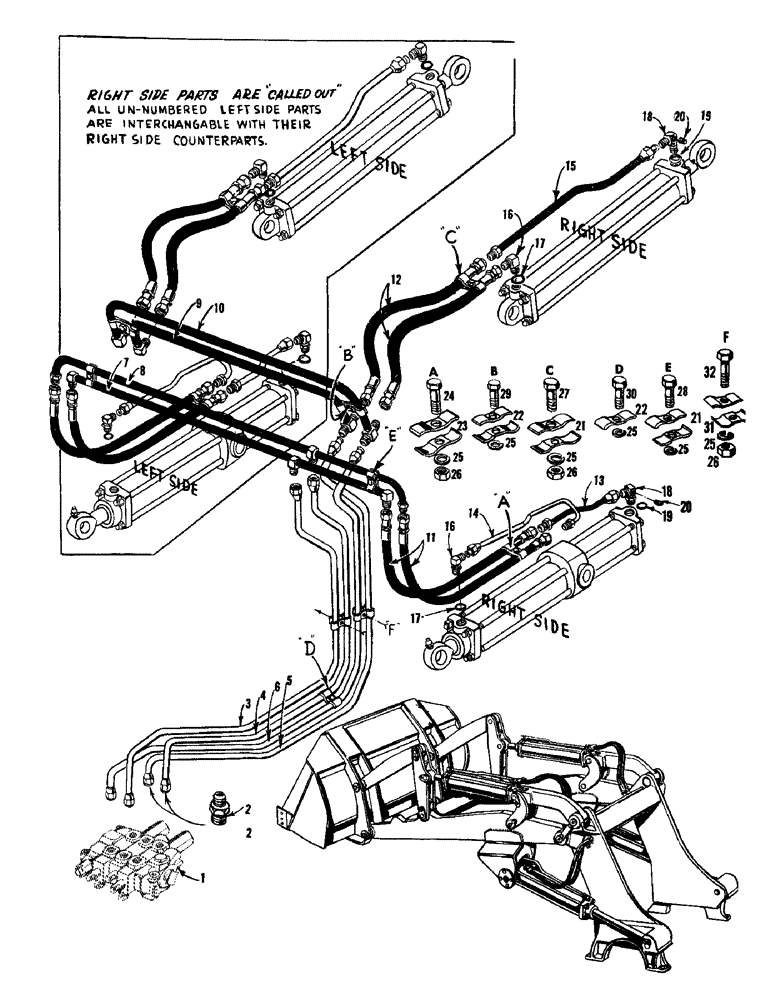

Запчасти Case 750 (102) - REAR HINGE LOADER HYDRAULIC TUBES, HOSES, & FITTINGS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

VALVE ASS'Y - hydraulic (See figure #68, ref. 43)

1шт.

2

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Male, 3/4 JIC to 3/4 NP

4шт.

3

R22195

TUBE ASSY - valve to lift manifold

1шт.

4

R19807

TUBE ASSY - valve to lift manifold

1шт.

5

R21196

TUBE ASSY - valve to dump manifold

1шт.

6

R22225

TUBE ASSY - valve to dump manifold

1шт.

7

R19791

TUBE ASSY - lift cylinder manifold

1шт.

8

R19796

TUBE ASSY - lift cylinder manifold

1шт.

9

R19801

TUBE ASSY - dump cylinder manifold

1шт.

10

R19803

TUBE ASSY - dump cylinder manifold

1шт.

11

R19794

HOSE ASSY.

Manifold to left cylinders

4шт.

12

R22187

SPARE PART ASSY - manifold to dump cylinders

4шт.

13

R17177

TUBE ASSY - manifold to left cylinders

2шт.

14

R17153

TUBE ASSY - manifold to lift cylinders

2шт.

15

R16927

TUBE ASSY - manifold to dump cylinders

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Special

6шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

R19576

FITTING

ELBOW - 90 degrees special

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

221-11

PLUG,Sq Hd, 1/8"-27

Pipe, ext. NP

2шт.

21

R16916

SPARE PART CLAMP - hose

8шт.

22

R16917

CLAMP - tube

5шт.

23

R15257

CLAMP

Hose

4шт.

24

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(73089 mtg.)

2шт.

25

92-5

LOCK WASHER,5/16"

11шт.

26

25-115

NUT,5/16"-24, G5

Reg. SF hex

6шт.

27

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

(R16916 mtg.)

2шт.

28

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

(R16916 mtg.)

2шт.

29

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R16917 mtg.)

2шт.

30

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(R16917 mtg.)

1шт.

31

R17319

CLAMP

Tube

4шт.

32

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R17319 mtg.)

2шт.
