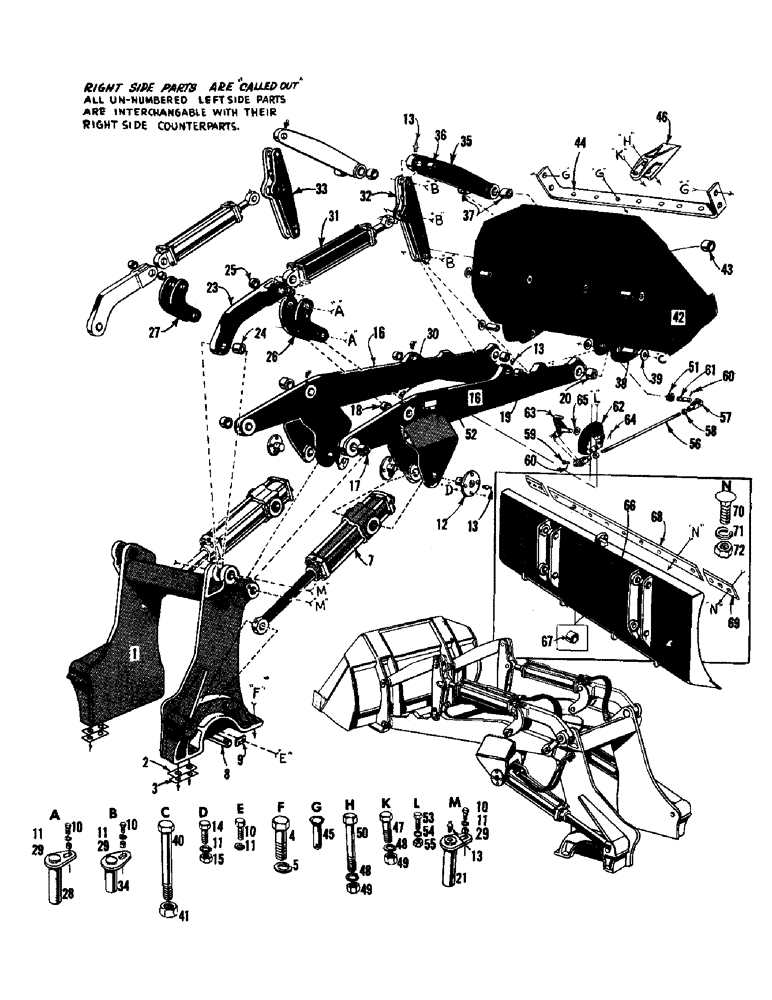

Запчасти Case 750 (098) - REAR HINGE LOADER FRAME, ARMS, BUCKET & MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R19147

FRAME ASS'Y - main

1шт.

2

R19943

SHIM - main frame

1шт.

3

R19942

SHIM - main frame

1шт.

4

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS 1- 14 NF x 2-1/2 (R19147 mtg.)

8шт.

5

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.

6

RESERVED

1шт.

7

R19790

CYLINDER ASS'Y - hydraulic (See page #20 for breakdown)

2шт.

8

R15687

PIN

2шт.

9

R15656

KEEPER - pin

2шт.

10

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (R15656 mtg.)

18шт.

11

92-8

LOCK WASHER,1/2"

18шт.

12

R17152

PIN ASS'Y

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

12шт.

14

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R17152 mtg.)

16шт.

15

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

16шт.

16

R19619

FRAME ASS"Y - lift

1шт.

17

R15652

BUSHING

2шт.

18

R15790

BUSHING

2шт.

19

R15789

BUSHING

2шт.

20

R13421

BUSHING

2шт.

21

R21847

PIN ASS"Y

4шт.

22

RESERVED

1шт.

23

R19616

LEVER ASS'Y - leveling

2шт.

24

R15652

BUSHING

1шт.

25

72973

BUSHING

2шт.

26

R19602

LEVER ASS'Y - RH

1шт.

27

R19601

LEVER ASS'Y - LH

1шт.

28

R15288

PIN ASS'Y

4шт.

29

D23740

BUSHING

14шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

31

R19458

CYLINDER ASS'Y - hydraulic (See figure 122 for breakdown)

2шт.

32

R19598

LEVER ASS'Y - RH

1шт.

33

R19597

LEVER ASS'Y - LH

1шт.

34

R15718

PIN ASS'Y

6шт.

35

R15900

ARM ASS'Y - dump

2шт.

36

R13421

BUSHING

1шт.

37

R15789

BUSHING

2шт.

38

R19659

PIN

- bracket

4шт.

39

72915

GASKET

- special

8шт.

40

14-12140

BOLT,Hex, 3/4" - 16 x 8-3/4", Gr 5

HHCS 3/4 - 16 NF x 8-3/4 (Bucket mtg.)

4шт.

41

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4 - 16 NF)

4шт.

R19767

BUCKET ASS'Y - with teeth

1шт.

42

R19164

BUCKET ASS'Y - less teeth

1шт.

43

R19660

BUSHING

8шт.

44

R19159

X

BLADE - cutting

1шт.

45

46-828

RIVET,Csk, 1/2" x 1 3/4"

- countersunk head, 1/2 dia. x 1-3/4

22шт.

46

R18261

X

TOOTH - bucket

6шт.

47

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2 - 20 NF x 2 (R18261 mtg.)

6шт.

48

92-8

LOCK WASHER,1/2"

12шт.

49

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 SF)

12шт.

50

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

HHCS 1/2 - 20 NF x 2-3/4 (R18261 mtg.)

6шт.

R4220

BUCKET INDICATOR INSTALLATION (Optional)

1шт.

51

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

1шт.

52

R21164

PLATE - mtg.

1шт.

53

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8 - 24 NF x 1-/4 (74056 mtg.)

2шт.

54

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

55

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

2шт.

56

R21165

ROD - operating

1шт.

57

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

58

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam (3/8 - 24 NF)

2шт.

59

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

60

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

61

74061

STUD

1шт.

62

74056

SPARE PART

CASTING - indicator

1шт.

63

74057

POINTER - indicator

1шт.

64

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

65

195-33

WASHER,1/2"

- plain

1шт.

R20442

MOLDBOARD ASS'Y FOR LOADER ARMS (Optional)

1шт.

66

R20159

MOLDBOARD ASS'Y

1шт.

67

R19660

BUSHING

8шт.

68

17808

X

BLADE - cutting

1шт.

69

16042

EDGE

BLADE - end cutting

2шт.

70

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2 - 13 NC x 1-3/4 (Cutting blade mtg.)

22шт.

71

92-8

LOCK WASHER,1/2"

22шт.

72

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2 - 13 NC)

22шт.
