Запчасти Case 750 (094) - COUNTERWEIGHT & MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

R3575

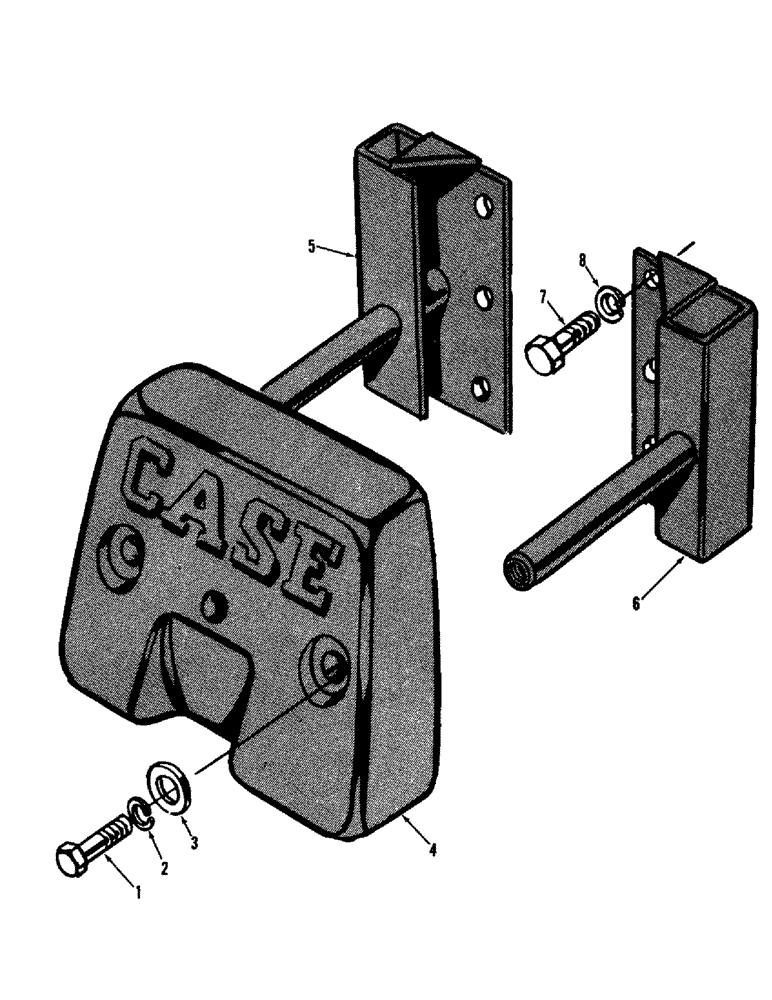

COUNTERWEIGHT INSTALLATION (Optional equipment)

1шт.

1

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4 - 16 NF x 2-1/2 (R17606 mtg.)

2шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

R17607

WASHER

- special

2шт.

4

R17606

COUNTERWEIGHT

1шт.

5

R17613

BRACKET ASS'Y - LH counterweight attaching

1шт.

6

R17614

BRACKET ASS'Y - RH counterweight attaching

1шт.

7

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(R17613 & R17614 mtg.) Hex, 5/8"-18 x 1 1/2", G5

8шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
